🧾 Overview

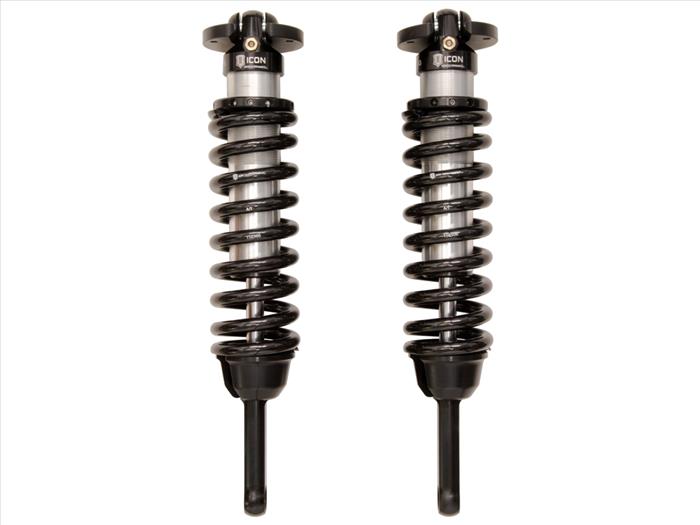

The ICON V.S. 2.5 Internal Reservoir Front Coilover Kit is a premium suspension upgrade for 2005–2023 Toyota Tacoma models. Designed with vehicle-specific shock length and valving, it delivers improved ride control on-road and increased confidence off-road while supporting larger wheel and tire combinations.
Lift height is adjustable from 0–3.5” on 2005–2015 models and 0–2.75” on 2016–2023 models. The 2.5” shock body and ICON engineered coil springs provide increased damping capability and improved wheel travel over stock components.
✔ Adjustable front lift height
✔ Vehicle-specific tuned valving
✔ 2.5” internal reservoir shock body
✔ Increased wheel travel and ride quality
✔ Fully rebuildable and re-tunable
🛠 Installation
- Direct bolt-on installation using factory mounting locations.
- Ride height must be set prior to final torque.
- Alignment required after installation.
- Suspension should be cycled to verify clearance at full droop and compression.
📌 Specs
- Key Features & Benefits
- Vehicle-Specific Valving – Tuned specifically for Tacoma platform
- Height Adjustable – 0–3.5” or 0–2.75” depending on model year
- 2.5” Shock Body – Increased oil capacity and damping precision
- Internal Reservoir Design – Clean, durable configuration
- ICON Engineered Coil Springs – Platform-matched spring rates
- Increased Wheel Travel – Improved articulation over stock
- 6061 CNC Machined Aluminum Components – Strength and corrosion resistance
- CAD Plated Shock Bodies – Long-term durability
- 7/8” Induction Hardened Shaft – Strength under aggressive use
- FK Rod End Bearings – Reduced deflection and extended service life
- Fully Rebuildable & Re-Tunable – Long-term serviceability
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5
- Shock Type: Internal Reservoir Coilover
- Position: Front
- Lift Height (2005–2015): 0–3.5”
- Lift Height (2016–2023): 0–2.75”
- Lift Height (TRD Pro 2017–2023): 0–1.25”
- Shock Body Diameter: 2.5”
- Shaft Diameter: 7/8”
- Spring Type: ICON Engineered Coil Spring
- Serviceable: Yes – Rebuildable & Re-Tunable
- Installation Type: Bolt-On
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components
- (2) ICON V.S. 2.5 Internal Reservoir Front Coilover Shocks
- Pre-installed ICON engineered coil springs
- Mounting Components
- Application-specific mounting hardware
- If you provide the exact ICON part number, I can verify whether spanner wrench and additional hardware components are included for 100% box accuracy.
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Toyota Tacoma (2005–2023)
- Not compatible with 2005–2015 2WD 5-Lug models.
⚠️ Fitment Notes
- 2005–2015 Tacoma:
- Lift range 0–3.5” over stock
- 2016–2023 Tacoma:
- Lift range 0–2.75” over stock
- 2017–2023 TRD Pro Models:
- Lift range 0–1.25” over stock
- 33” x 11.50” tires recommended. Fender trimming required. Larger tires may require additional modifications.
- Bump Stop Spacer Kit (PN 51045) can be installed to increase preload 0.25” beyond maximum setting.
- 700 lb/in Expedition coil option available for heavier equipped vehicles.
