🧾 Overview

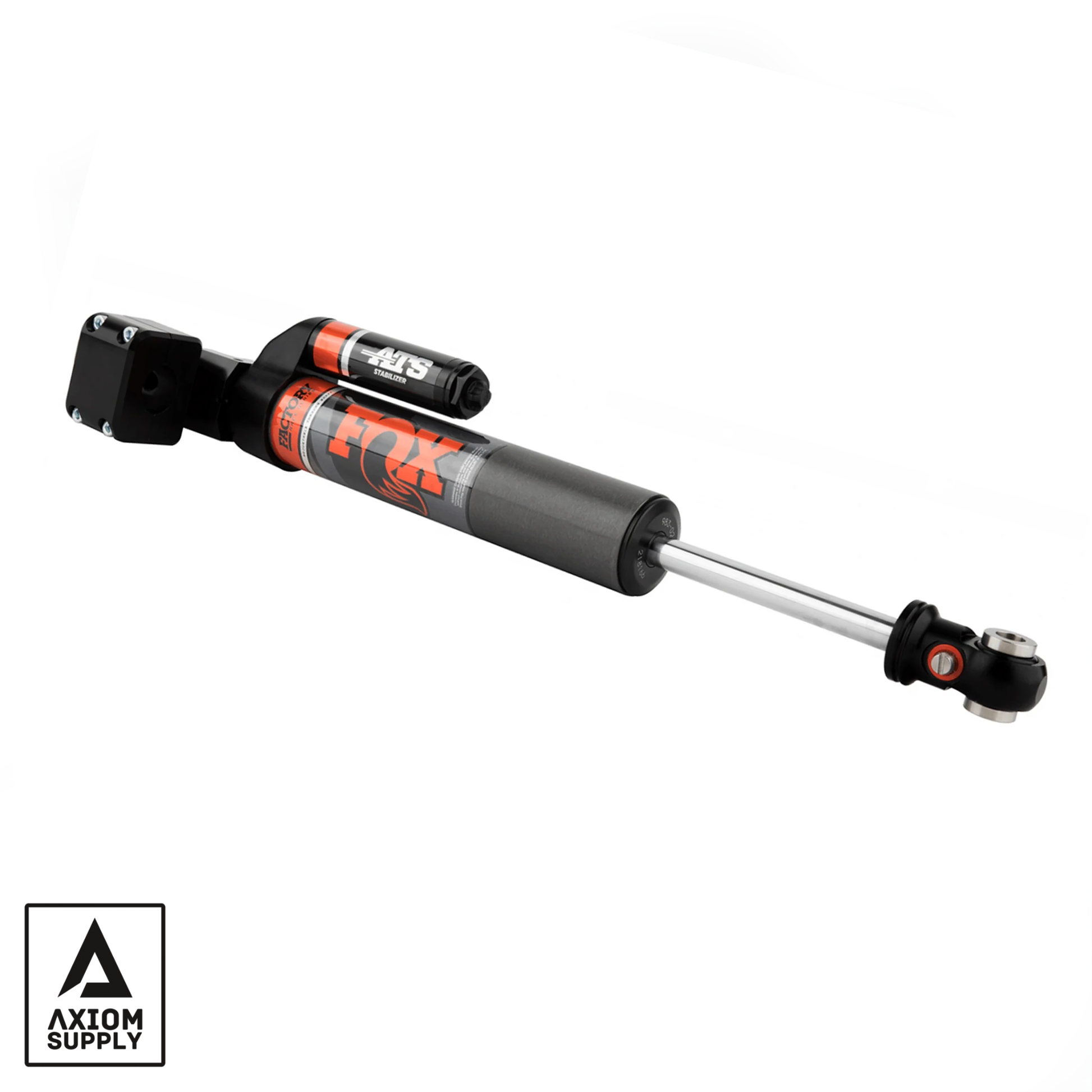

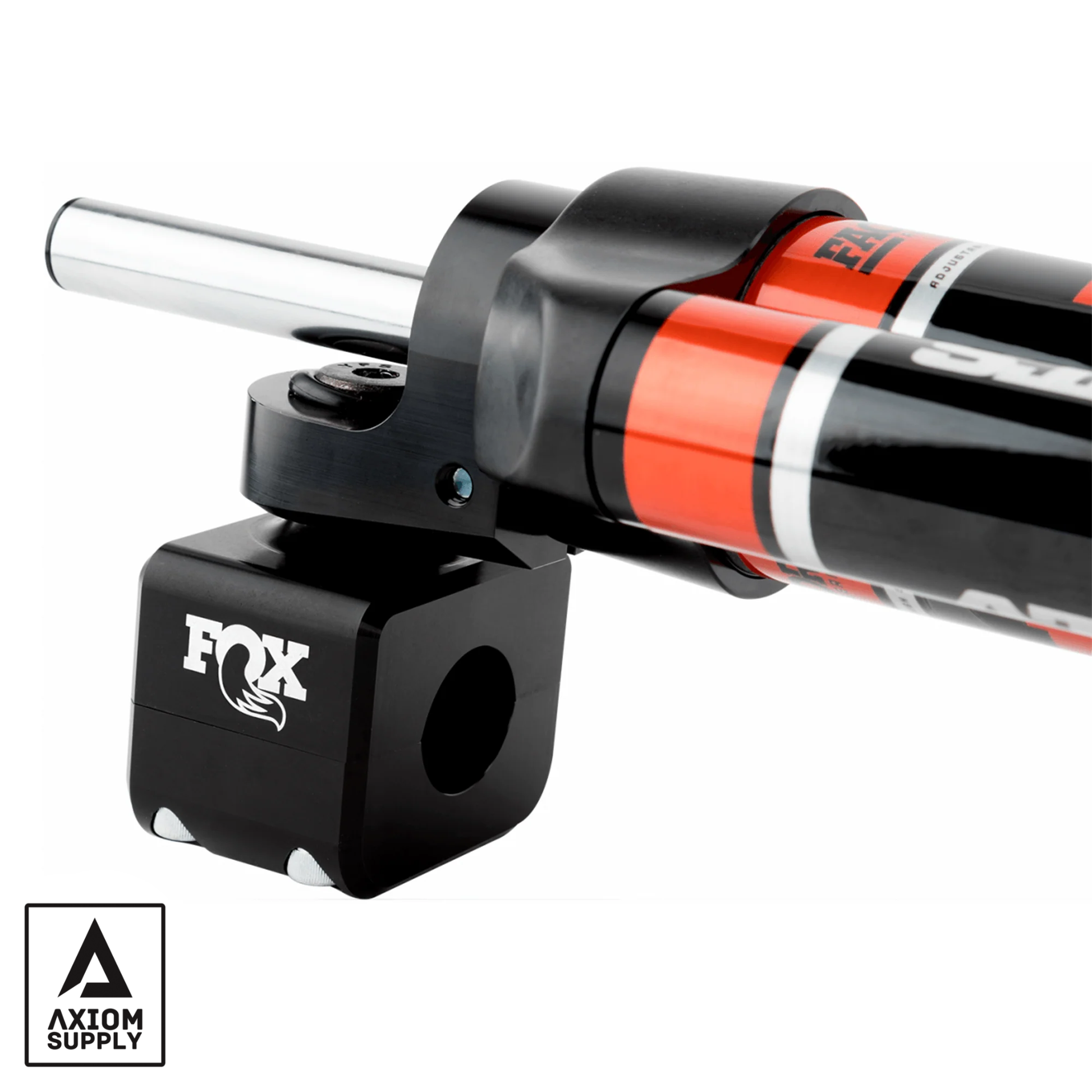

The FOX 2.0 ATS Steering Stabilizer (AX143) is engineered as a direct replacement for 2017–2026 Ford Super Duty F250 and F350 4WD trucks. Designed to mount directly to the OE drag link or drag link bracket, this stabilizer improves steering control, reduces kickback, and enhances overall front-end stability for stock, leveled, or lifted trucks.
Featuring FOX’s Adjustable Through Shaft (ATS) architecture, this stabilizer eliminates fluid displacement throughout the entire stroke—removing the push/pull steering force common in conventional stabilizers. The external reservoir with Internal Floating Piston (IFP) increases oil capacity and cooling, while the 24-click external adjuster allows precise tuning for driving style, tire size, and suspension setup.
✔ Adjustable Through Shaft (ATS) design
✔ 24-click external adjuster
✔ External reservoir with IFP
✔ Sold individually
🛠 Installation
- Direct bolt-on replacement for factory steering stabilizer.
- No cutting or fabrication required.
- Basic hand tools required.
📌 Specs
- Key Features & Benefits
- Adjustable Through Shaft (ATS) Architecture
- 24-Click External Damping Adjuster
- External Piggyback Reservoir
- Internal Floating Piston (IFP)
- Eliminates Unwanted Steering Feedback
- Bolt-On Installation
📘 Specifications
- Collapsed Length: 14.1"
- Extended Length: 22.2"
- Series: FOX Factory Race Series 2.0 ATS
- Adjustment: 24 Click External Adjuster
- Application: Steering Stabilizer
- Sold As: Single
📦 What’s Included (What’s in the Box)

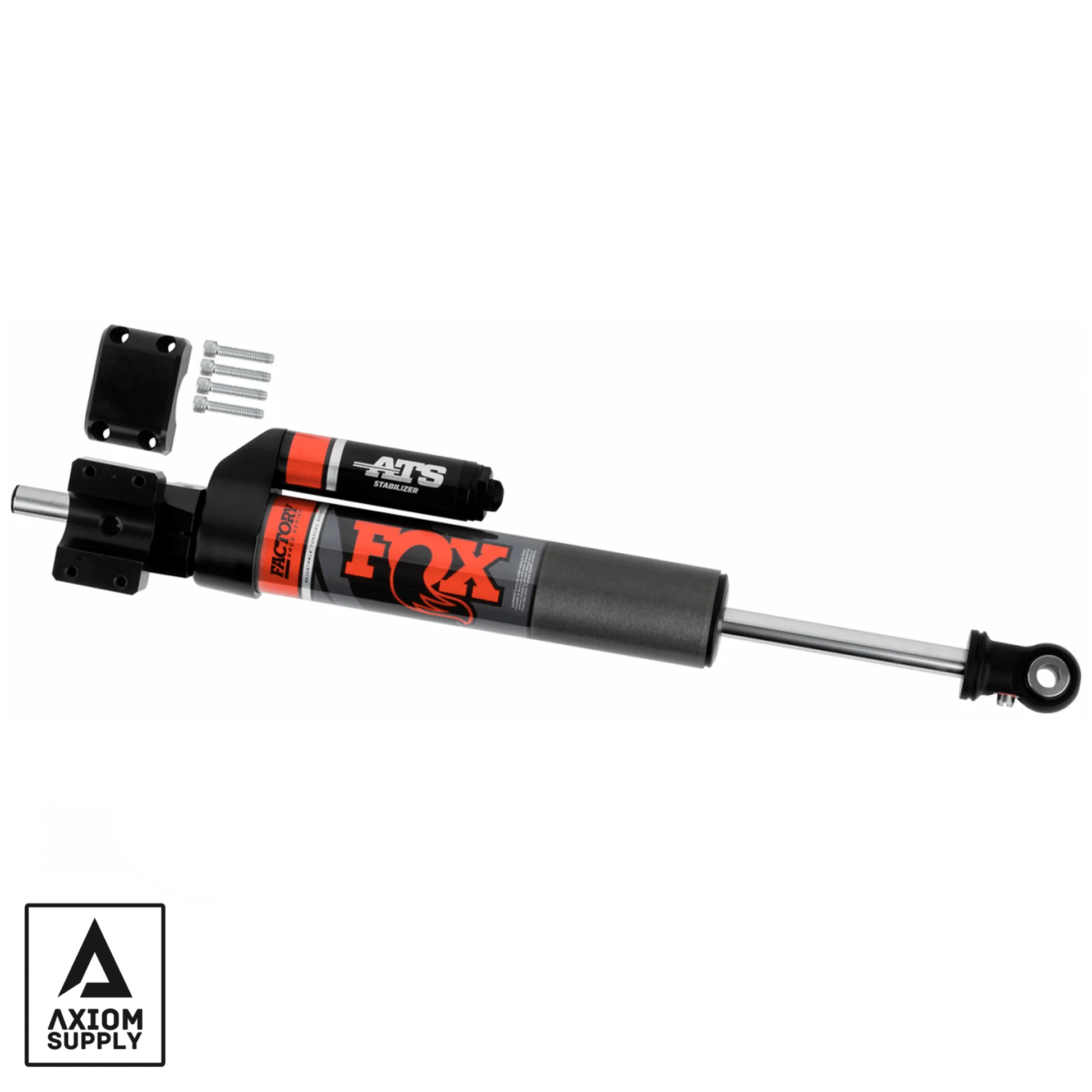

- (1) FOX 2.0 ATS Steering Stabilizer – AX143
- Mounting Hardware
- FOX Part Number: 983-02-143
🛡 Warranty
- Covered under The Axiom No-Nonsense Lifetime Warranty.
- Warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage.
- Push it to the limit—we don’t care. If the part lets you down, it will be made right.
⚠️ Fitment Notes
- 2017–2026 Ford F250 Super Duty 4WD
- 2017–2026 Ford F350 Super Duty 4WD
⚠️ Fitment Notes
- 4WD models only
- Direct replacement for OE stabilizer
- Mounts to OE drag link or OE bracket
- Compatible with most leveling kits and lift kits
- Sold as single stabilizer (1 required per vehicle)
