🧾 Overview

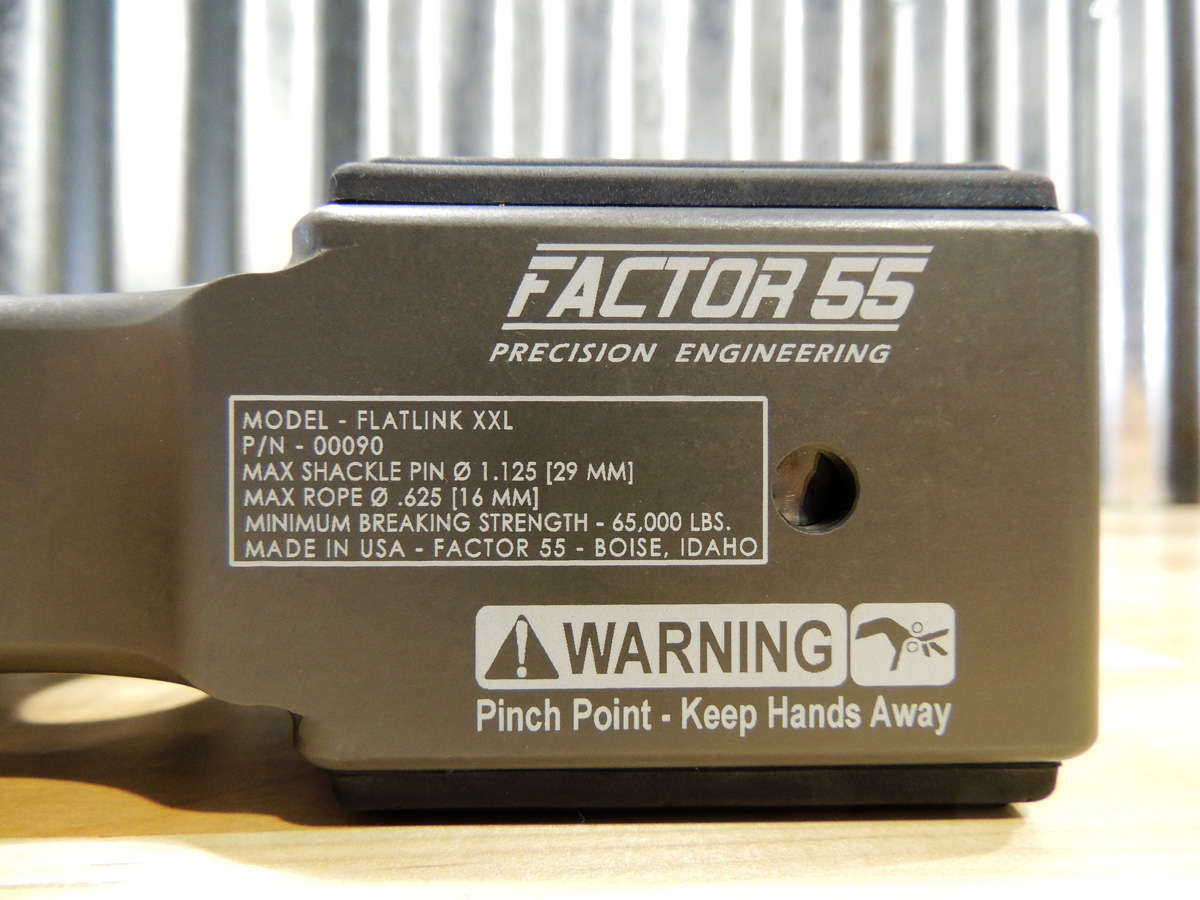

The Factor 55 FlatLink XXL Winch Shackle Mount Assembly (Anodized Gray) is the strongest and most heavy-duty FlatLink ever produced, engineered for extreme recovery applications involving large winches, oversized vehicles, and high-capacity rigging. Designed as the world’s first foldable winch shackle mount with a self-centering load spool, the FlatLink XXL replaces traditional winch hooks with a significantly safer, closed-system recovery solution.
Precision CNC-machined from 6000 series Military Grade aluminum, the FlatLink XXL is compatible with both steel cable and synthetic winch rope, supporting wire rope diameters up to 1 inch and synthetic rope tube thimbles up to 5/8 inch. A massive 7/8-inch titanium double-shear pin provides exceptional strength while eliminating the need for rope splicing.
The fold-flat design stows cleanly against the fairlead with no rattling, while integrated EPDM rubber pads protect aluminum or steel fairleads during use. Designed for 7/8-inch and 1-inch shackles, this mount is ideal for full-size trucks, HD rigs, and extreme off-road recoveries where strength and safety are critical.
✔ Designed for steel cable and synthetic rope
✔ Foldable, rattle-free design
✔ Extreme load ratings for HD winch systems
✔ Made in the USA
🛠 Installation
- Installs directly in place of a conventional winch hook
- No rope splicing required
- Compatible with both steel cable eyes and synthetic rope thimbles
- DIY-friendly installation using basic hand tools
📌 Specs
📌 Key Features & Benefits
- Foldable FlatLink design stows flush against fairlead
- Self-centering load spool for steel cable applications
- Supports Closed System Winching for safer recoveries
- Precision CNC-machined 6000 series Military Grade aluminum
- 7/8-inch titanium double shear pin for extreme strength
- Compatible with steel cable and synthetic winch rope
- Integrated EPDM rubber pads protect fairlead surfaces
- Fits common 7/8" and 1" screw pin shackles
- Eliminates hook-related recoil and failure risks
- Rattle-free operation on and off the trail
📐 Specifications
- Product Type: Winch shackle mount
- Design: Foldable FlatLink
- Material: 6000 series aluminum
- Finish: Military Spec Hard Anodized Gray (Mil-A-8625 F Type III)
- Pin Material: Titanium (double shear)
- Pin Diameter: 7/8 inch
- Max Rated Load: 26,000 lbs
- Ultimate Strength: 68,000 lbs
- Compatible Shackle Pin Sizes: 7/8" and 1" (1.0–1.125")
- Synthetic Rope Compatibility: Up to 5/8"
- Wire Rope Compatibility: Up to 1"
- Weight: 51 oz
- Sold As: Each
📦 What’s Included
- Factor 55 FlatLink XXL shackle mount assembly
- 7/8-inch titanium double shear pin
- Integrated load-centering spool (for wire rope applications)
- Integrated EPDM rubber fairlead protection pads
🛡 Warranty
- Manufacturer-backed warranty
- Warranty coverage provided by Factor 55
⚠️ Fitment Notes
- Compatible with most winches using steel cable or synthetic rope
⚠️ Fitment Notes
- Designed for heavy-duty and high-capacity winch systems
- Requires compatible shackle (7/8" or 1")
- Always confirm fairlead and bumper clearance before operation
- Not intended for use with undersized recovery components
