🧾 Overview

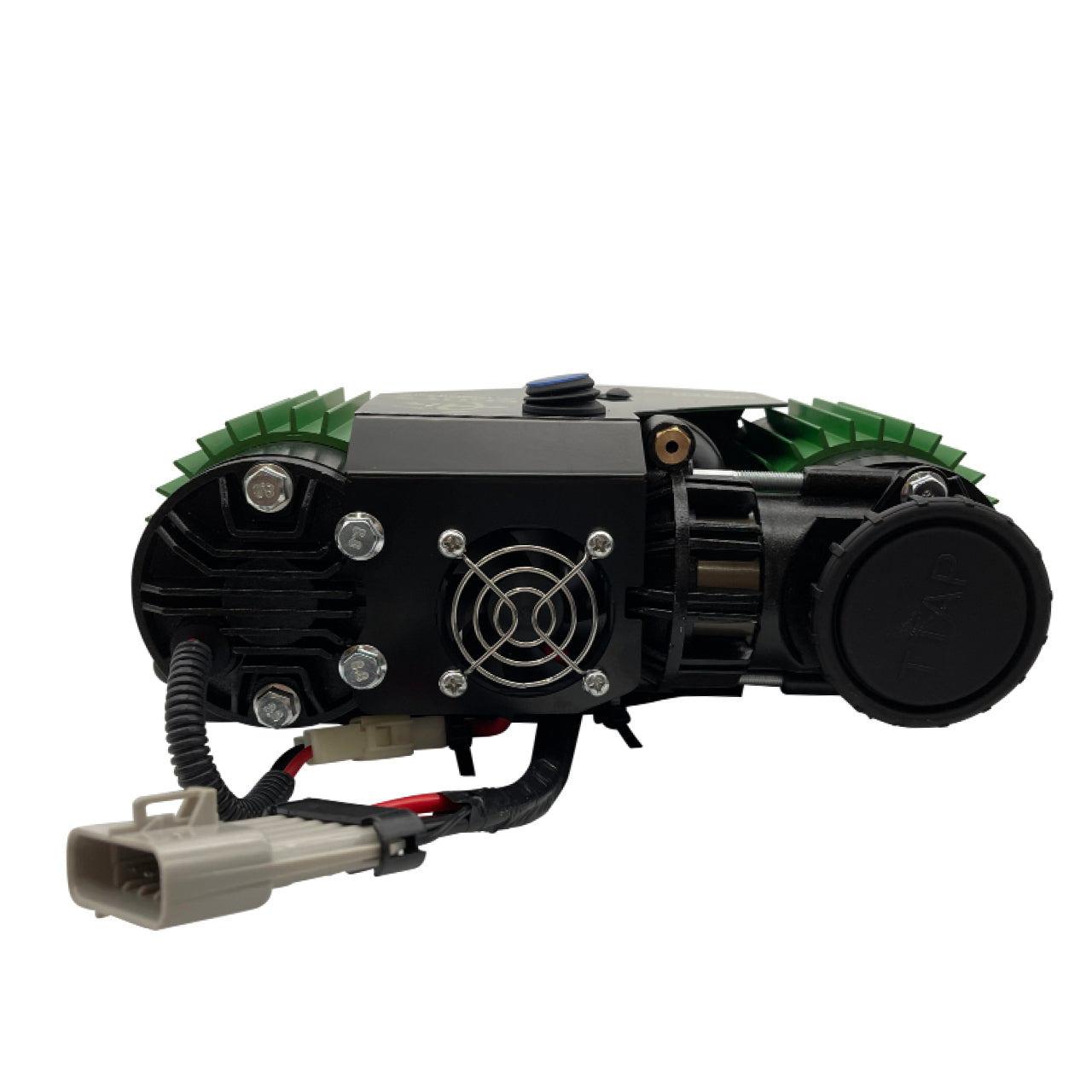

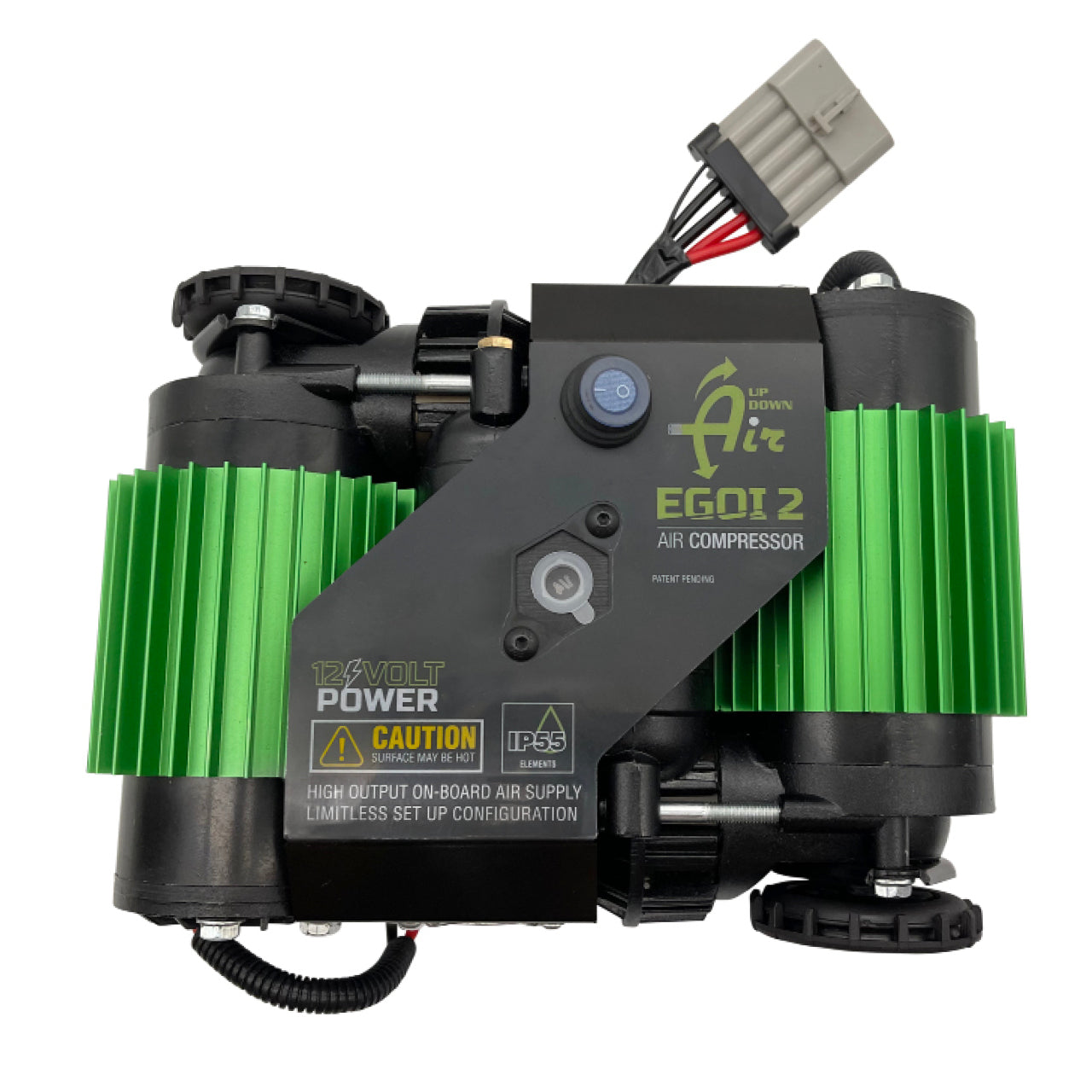

The Up Down Air EGOI II Permanent On-Board Air Compressor System is a high-output dual motor 12V system designed for serious off-roaders, overlanders, and work trucks. Producing approximately 6.35 CFM, this compact yet powerful compressor is built to handle tire inflation, pneumatic accessories, and even air tools when paired with an air tank.
Constructed with aircraft-grade 6061 aluminum for reduced weight and superior heat dissipation, the EGOI II features twin permanent magnetic motors, integrated cooling fins, and an IP55-rated enclosure for protection against moisture and debris. It integrates seamlessly with Up Down Air’s ADS 4-Tire Air Delivery System for rapid, balanced tire inflation.
✔ Dual high-power motors
✔ 150 PSI maximum pressure
✔ 6.35 CFM output
✔ Direct integration with UDA ADS system
🛠 Installation
- Designed for permanent on-board installation.
- Universal mounting base plate allows multiple mounting configurations.
- Connect using included wiring harness and fused power leads.
- Compatible with ADS air delivery system and optional air tank setups.
📌 Specs
- Key Features & Benefits
- Twin Permanent Magnetic Motors
- Thermal Cut-Off Protection
- 150 PSI Safety Pressure Cut-Off Switch
- Aircraft-Grade 6061 Aluminum Housing
- Integrated Cooling Fan & Heat Dissipation Fins
- IP55 Moisture Protection Rating

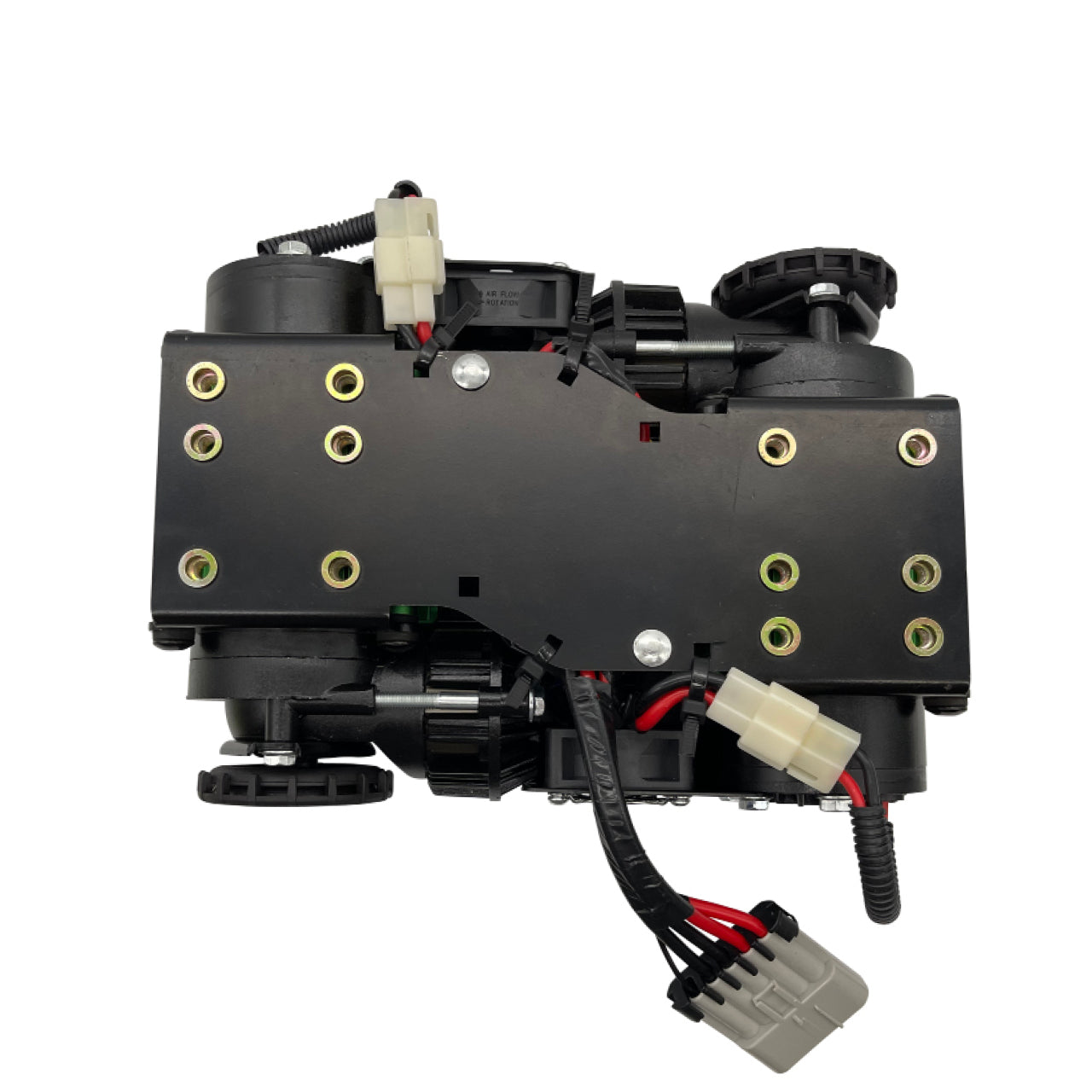

- Integrated Universal Mounting Base Plate
- Illuminated Power Switch
- Complete Wiring Harness with Dual 40-Amp Fuses
📘 Specifications
- CFM Output: 6.35 CFM
- Max Pressure: 150 PSI
- Voltage: 12V
- Motor Type: Dual Permanent Magnetic
- Protection Rating: IP55
- Mounting: Universal Base Plate
- Application: On-Board Air System

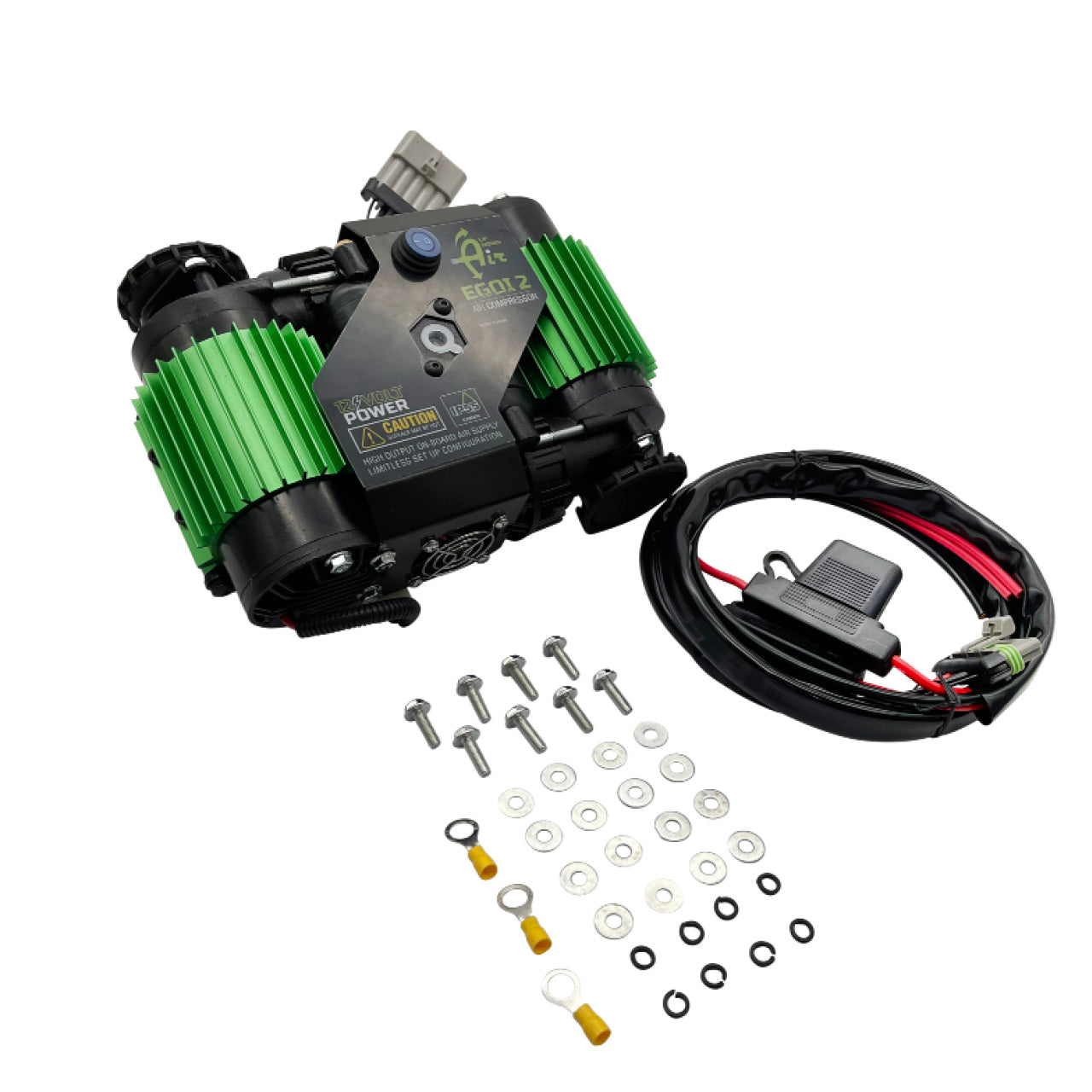

📦 What’s Included (What’s in the Box)
- EGOI II Dual Motor Air Compressor Assembly
- Integrated Illuminated Power Switch
- Complete Wiring Harness
- (2) 40-Amp Fuses
- Universal Mounting Bracket
🛡 Warranty
- 4-Year Limited Manufacturer Warranty
⚠️ Fitment Notes
- Universal – 12V Vehicle Applications
⚠️ Fitment Notes
- Designed for permanent on-board mounting
- 12-volt electrical system required
- Compatible with Up Down Air ADS 4-Tire System
- Air tank required for running air tools
