🧾 Overview

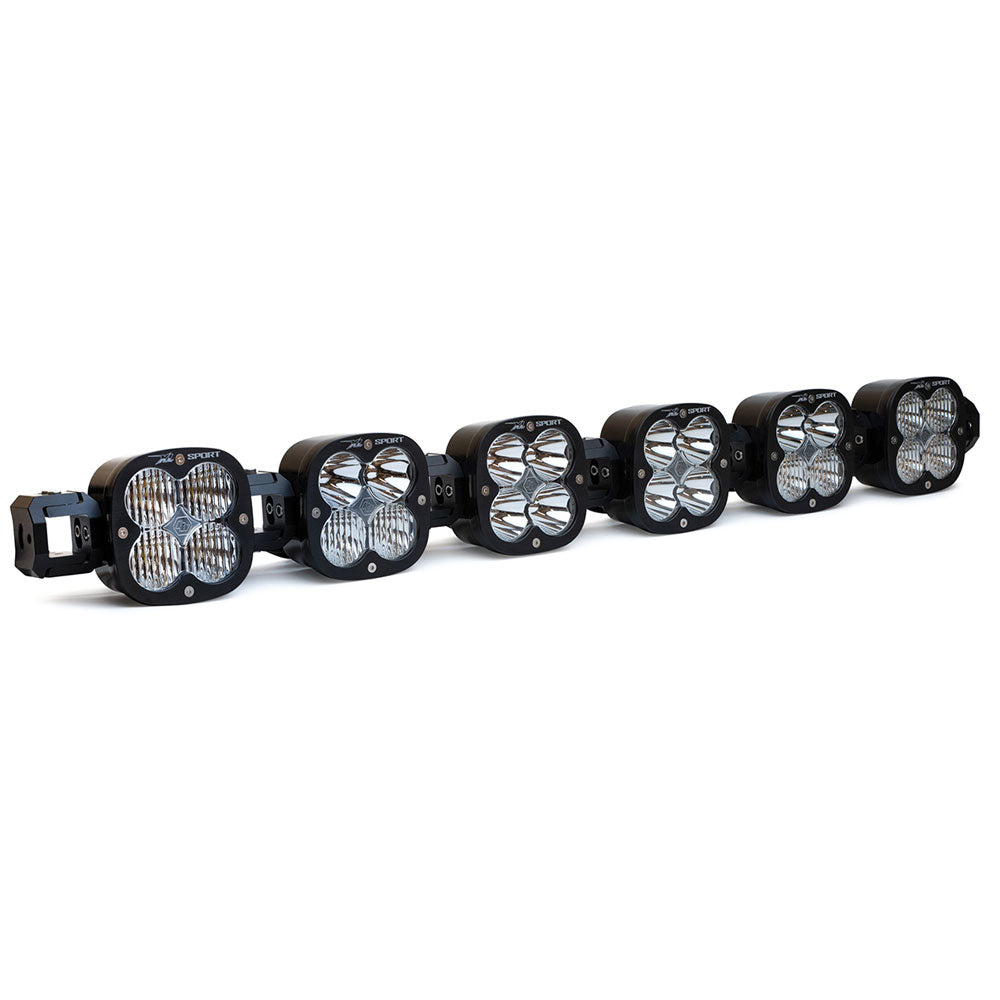

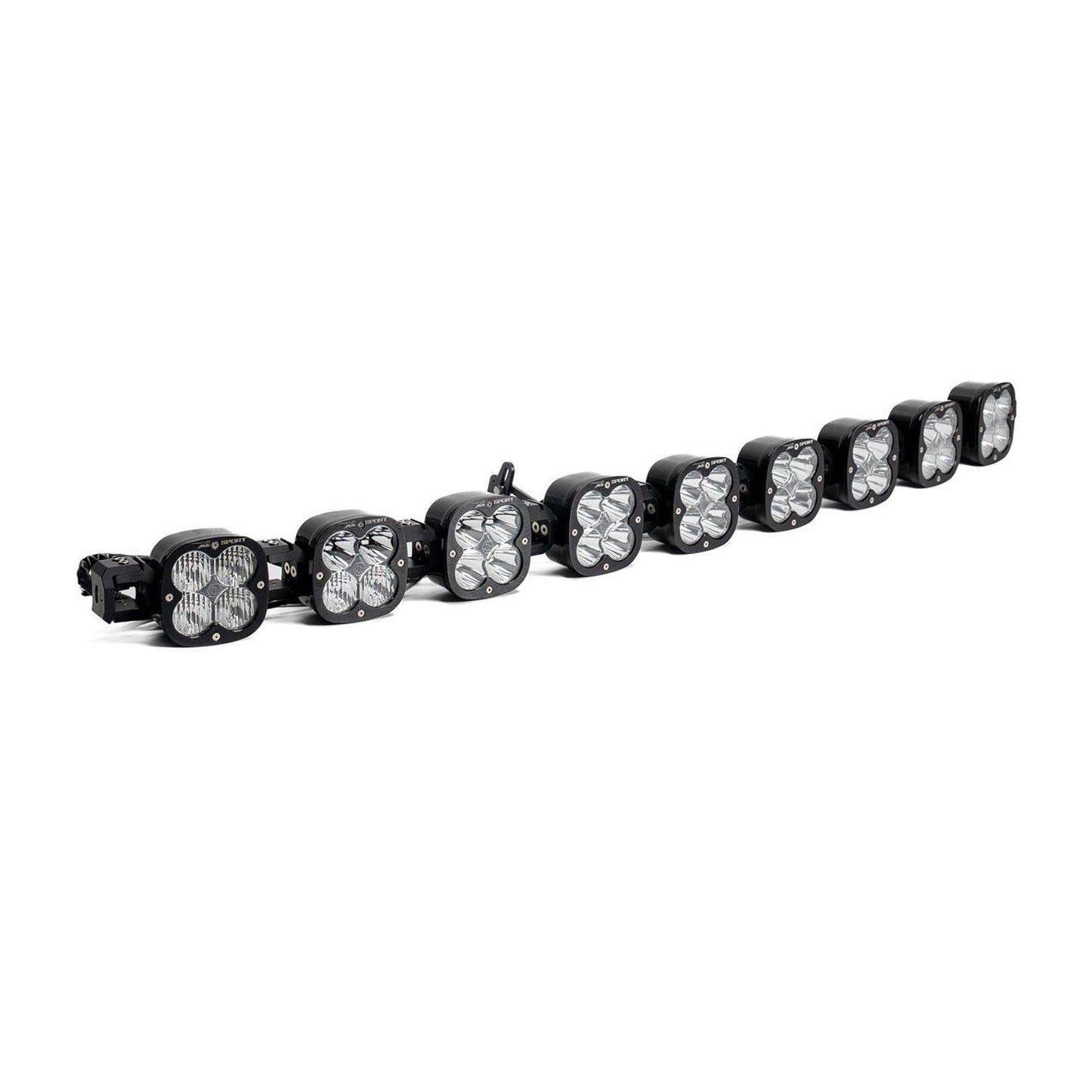

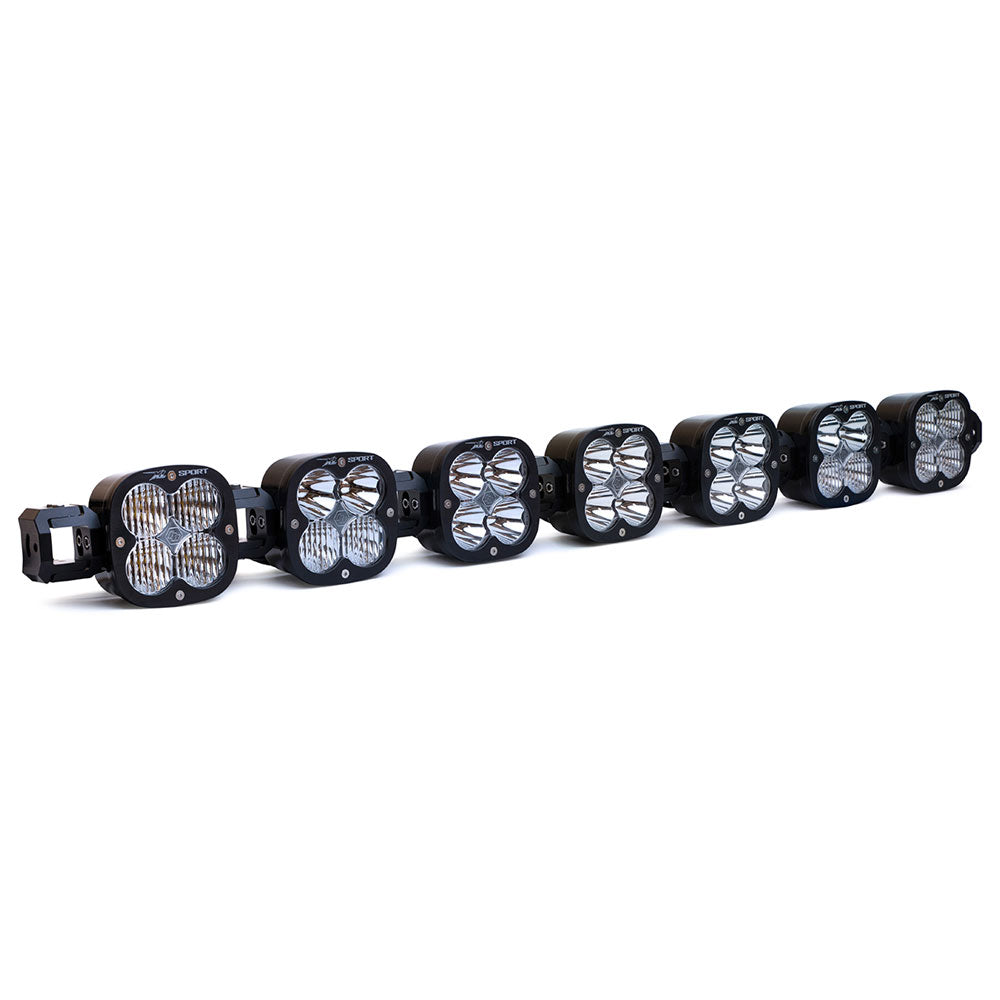

The Baja Designs XL Sport Linkable LED Light Bar is a fully modular, universal-fit lighting system designed for off-road enthusiasts who want complete control over their lighting setup. Built around Baja Designs’ proven XL Sport shallow-mount housing, this system allows you to link 3 to 9 XL Sport lights to create a custom-width light bar tailored to your bumper, roof, or rack.
Each XL Sport module produces 3,162 raw lumens using next-generation LEDs and multi-pattern optics that illuminate Zones 1, 2, 3, and 4 simultaneously for a smooth, wide beam. Independent horizontal adjustment per light allows straight or curved configurations, while up to 45° of vertical pitch adjustment lets you fine-tune aim across the entire bar or per module.
📦 Special Order - Ships Directly from Oracle Lighting
Genuine Oracle Lighting • Full manufacturer warranty. Lead times may vary.
🛠 Installation
- Installation varies by number of linked modules
- Wiring harness included (Baja Designs PN: 640115)
- Pre-load kit and linking hardware included (variant dependent)
- Basic hand tools required
- Professional installation recommended for custom mounting setups
📌 Specs
- Key Features & Benefits
- Modular linkable design (3–9 XL Sport lights)
- 3,162 raw lumens per XL Sport module
- Multi-pattern optics for wide, balanced illumination
- 45° vertical pitch adjustment (per light or entire bar)
- Independent horizontal adjustment for straight or arc layouts
- Pre-terminated wiring for easy installation and future expansion
- Black rock guards included for lens protection
- Universal fit for custom off-road applications
- General Specifications (All Variants)
- Product Type: XL Sport Linkable LED Light Bar
- Lighting Technology: LED
- Beam Pattern: Multi-Pattern
- Lens Material: Hardcoated Polycarbonate
- Lens Color: Clear
- Housing Material: Hard Anodized & Powder-Coated Cast Aluminum
- Housing Color: Black
- Height: 4.43 in.
- Depth: 2.8 in.
- Average Rated Life: 49,930 hours
- Waterproof Rating: IP69K
- Impact Rating: IK10
- Durability: Exceeds MIL-STD-810G
- Warranty: Limited Lifetime (Manufacturer)
- Configuration-Specific Specifications

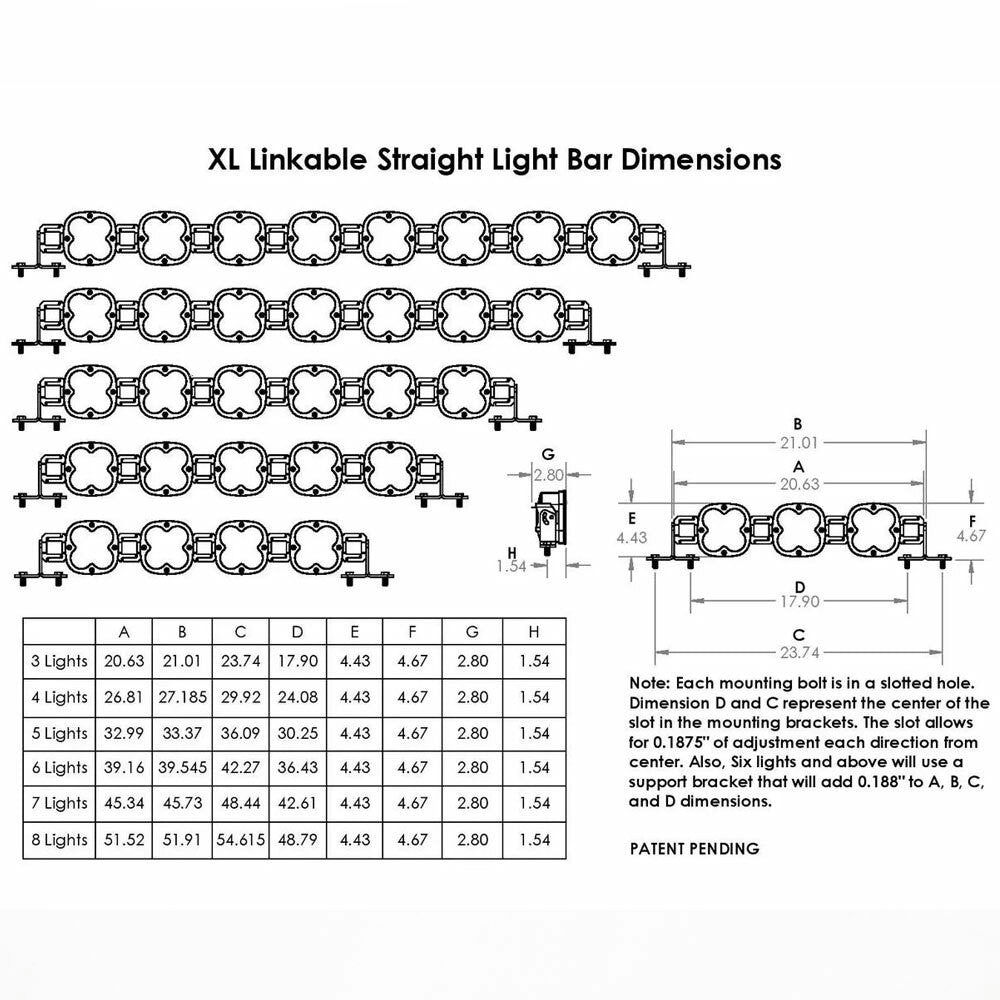

- Light Quantity SKU Lumens Wattage (W) Amps (A) Length (in.)

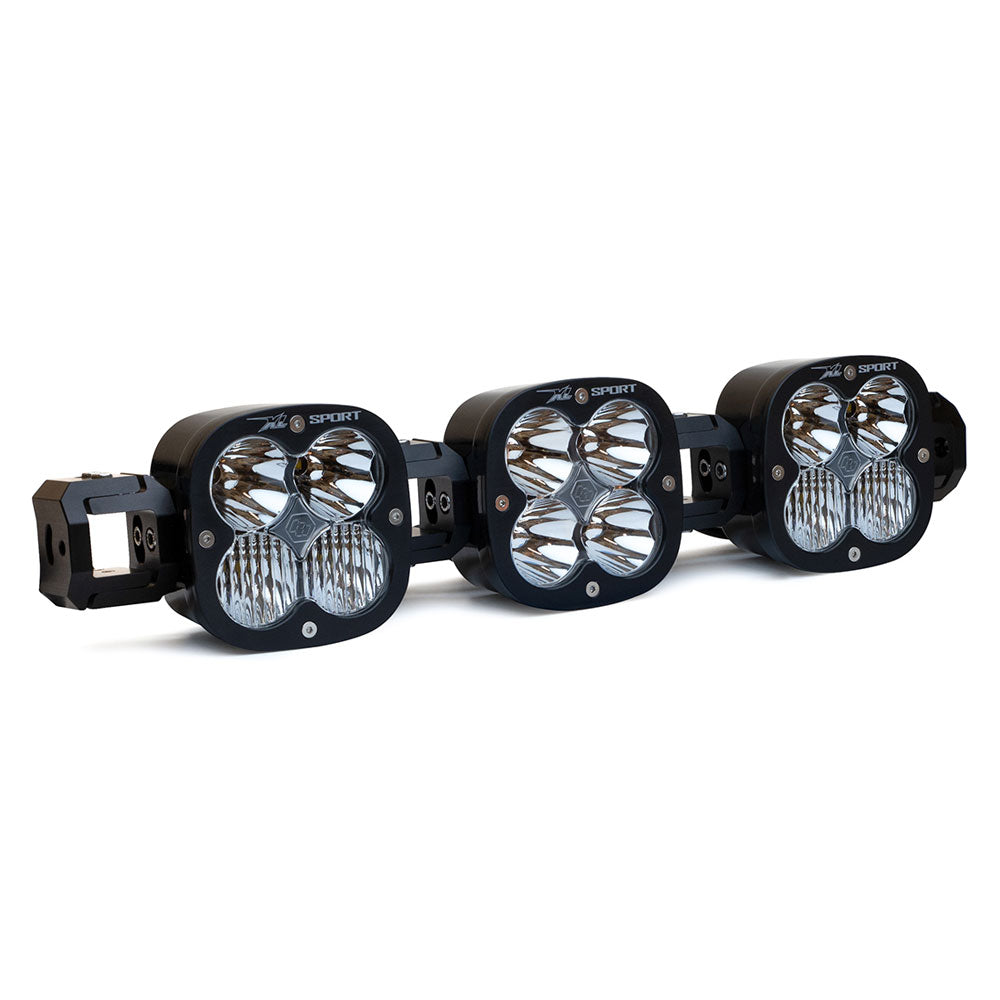

- 3 XL Sport 740001 9,450 78 6 20.63

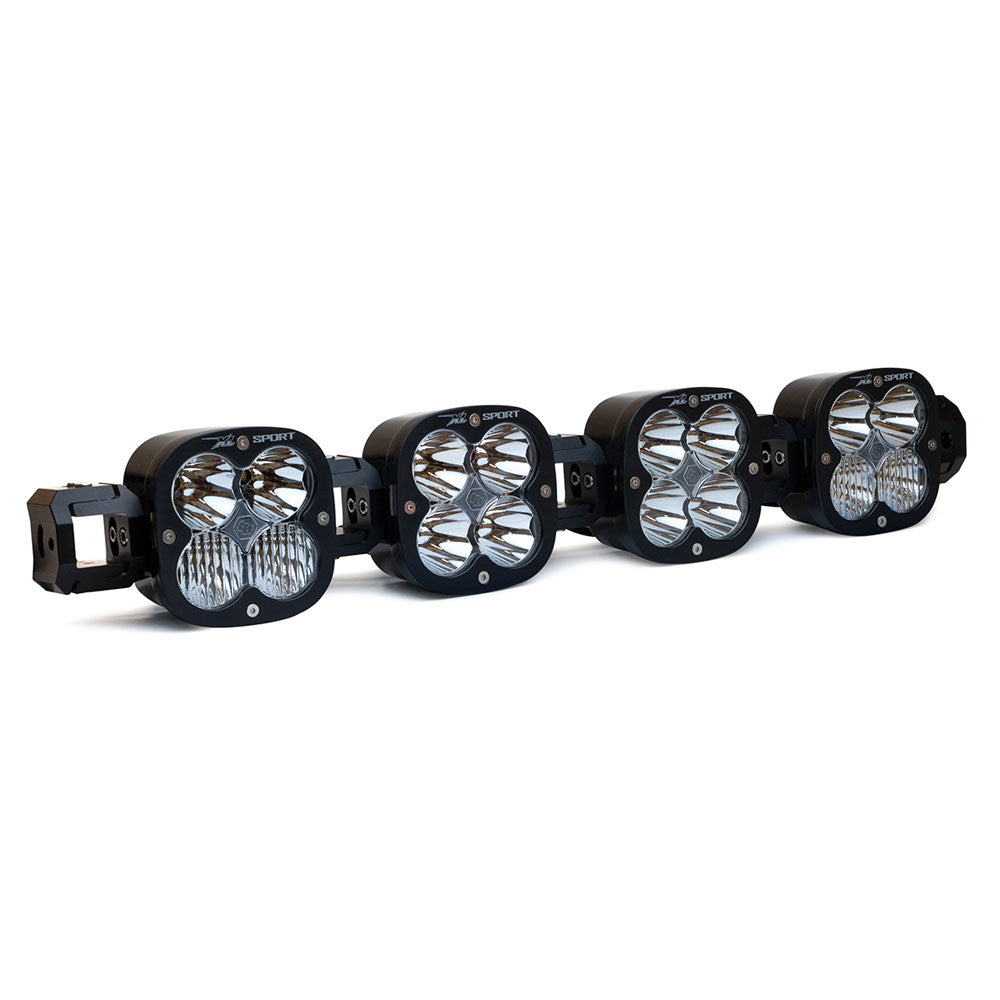

- 4 XL Sport 740002 12,600 104 8 26.81

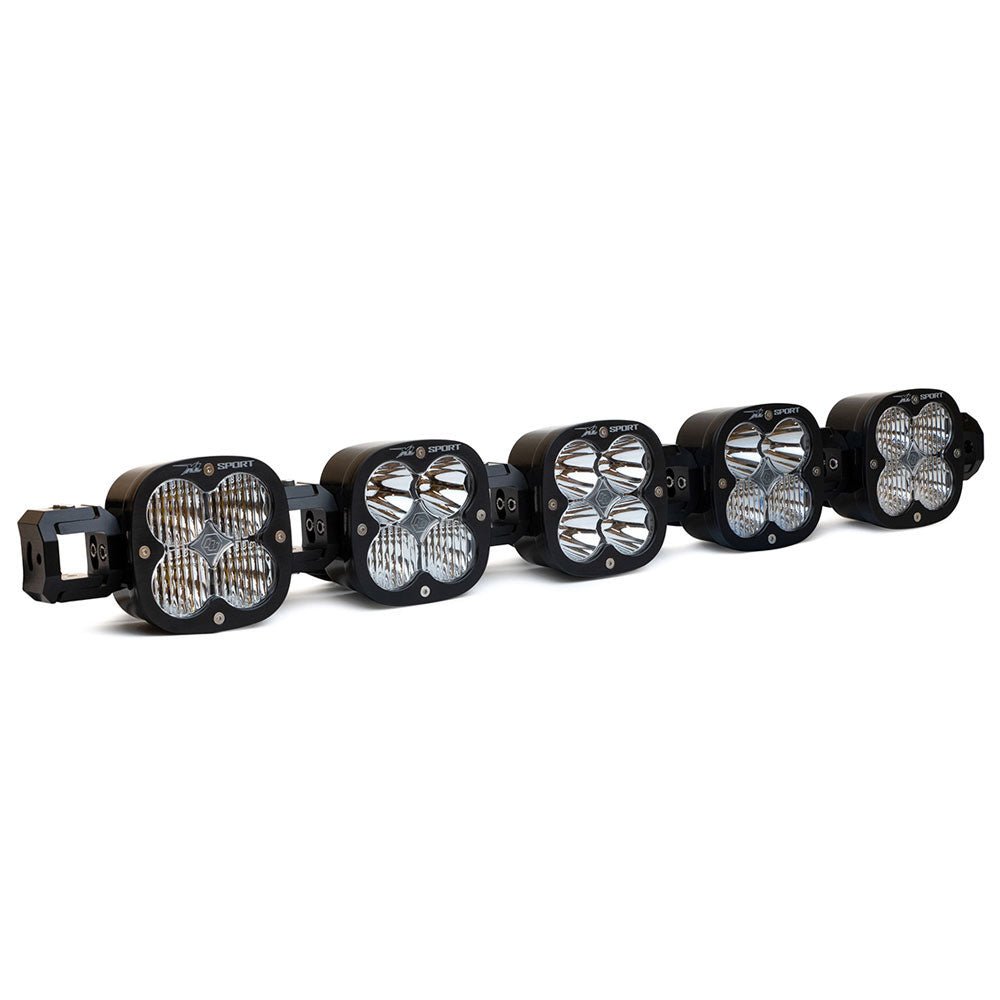

- 5 XL Sport 740003 15,750 130 10 32.99
- 6 XL Sport 740004 18,900 156 12 39.16
- 7 XL Sport 740005 22,050 182 14 45.34

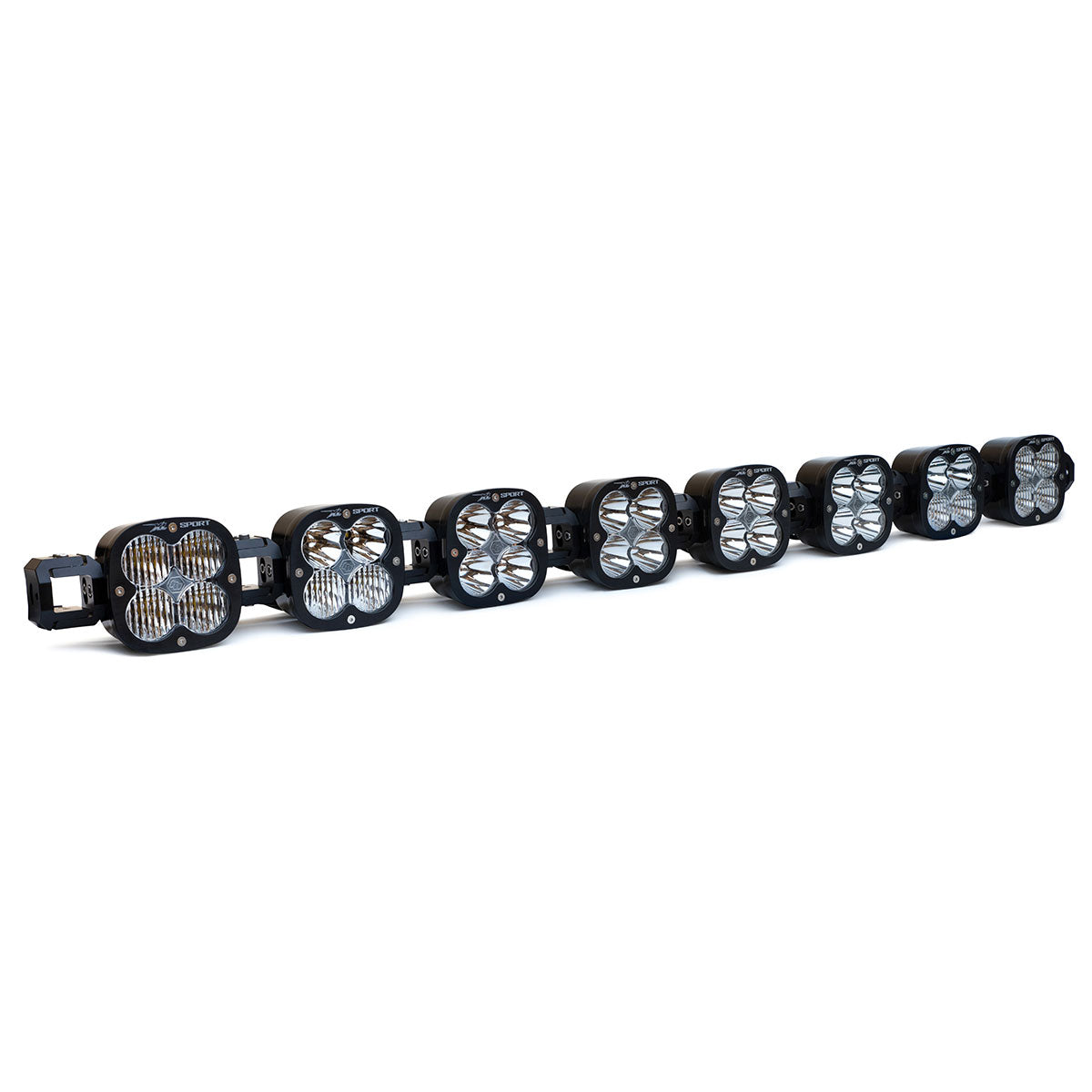

- 8 XL Sport 740006 25,200 208 16 51.52
📦 What’s Included (Variant‑Specific)
- Selected XL Sport Linkable Light Bar configuration
- Linking hardware
- Pre-load kit (on applicable variants)
- Black rock guards
- Wiring harness
- Manufacturer documentation
⚠️ Fitment Notes
- Universal fit — not vehicle-specific

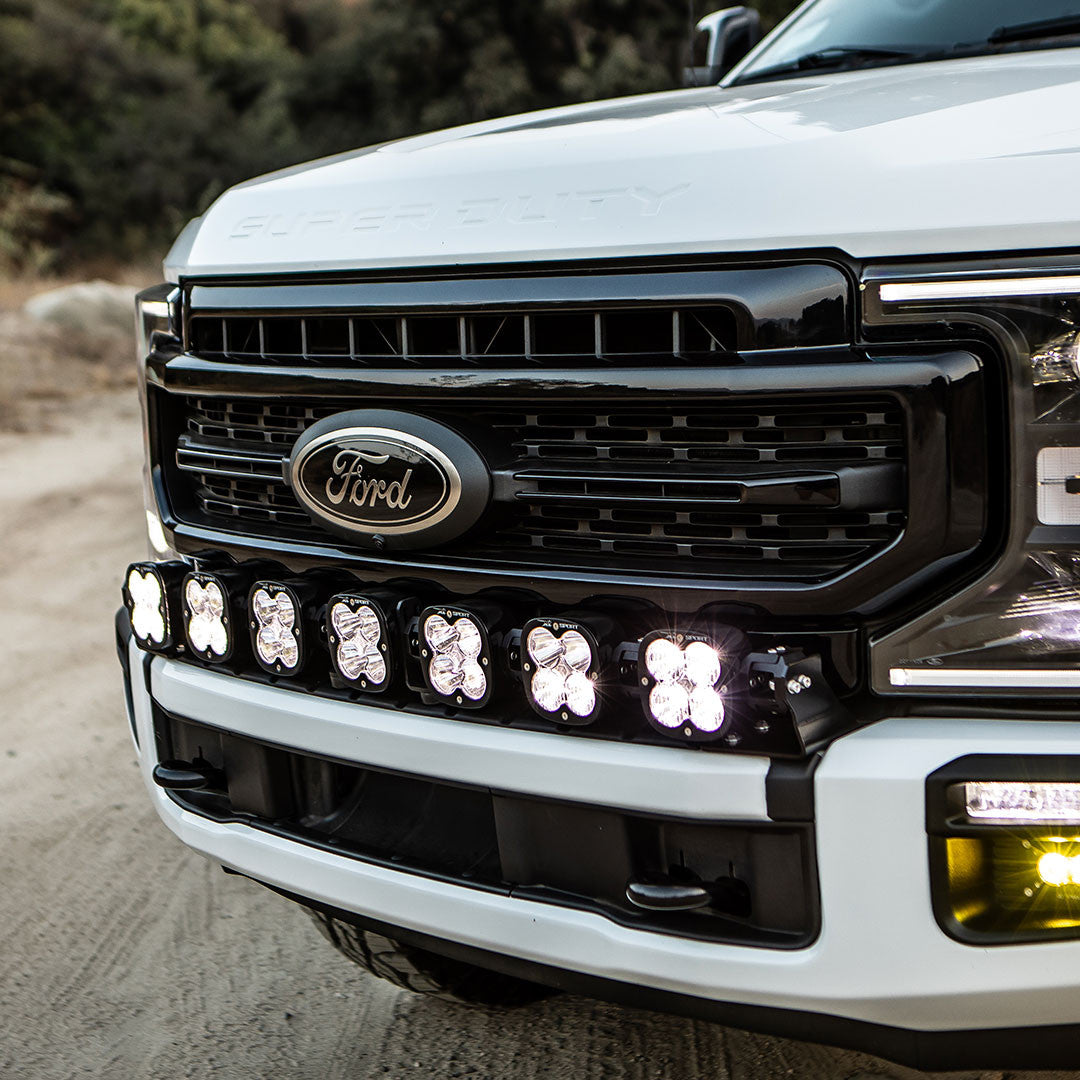

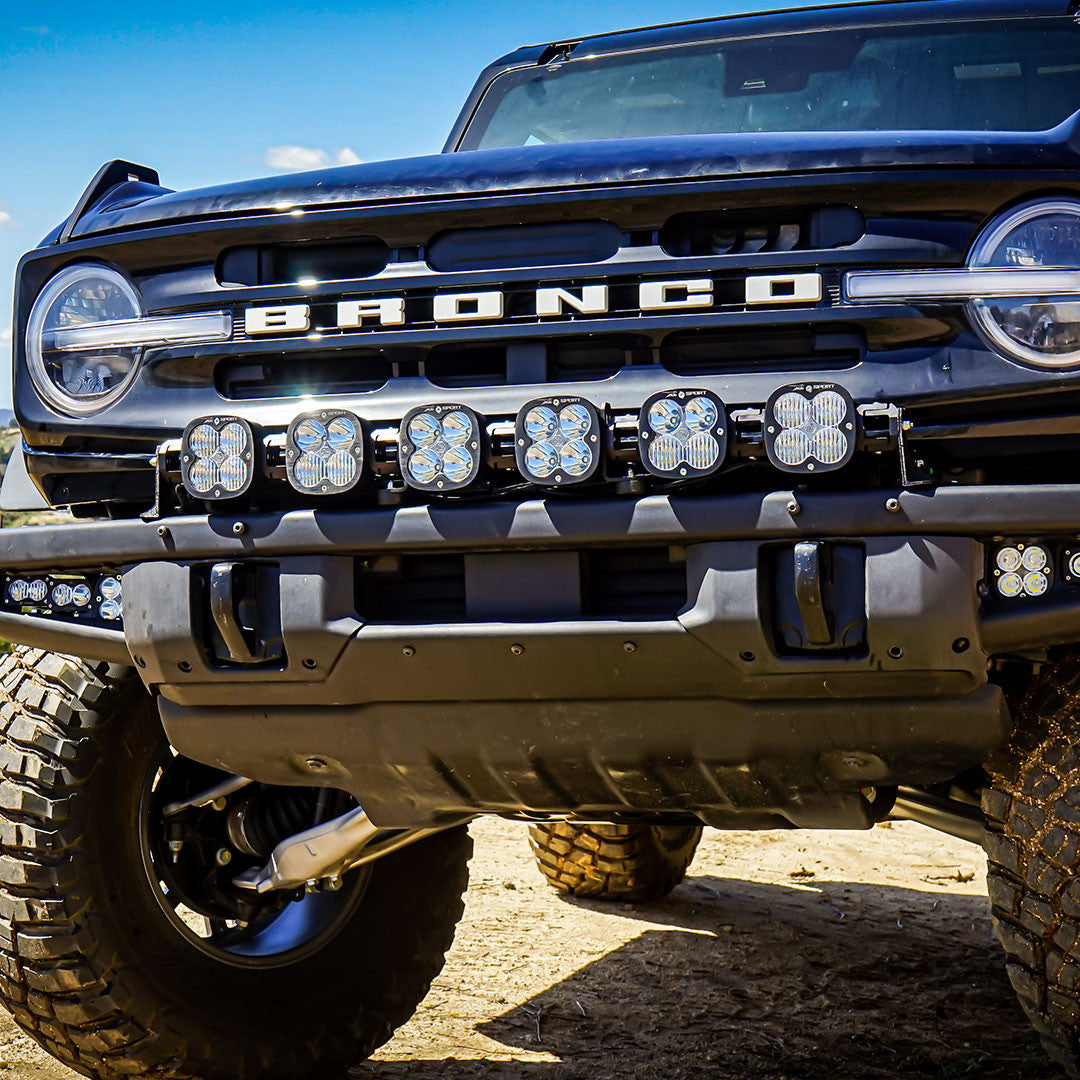

- Designed for custom mounting on bumpers, roof racks, and prerunner bars
- Ensure adequate mounting width for selected configuration
- XL Linkable mounting brackets not included (Baja Designs PN: 748000 required)
