🧾 Overview

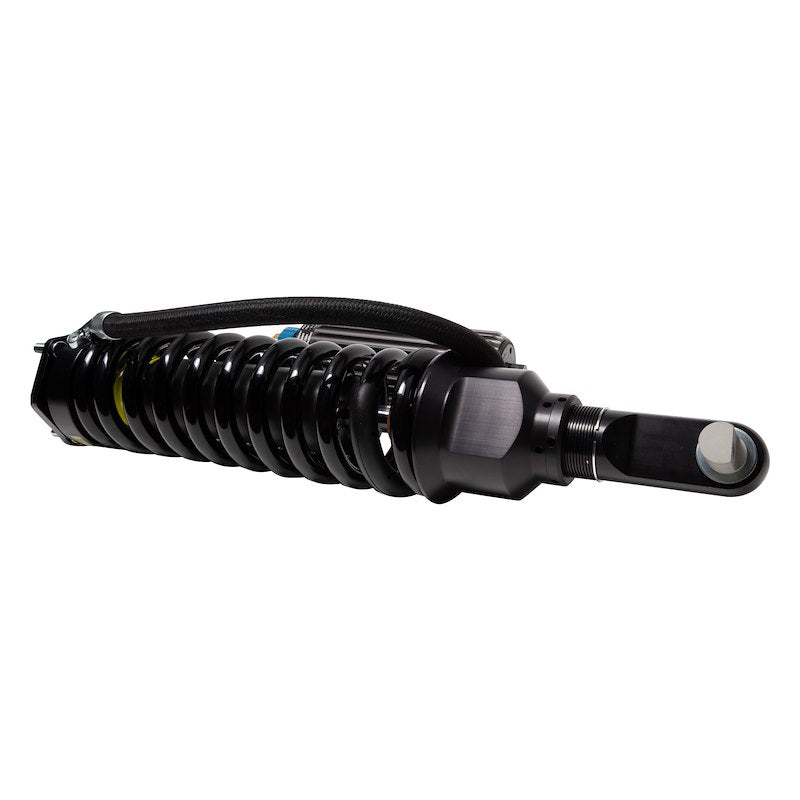

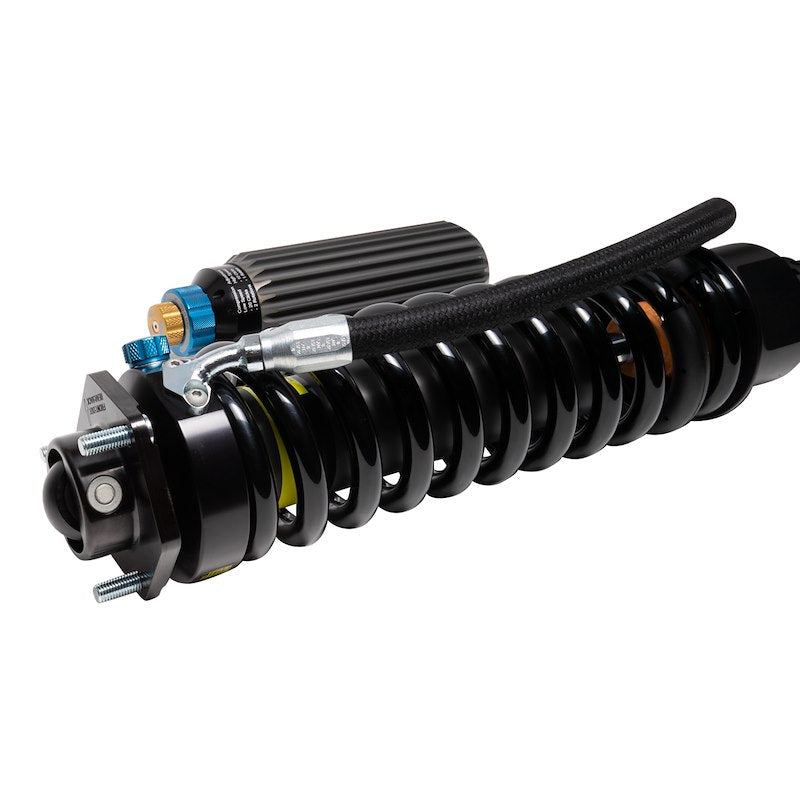

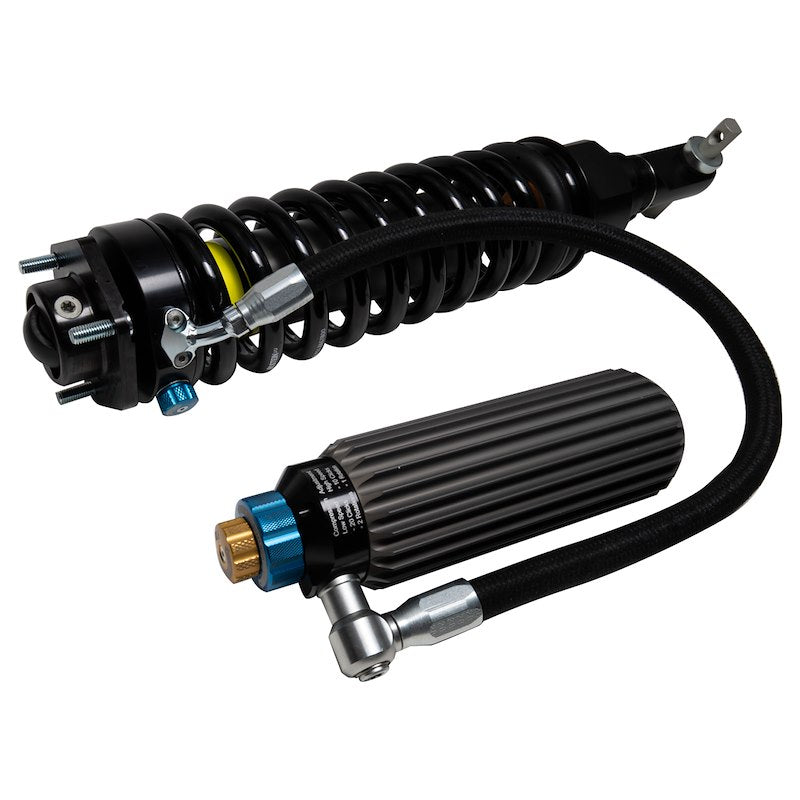

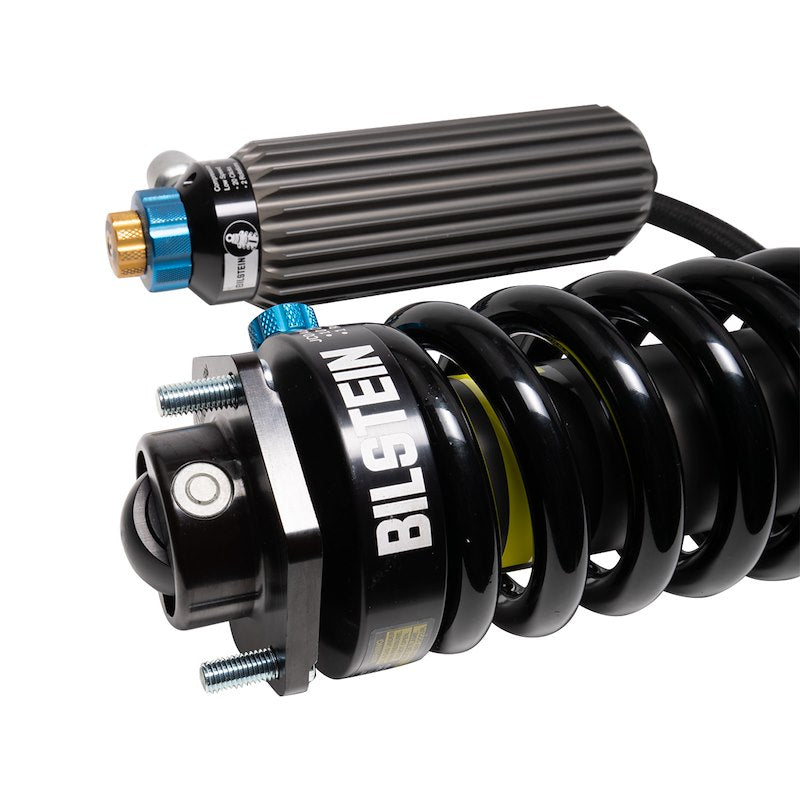

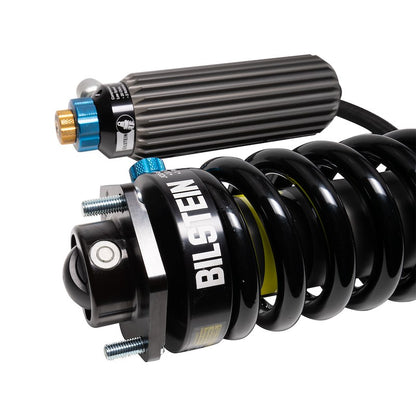

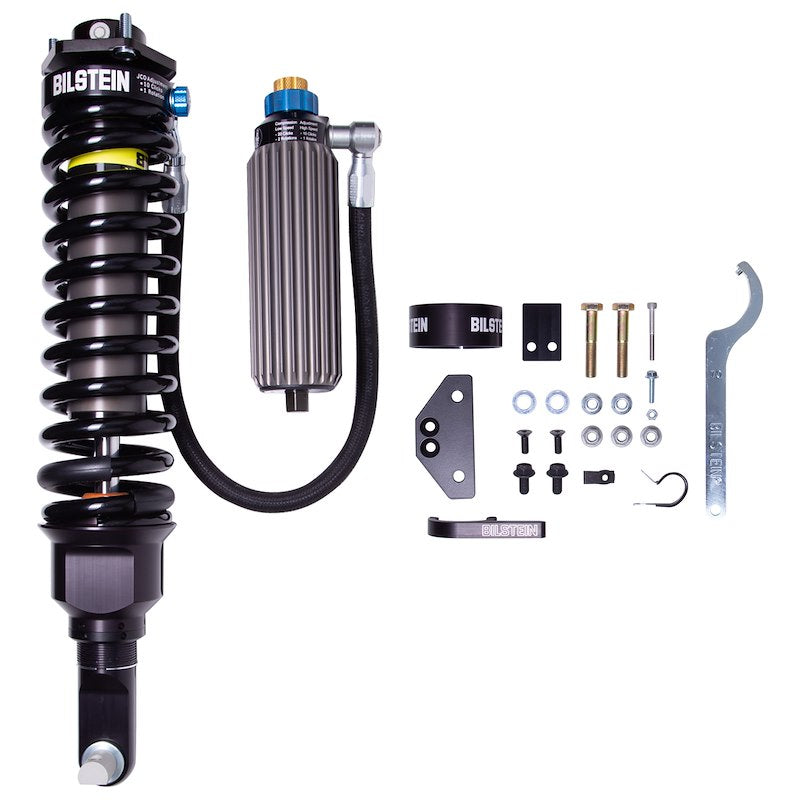

The Bilstein B8 8112 ZoneControl CR-DSA+ Front Right Coilover is a direct-fit, position-sensitive, dual-speed adjustable coilover shock engineered for 2021–2025 Ford Bronco models. Built with a large 2.65-inch shock body, this advanced coilover delivers exceptional ride comfort during daily driving while providing maximum control over large suspension inputs in aggressive off-road conditions.
Featuring ZoneControl CR technology with Dual Speed Adjustability (DSA+), the B8 8112 uses a triple-piston design to manage compression and rebound through multiple valving zones. User-friendly click adjusters allow precise tuning of low-speed and high-speed compression, along with an adjustable internal hydraulic bump stop (JCO) for added bottom-out control. A threaded spring seat allows ride height adjustment from 0–3 inches, depending on application.
✔ Position-sensitive damping with dual-speed adjustability
✔ Ride height adjustable coilover design
✔ Remote reservoir for improved cooling
✔ Tuned for Bronco front suspension performance
🛠 Installation
- Direct bolt-on replacement for factory front right suspension
- Uses OEM mounting locations

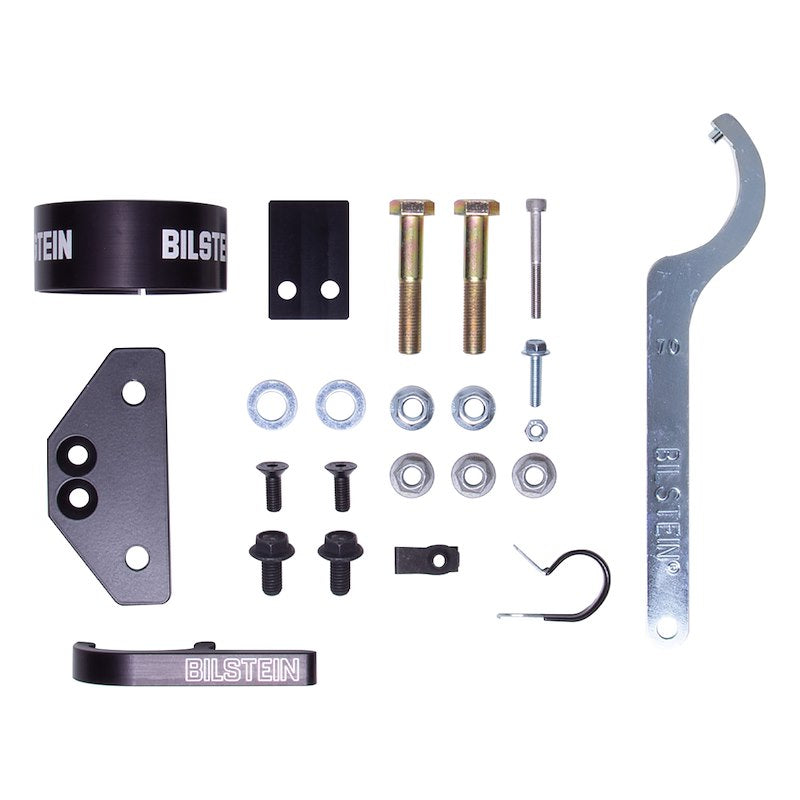

- Includes bolt-on anodized reservoir chassis mount
- Ride height adjustable via threaded spring seat
- Professional installation and alignment recommended
📌 Specs
- Position: Front Right
- Series: Bilstein B8 8112
- Technology: ZoneControl CR-DSA+
- Shock Type: Coilover with remote reservoir
- Body Diameter: 2.65″
- Adjustability:
- Dual Speed Compression (low & high speed)
- Position-sensitive damping
- Adjustable internal hydraulic bump stop (JCO)
- Valving Design:
- 3 stages of compression valving
- 2 stages of rebound valving
- Ride Height Adjustment: 0–3″ (application dependent)

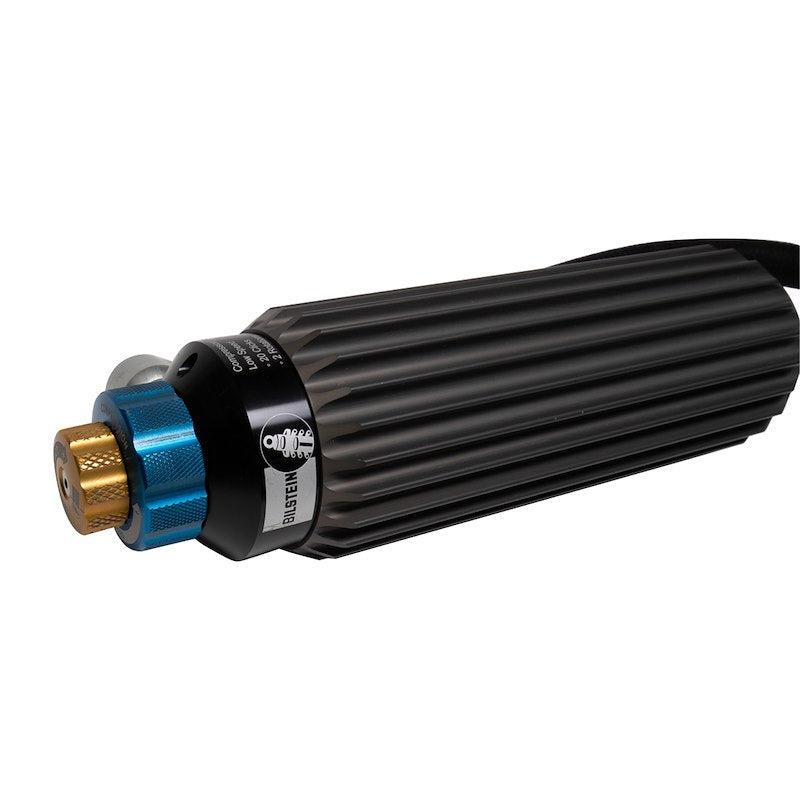

- Reservoir: Remote, with bolt-on anodized chassis mount
⚠️ Fitment Notes
- 2021–2025 Ford Bronco
- Front right corner module only
- Corner-specific — must match left/right orientation
- Not sold as a pair
