🧾 Overview
The Bilstein B8 8112 (ZoneControl CR DSA+) Front Left Corner Module is a premium, 3-way adjustable 60mm coilover shock engineered for the 2005–2023 Toyota Tacoma. Designed as a direct-fit performance upgrade, this advanced coilover delivers exceptional ride quality, control, and tunability for both daily driving and aggressive off-road use.
At the core of the B8 8112 is ZoneControl CR DSA+ technology, a revolutionary damping system that combines position-sensitive valving with Dual Speed Adjustability. Its triple-piston internal design provides three stages of compression damping and two stages of rebound damping, allowing the shock to react smoothly to small inputs while maintaining maximum control during large suspension events.
Independent click adjusters allow precise tuning of low-speed and high-speed compression, while the integrated JCO internal hydraulic bump stop further enhances bottom-out control. A threaded spring seat enables ride height adjustment from approximately 0.9 to 2.6 inches of front lift (application dependent).
This coilover includes a remote reservoir for increased oil capacity and cooling, along with a bolt-on anodized chassis reservoir mount. The result is a highly tunable, race-inspired suspension solution that delivers comfort, durability, and confidence across any terrain.
✔ Position-sensitive damping with dual-speed adjustability
✔ Independent low- and high-speed compression tuning
✔ Adjustable ride height for lift and leveling
✔ Designed for demanding off-road and daily use
🛠 Installation
- Direct bolt-on replacement for factory front shock (driver side)
- Uses factory mounting locations
- No cutting or welding required
- Aftermarket upper control arms required
- Professional alignment recommended
📌 Specs
- ZoneControl CR DSA+ position-sensitive damping technology
- Triple-piston design with multi-stage compression and rebound valving
- Dual Speed Adjustment for lowand high-speed compression
- Integrated JCO internal hydraulic bump stop
- Threaded spring seat for adjustable front ride height
- Remote reservoir improves cooling and performance under sustained use
- Anodized bolt-on reservoir mount included
- Large 60mm shock body for increased oil volume and control
- Designed for light trucks and SUVs with off-road demands
- 🧠 Technical Specifications
- Shock Type: Coilover, Front Left
- Shock Body Diameter: 60mm
- Adjustment: Dual Speed Compression + Ride Height
- Lift Range: Approx. 0.9" – 2.6" (application dependent)
- Reservoir: Remote, bolt-on mount included
- Position: Front Left (Driver Side)

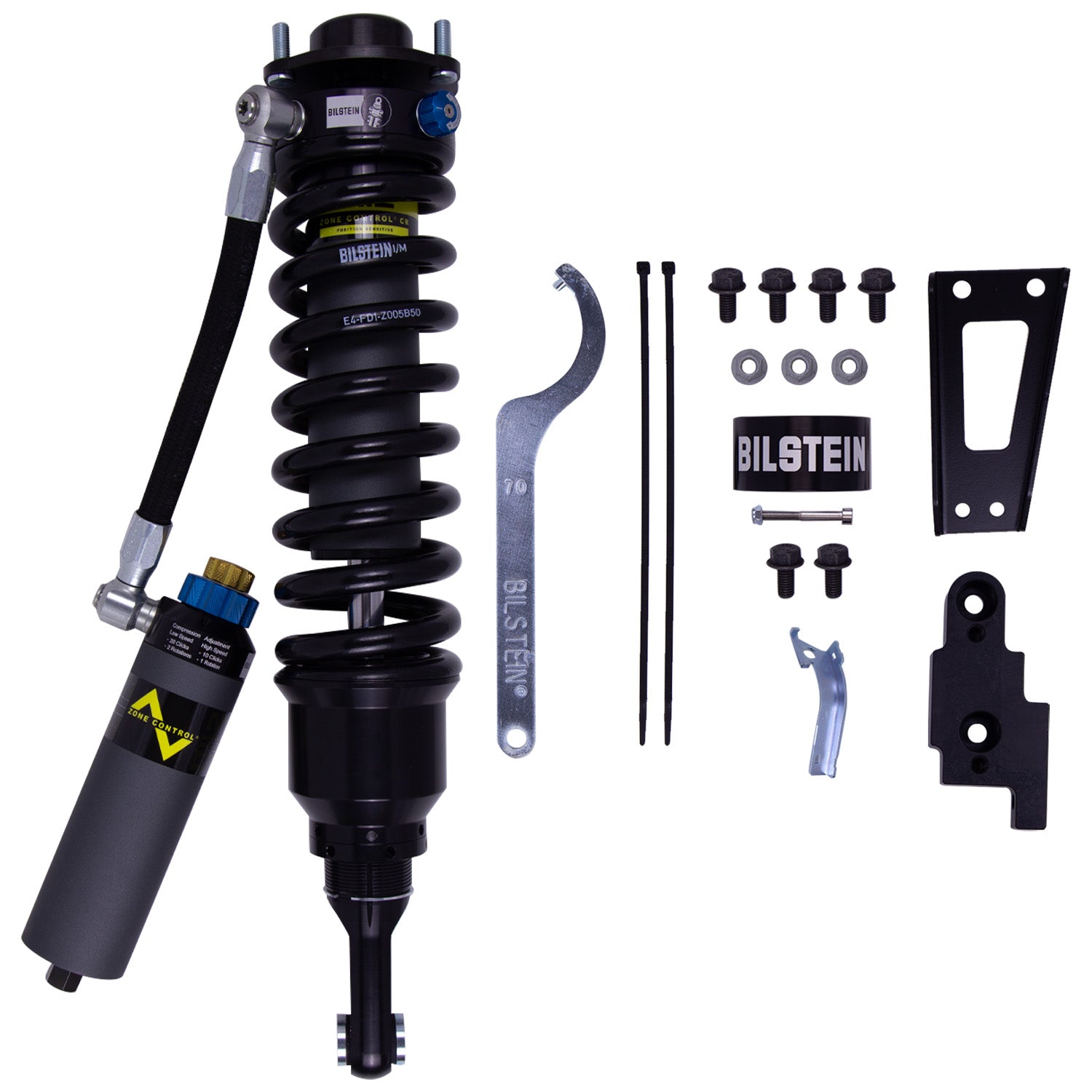

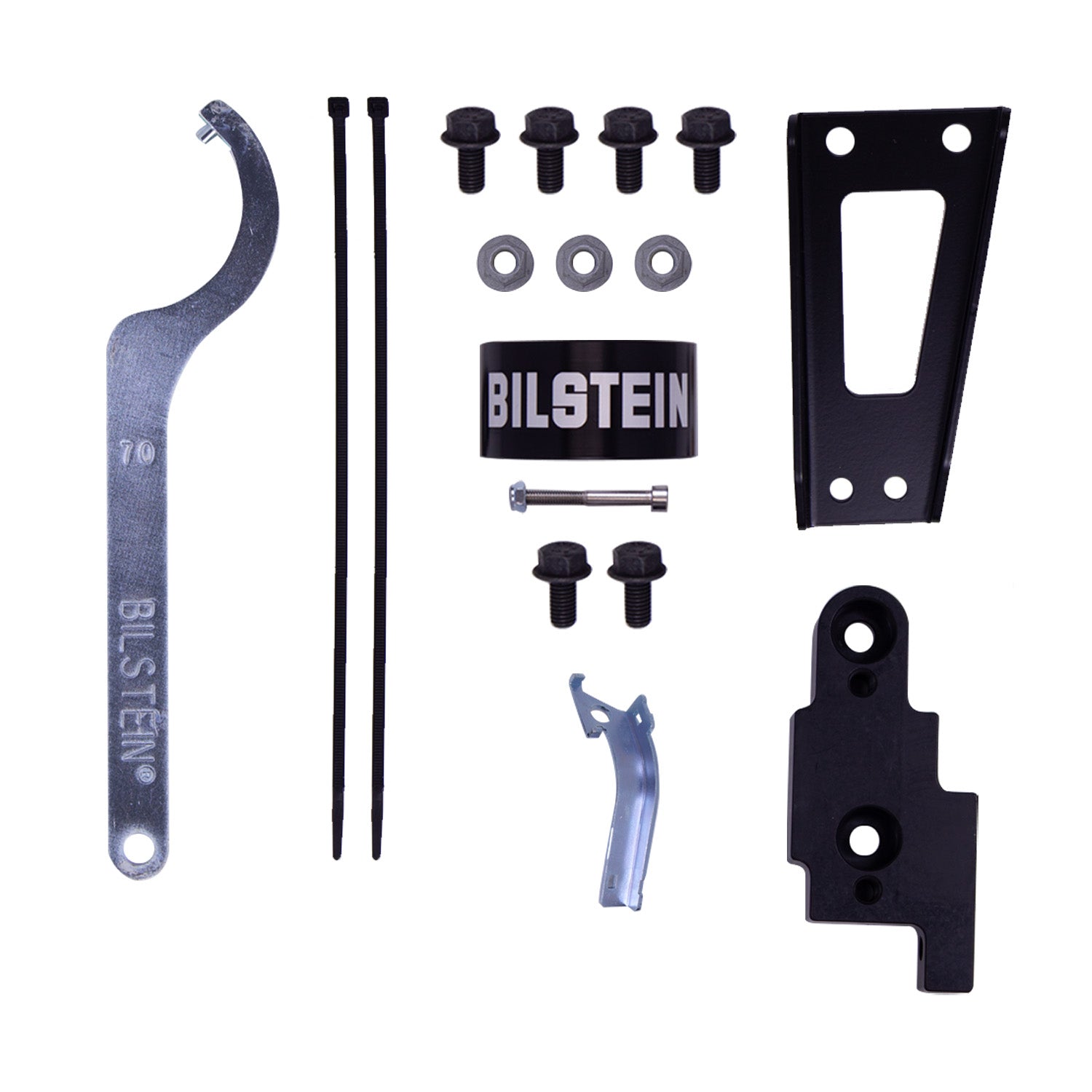

📦 What’s Included
- (1) Bilstein B8 8112 Front Left Coilover Module
- Remote reservoir
- Bolt-on anodized reservoir chassis mount
- Pre-installed threaded spring seat
- Installation hardware
🛡 Warranty
- Manufacturer Limited Warranty
⚠️ Fitment Notes
- Toyota Tacoma (2005–2023)
- Important Notes:
- Front left (driver-side) corner module only
- Aftermarket upper control arms required
- Bilstein B8 Upper Control Arm Kit #51-304683 recommended
- Alignment required after installation
