🧾 Overview
The Bilstein B8 6112 Suspension Kit 47-325593 is a coilover suspension upgrade designed to increase ground clearance, tire fitment, and wheel travel for the 2021–2024 Ford Bronco. Built around Bilstein’s larger 60 mm monotube shock design with a digressive piston, this kit balances strong off-road capability with refined on-road ride quality.
Multiple snap-ring grooves and adjustable spring seats allow ride height tuning to suit different lift requirements and tire sizes, making it an ideal choice for drivers seeking improved clearance and suspension performance without sacrificing daily-driving comfort.
✔ Adjustable front lift with snap-ring positions
✔ 60 mm digressive piston for enhanced damping control
✔ Matched coil springs for balanced travel
✔ Designed for Bronco off-road upgrades
✔ Direct bolt-on suspension kit
🛠 Installation
- Direct bolt-on installation using factory mounting locations. Snap-ring grooves and adjustable spring seats allow the desired rear ride height to be set before installation. Professional installation and post-installation alignment are recommended.
📌 Specs
- Key Features & Benefits
- Large 60 mm digressive piston monotube shocks improve damping and control over varied terrain, giving stable ride quality onand off-road.

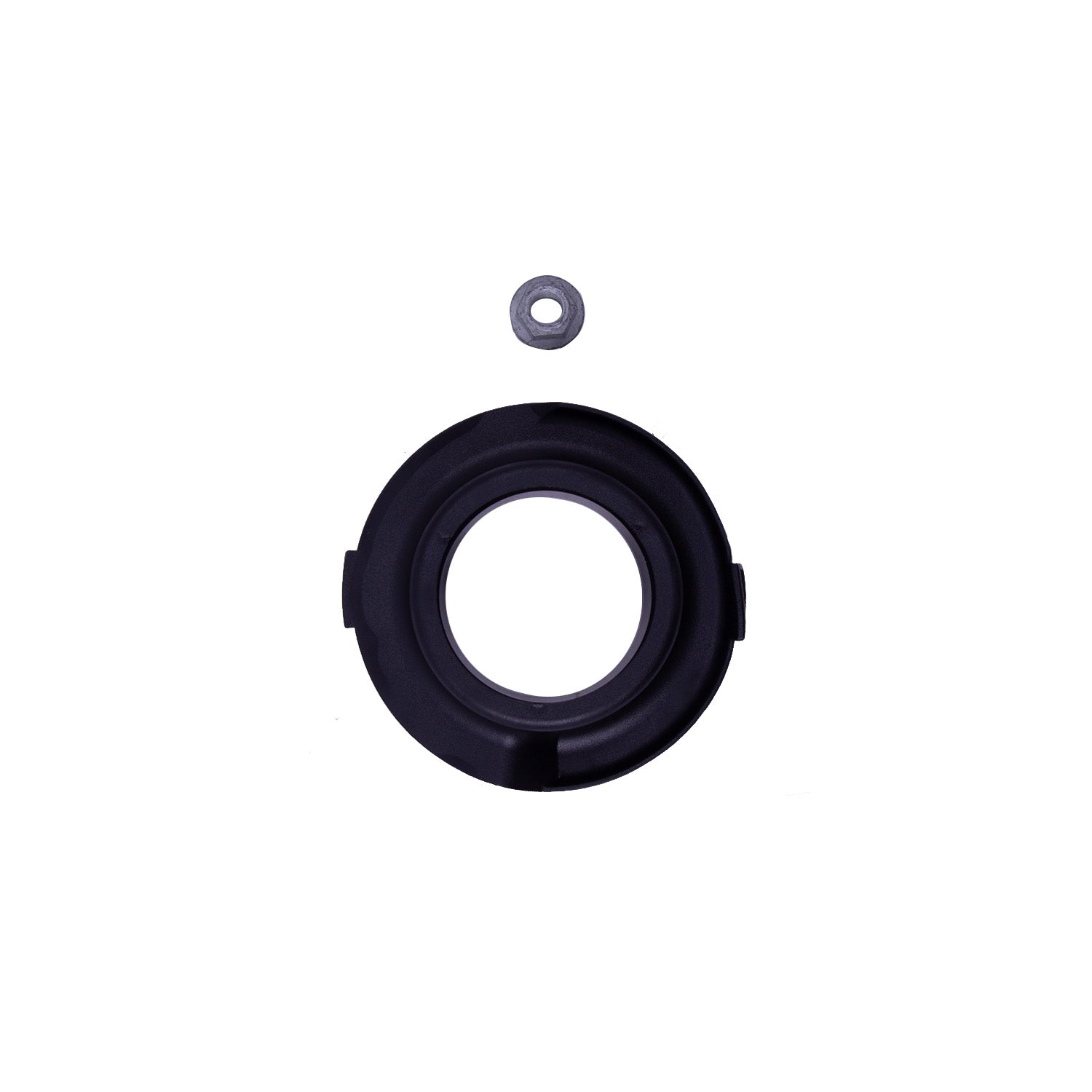

- Adjustable spring seats and multiple snap-ring grooves let you fine-tune lift height and suspension response.
- Cold wound coil springs matched to Bilstein shocks help maintain balanced performance and durability.
- Designed specifically for Bronco off-road use with direct bolt-on installation.
📘 Specifications
- Brand: Bilstein
- Part Number: 47-325593
- Series: B8 6112
- System Type: Suspension Kit (Rear coilover)
- Shock Type: Monotube with digressive piston
- Shock Diameter: 60 mm
- Spring Type: Matched cold wound coil springs
- Installation Type: Bolt-on
- Adjustability: Ride height adjustable via snap-ring positions
- Warranty: Manufacturer warranty
📦 What’s Included (What’s in the Box)

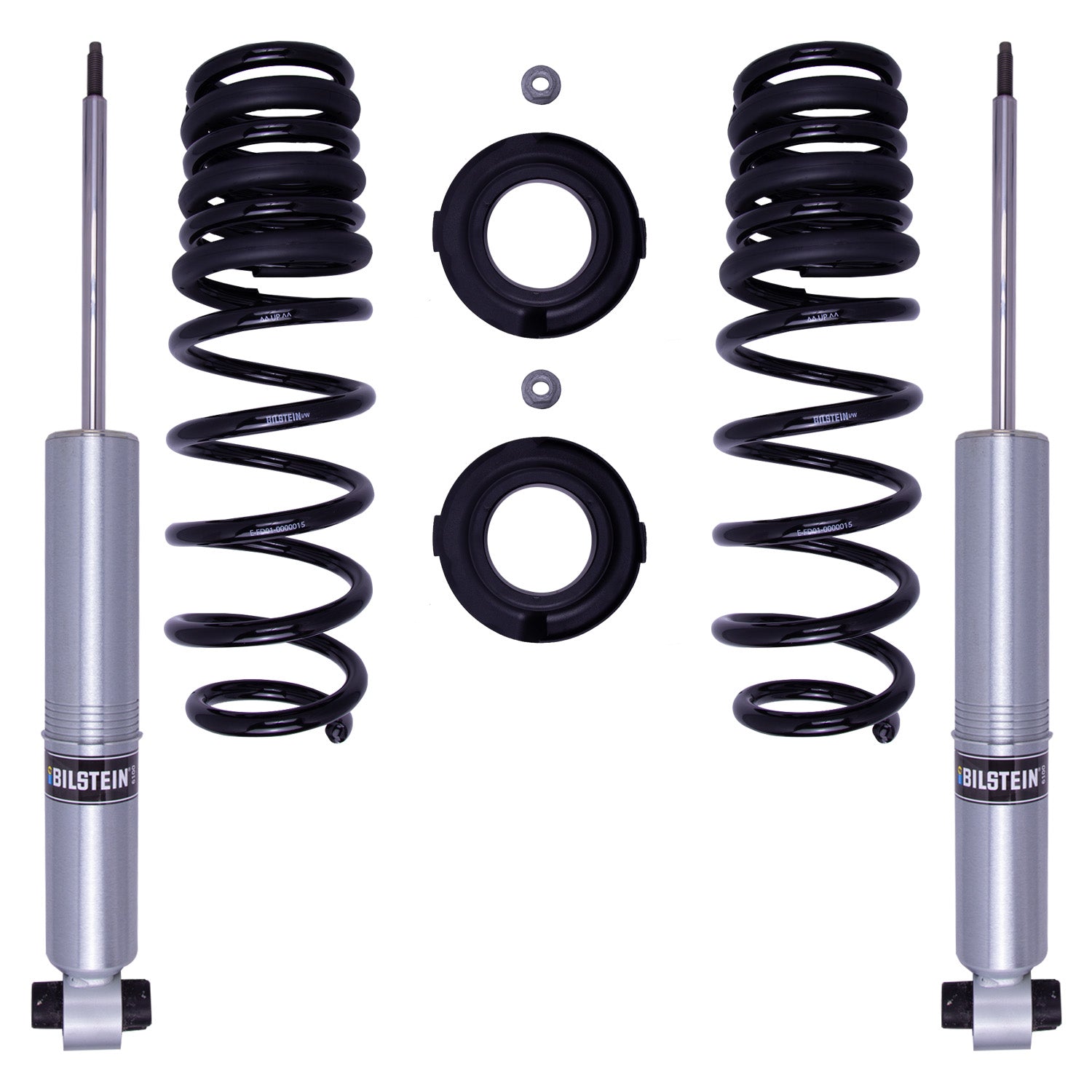

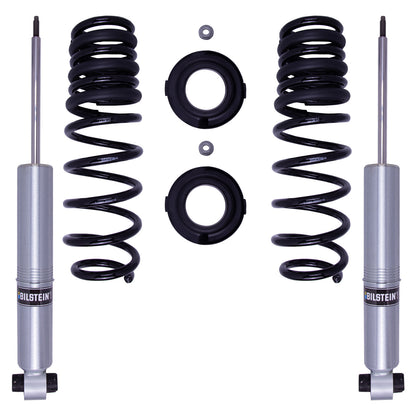

- (2) Bilstein 60 mm B8 6112 Rear Coilover Shock Absorbers (with springs and spring seats included)
🛡 Warranty
- Manufacturer-backed warranty provided by Bilstein.
⚠️ Fitment Notes
- Ford Bronco
- 2021–2024 Ford Bronco 4WD (Rear suspension application)
⚠️ Fitment Notes
- This is a rear suspension B8 6112 coilover kit.
- Does not include front suspension components.
- Lift height and travel depend on vehicle configuration and spring seat adjustment.
- Professional installation and alignment are recommended.
