🧾 Overview

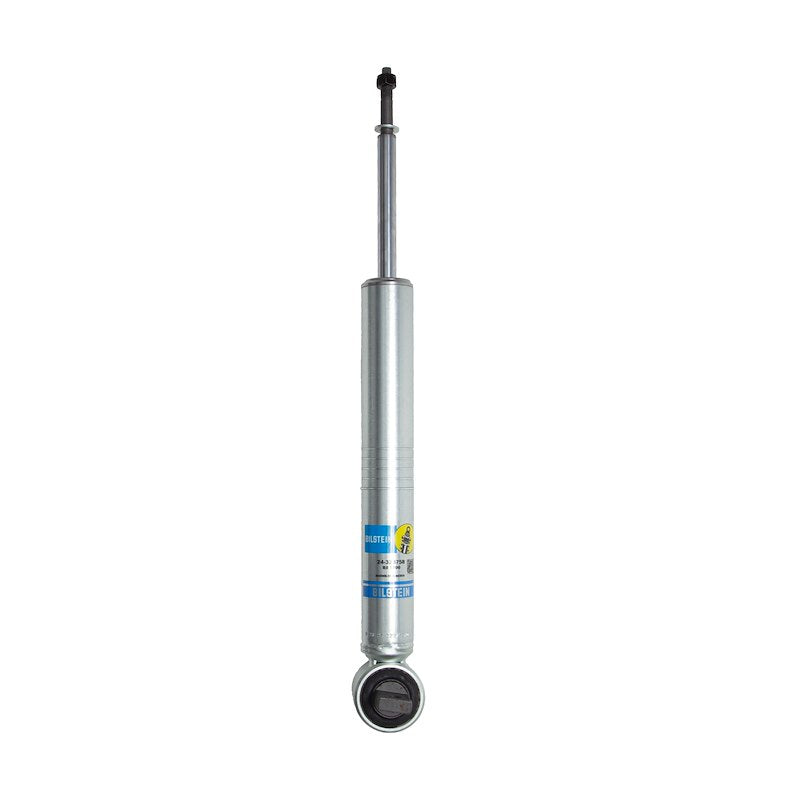

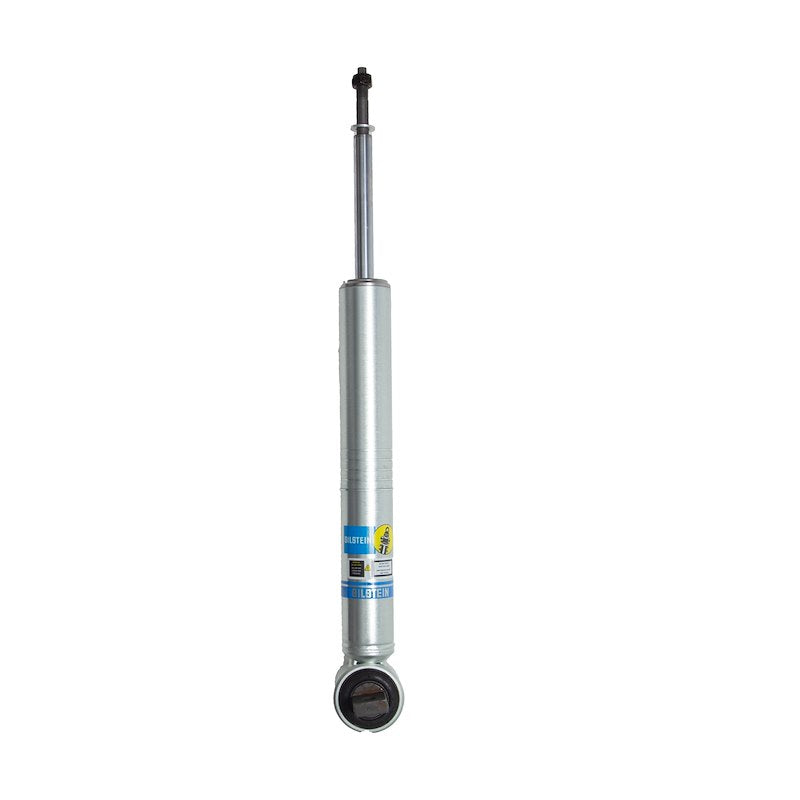

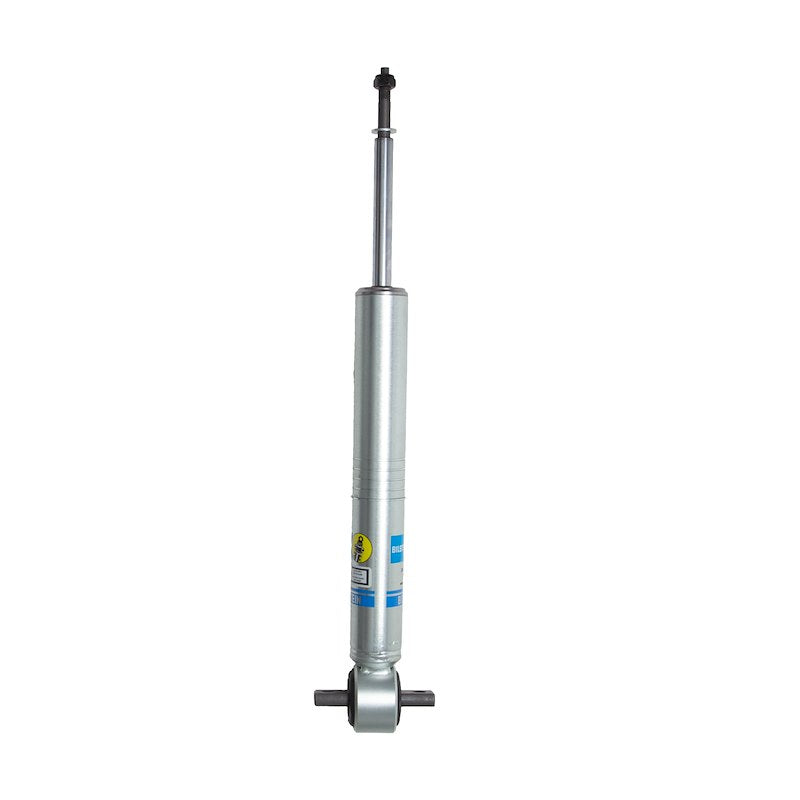

The Bilstein B8 5100 Ride Height Adjustable Front Shock Absorber is engineered to improve front suspension control and allow ride height adjustment on 2021–2024 Ford F-150 trucks. Featuring a high-pressure gas-charged monotube design with an adjustable lower spring seat, this shock lets you fine-tune front ride height from 0 up to ~2.5 inches of lift while maintaining consistent damping performance for both daily driving and off-road use. This version is specifically without Continuously Controlled Damping (CCD), making it ideal for non-adaptive front suspension setups.
✔ Provides 0–2.5″ front lift
✔ Gas-charged monotube design for consistent damping
✔ Adjustable spring seat for ride height tuning
✔ Sold individually — most applications require (2) shocks
✔ Compatible with non-CCD front suspension setups
🛠 Installation
- Direct replacement front shock absorber with adjustable lower spring seat
- Adjustable spring seat allows 0–~2.5″ front lift range
- Uses factory mounting points — no cutting or fabrication required
- DIY-friendly install with basic hand tools
- No post-installation adjustments required once set
📌 Specs
- Position: Front
- Series: Bilstein B8 5100 Ride Height Adjustable
- Internal Design: High-pressure gas-charged monotube
- Body Design: Snap-ring grooved body (coilover style)
- Body Diameter: 2.0 inches
- Piston Diameter: 46mm
- Shaft Diameter: 18mm
- Upper Mount Type: Stem
- Spring Seat Included: Yes
- Boot Included: No
- Adjustable Damping: Non-adjustable (no CCD)
- Lift Capability: 0–~2.5″ front ride height adjustment
- Quantity: Price shown is for (1) shock — most applications require (2)
⚠️ Fitment Notes
- 2021–2024 Ford F-150
- Designed for front suspension ride height tuning
- Provides 0–2.5″ front lift
- Fits non-CCD front suspension systems
