🧾 Overview

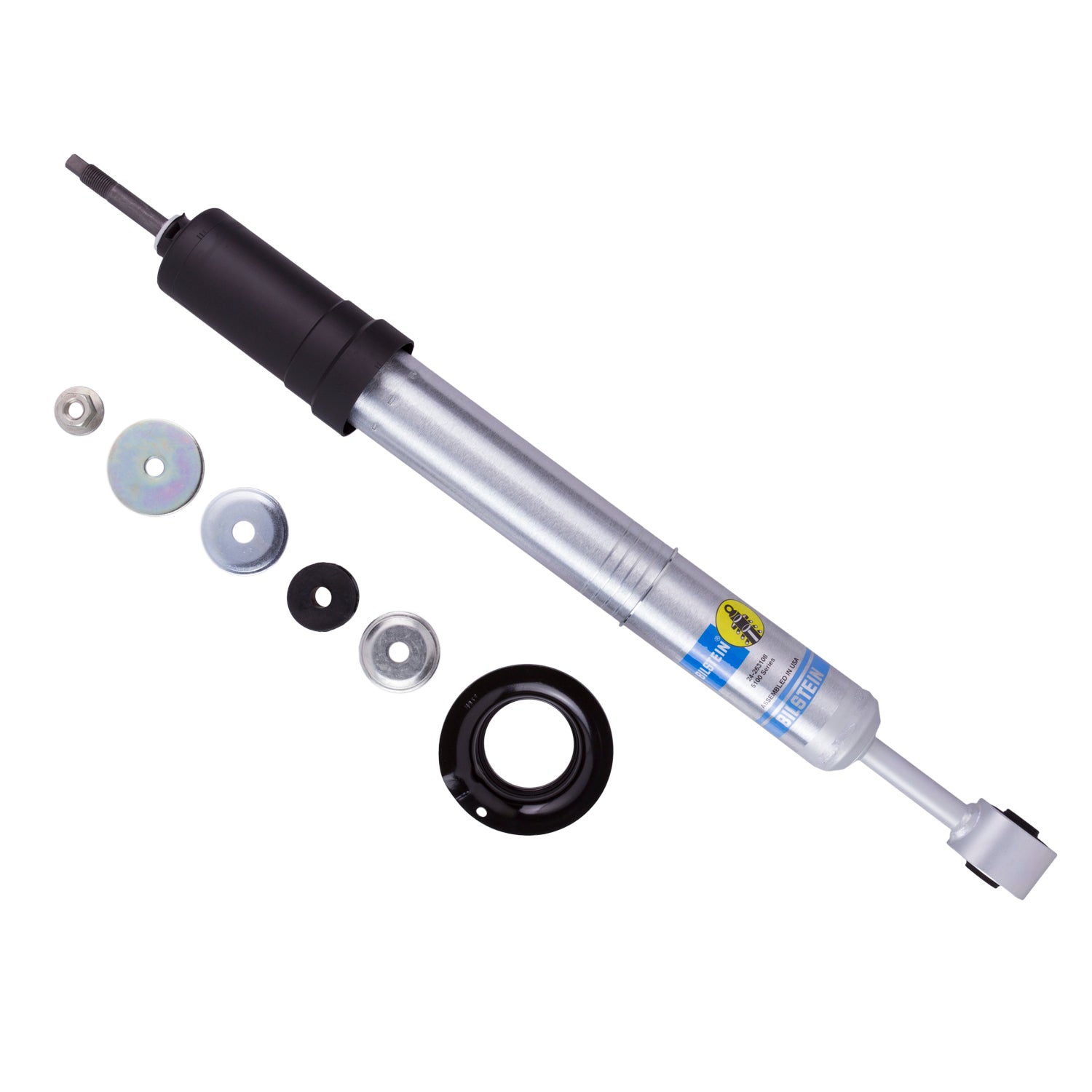

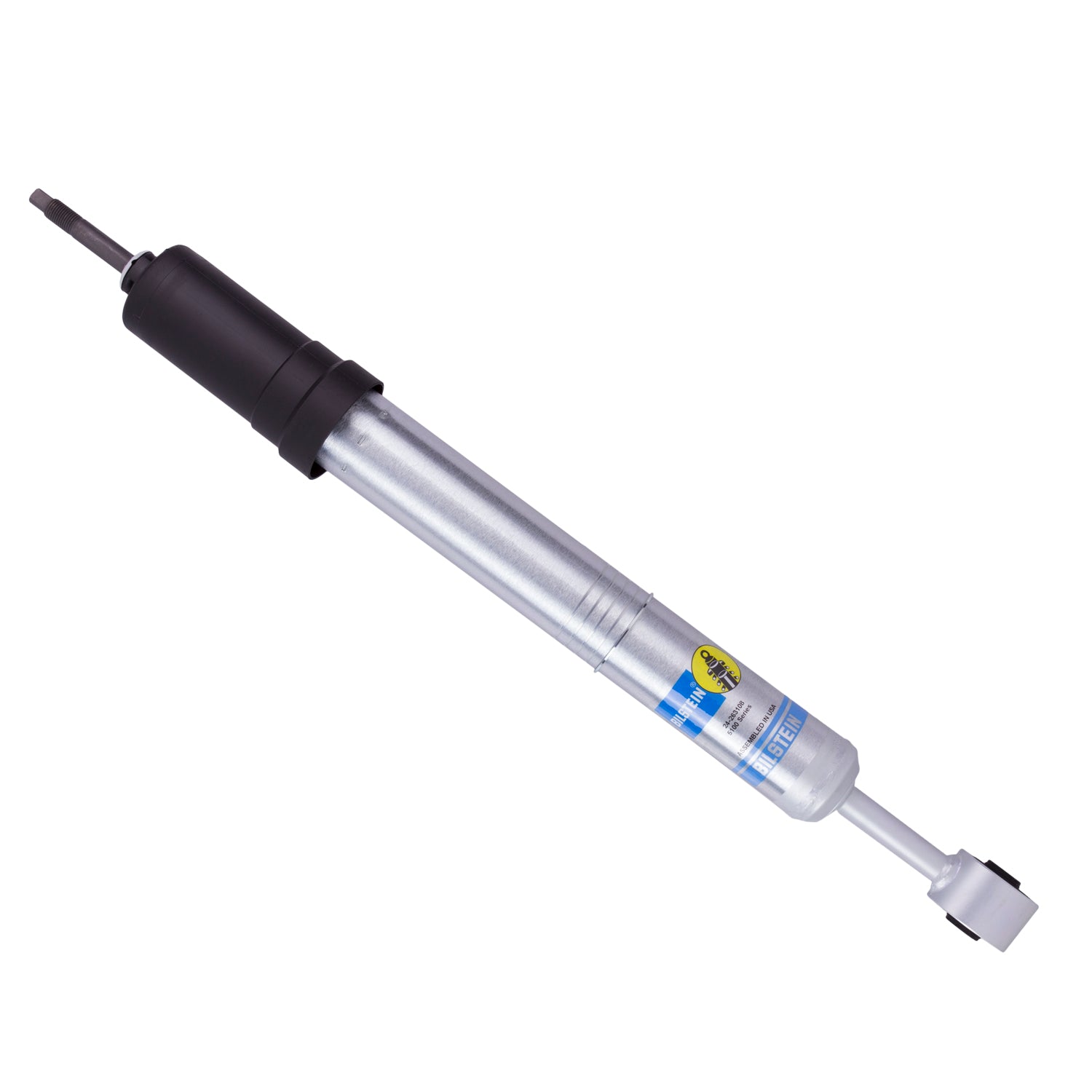

The Bilstein B8 5100 Ride Height Adjustable Front Shock Absorber is engineered to improve front suspension performance and allow controlled ride height adjustment on Toyota Tacoma models from 2016–2023. Featuring a high-pressure gas-charged monotube design with an adjustable lower spring seat, this shock lets you tune front ride height from 0 up to ~2.4 inches while keeping consistent damping for on- and off-road driving.
✔ Adjustable front ride height (0–~2.4″)
✔ Gas-charged monotube design for consistent damping
✔ Ideal for lifted Tacoma front suspension tuning
✔ Sold individually — most applications require (2) shocks
✔ Fits models without Adaptive Variable Suspension (AVS)
🛠 Installation
- Direct replacement front shock absorber with adjustable lower spring seat
- Adjustable spring seat allows 0–~2.4″ front lift range
- Uses factory mounting points — no cutting or fabrication required
- DIY-friendly installation with basic hand tools
- No post-installation adjustments required once set
📌 Specs
- Position: Front
- Series: Bilstein B8 5100 Ride Height Adjustable
- Internal Design: High-pressure gas-charged monotube
- Body Design: Snap-ring grooved body (coilover style)
- Body Diameter: 2.0 inches
- Piston Diameter: 46mm
- Shaft Diameter: 18mm
- Upper Mount Type: Stem
- Spring Seat Included: Yes
- Boot Included: No
- Adjustable Damping: Non-adjustable
- Lift Capability: 0–~2.4″ front ride height adjustment
- Quantity: Price shown is for (1) shock — most applications require (2)
⚠️ Fitment Notes
- 2016–2023 Toyota Tacoma
- Designed for front suspension ride height tuning
- Fits vehicles with up to ~2.4″ front lift
- Fits models without Adaptive Variable Suspension (AVS)
