🧾 Overview

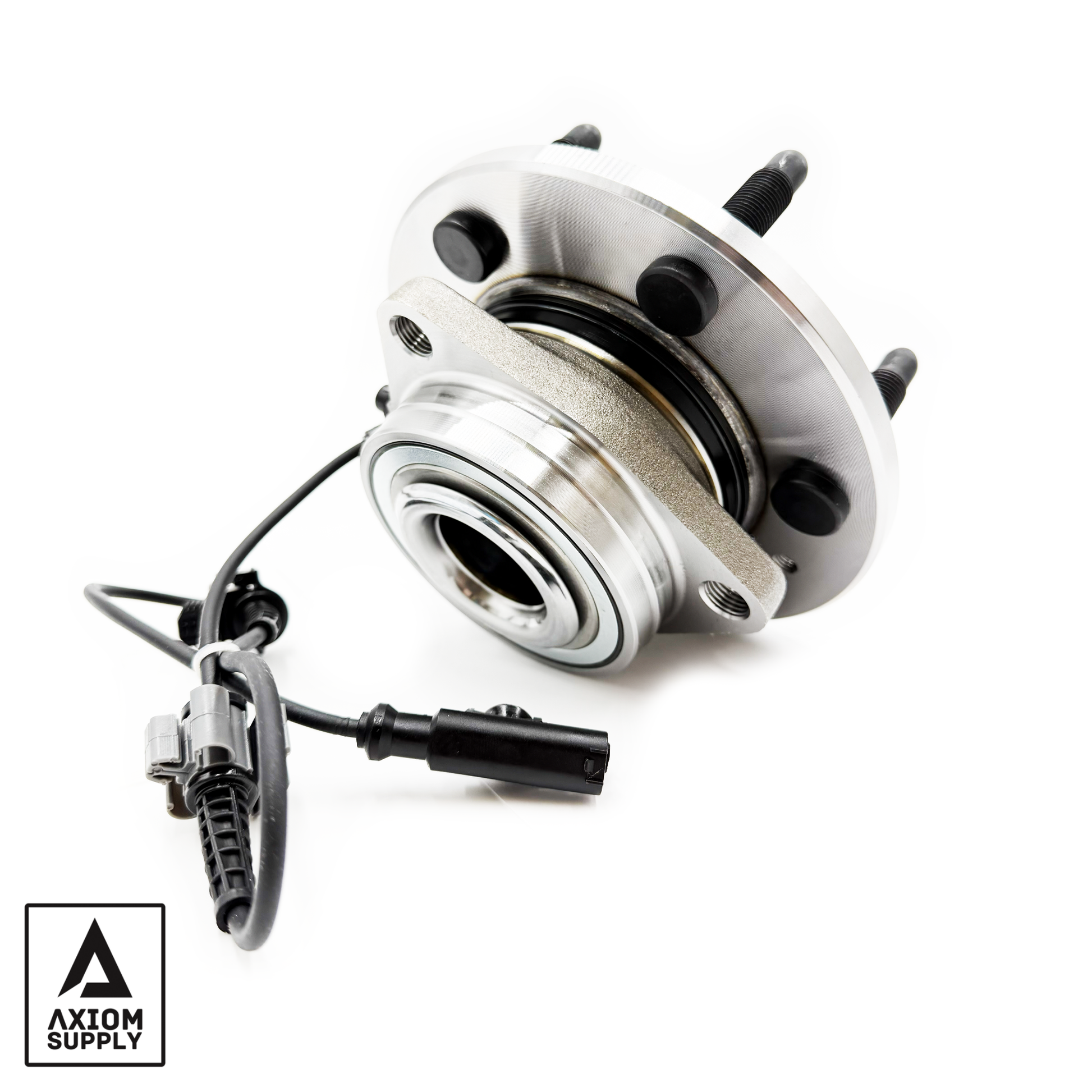

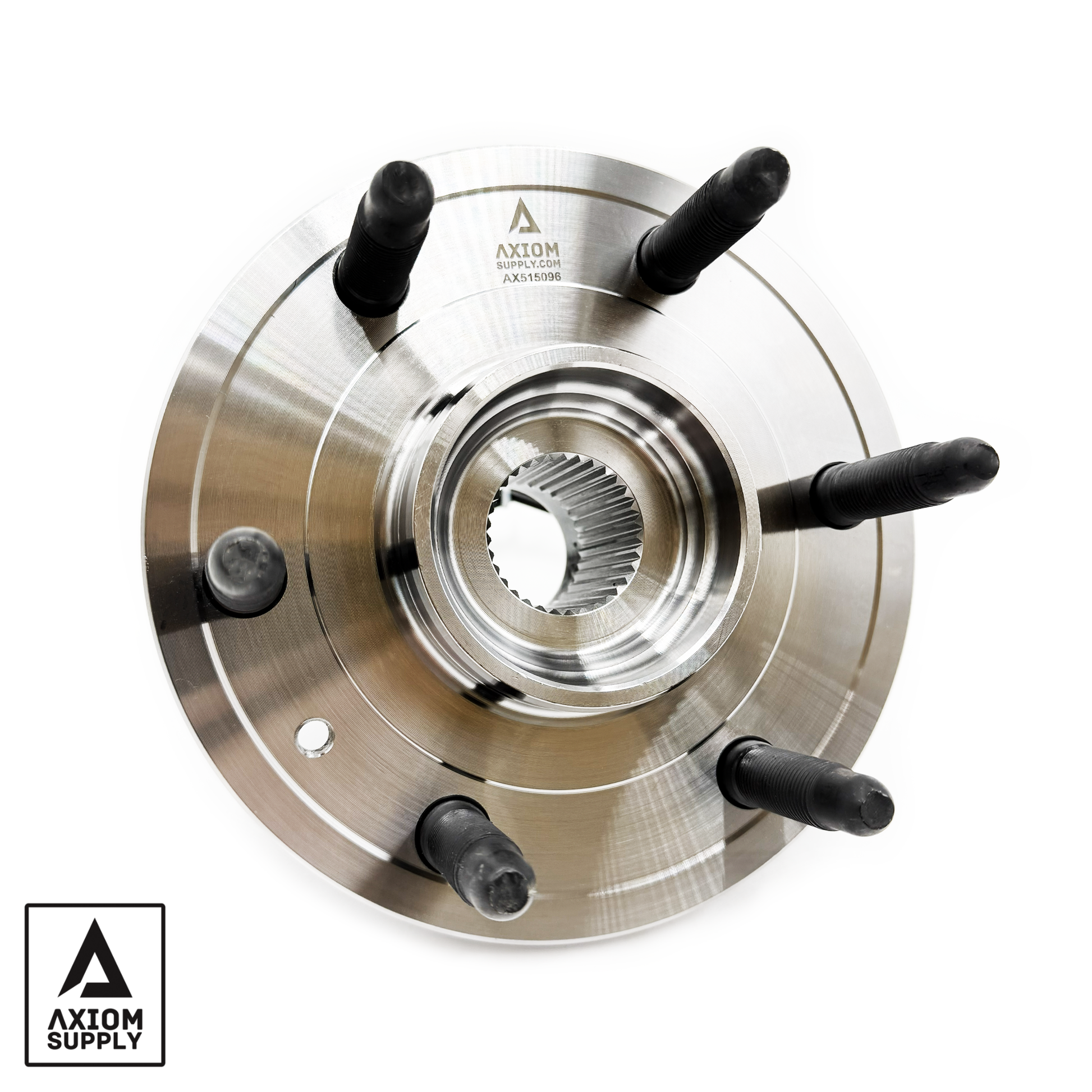

The Axiom Supply Wheel Bearing & Hub Assembly is engineered for 2007–2013 GM 1500 series trucks and 2007–2014 GM full-size SUVs equipped with 6-lug hubs. Built with precision tapered roller bearings and high-performance grease, this assembly delivers smooth, maintenance-free performance for daily driving, towing, and off-road use.
Designed with a reinforced hub structure to reduce hub-face deflection under load, this bolt-in assembly improves steering response, braking stability, and long-term durability. Compatible with both 2WD and 4WD configurations, it installs as a direct replacement for the factory hub assembly.
✔ Precision tapered roller bearings
✔ 6 × M14-1.50 lug stud configuration
✔ Integrated ABS sensor
✔ Compatible with 2WD & 4WD
🛠 Installation
- Direct bolt-on replacement for the factory hub assembly.
- No modifications required.
- Typical installation time: approximately 2 hours.
- Torque Specifications:
- Axle Nut: 177 lb-ft
- Spindle Bolts: 133 lb-ft
- Main Caliper Bolts: 125 lb-ft
📌 Specs
- Key Features & Benefits
- Precision Tapered Roller Bearings
- Grade 10.9 Zinc-Plated Studs
- Integrated Durable ABS Sensor
- Heavy-Duty Bolt-In Construction
- Engineered for Towing & Heavy Use
📘 Specifications
- Lug Pattern: 6 × M14-1.50
- Drive Type: 2WD & 4WD
- ABS Sensor: Integrated
- Hub Position: Front
- Sold As: Single Hub Assembly
📦 What’s Included (What’s in the Box)
- (1) Wheel Bearing & Hub Assembly
- Integrated ABS Wire
- 🔁 Interchange Part Numbers
- Timken SP500301
- SKF BR930661
- ACDelco FW303 / FW346
- Moog 515096
- Mevotech H515096
- Kryptonite KR6301
- GM OEM 10393171 / 25918329 / 25676819
- Axiom AX515096
🛡 Warranty
- Covered under The Axiom No-Nonsense Lifetime Warranty.
- Warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage.
- Push it to the limit—we don’t care. If the part lets you down, it will be made right.
⚠️ Fitment Notes
- 2007–2013 Chevrolet Silverado 1500
- 2007–2013 GMC Sierra 1500
- 2007–2013 Chevrolet Avalanche
- 2007–2014 Chevrolet Tahoe
- 2007–2014 Chevrolet Suburban 1500
- 2007–2014 GMC Yukon
- 2007–2014 GMC Yukon XL 1500
⚠️ Fitment Notes
- 6-lug models only
- Compatible with both 2WD and 4WD configurations
- Fits left or right front hub position
