🧾 Overview

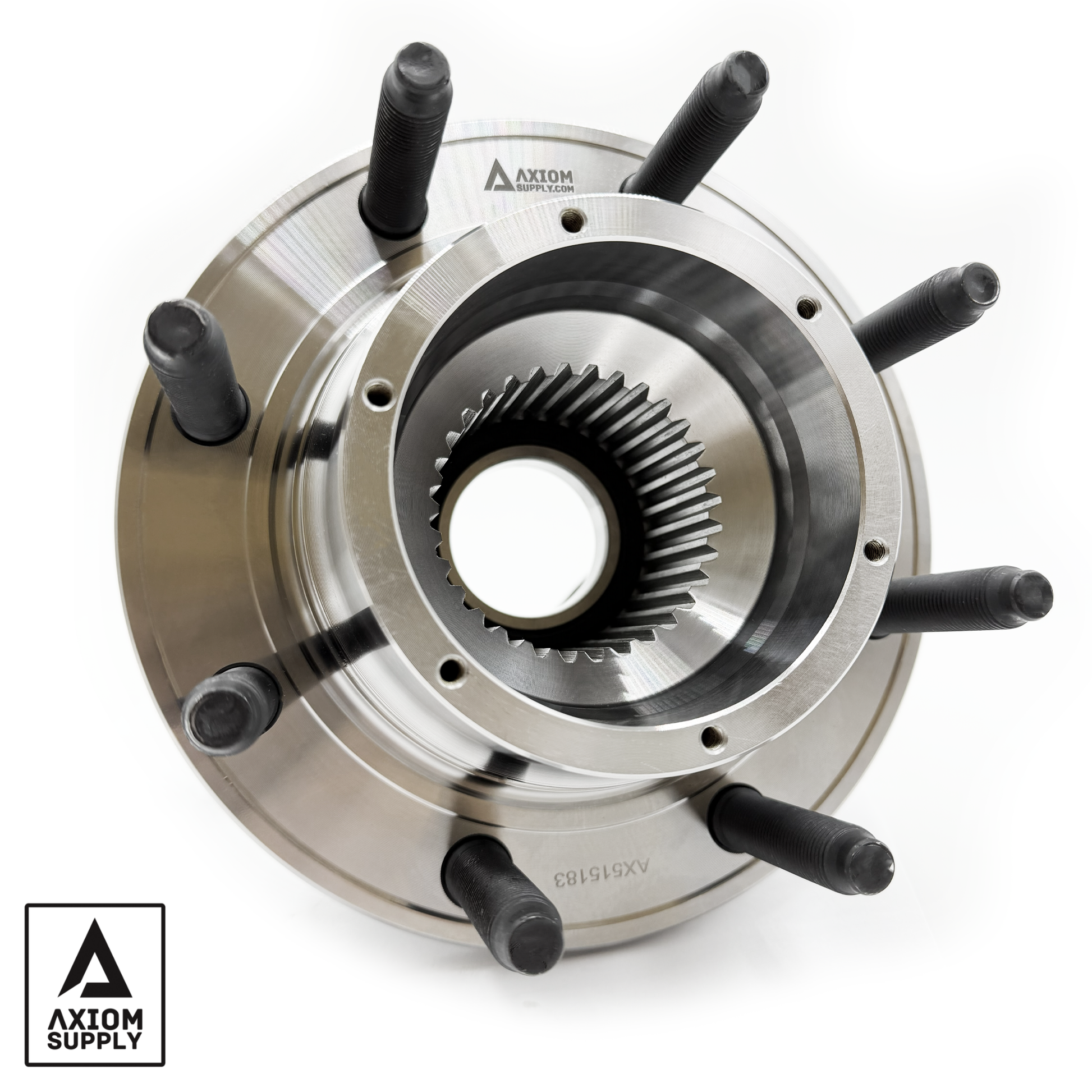

The Axiom Supply Wheel Bearing & Hub Assembly is engineered specifically for 2017–2022 Ford Super Duty F250 and F350 4WD trucks with Single Rear Wheel (SRW) configuration. Built with precision tapered roller bearings and high-performance grease, this assembly delivers smooth, maintenance-free operation under heavy loads.
Designed for towing, lifted applications, oversized tires, and daily work use, Axiom’s proprietary hub structure reduces hub-face deflection to improve steering response and braking stability. Each unit is a complete bolt-in assembly compatible with both left and right spindles.
✔ Precision tapered roller bearings
✔ 8 × M14-1.5 fine thread studs

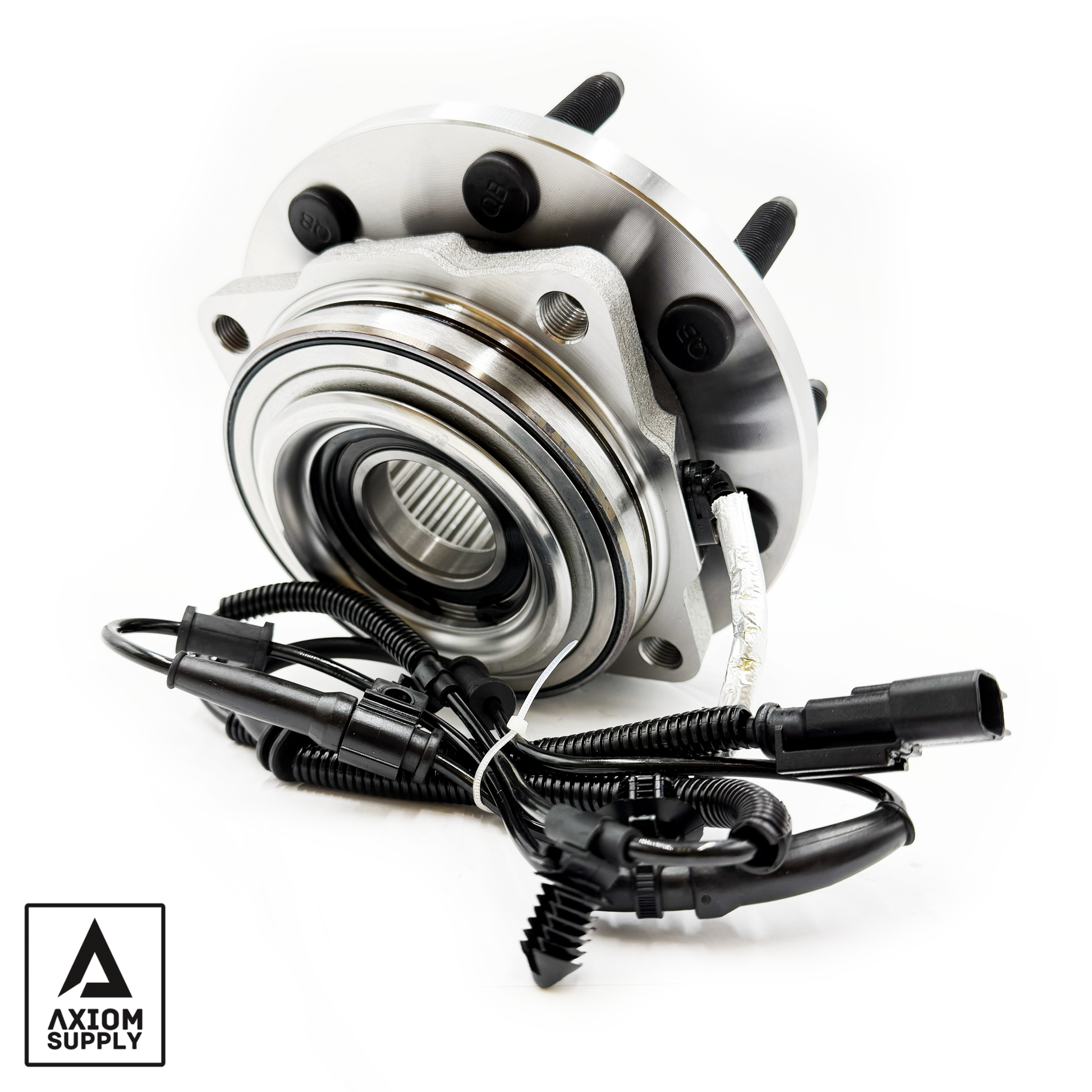

✔ Integrated ABS sensor
✔ Heavy-duty SRW bolt-in replacement
🛠 Installation
- Direct bolt-on installation.
- No modifications required.
- Typical install time: approximately 2 hours.
- Torque Specifications:
- Spindle Bolts (4): 133 lb-ft
- Caliper Bolts (2): 166 lb-ft
📌 Specs
- Key Features & Benefits
- Precision Tapered Roller Bearings
- High-Performance Grease
- Grade 10.9 Zinc-Plated Studs
- Integrated Durable ABS Sensor
- Heavy-Duty Bolt-In Construction
📘 Specifications
- Configuration: 8 × M14-1.5 Fine Thread
- Drive Type: 4WD
- Rear Wheel Config: SRW Only
- ABS: Integrated Sensor
- Sold As: Single Hub Assembly

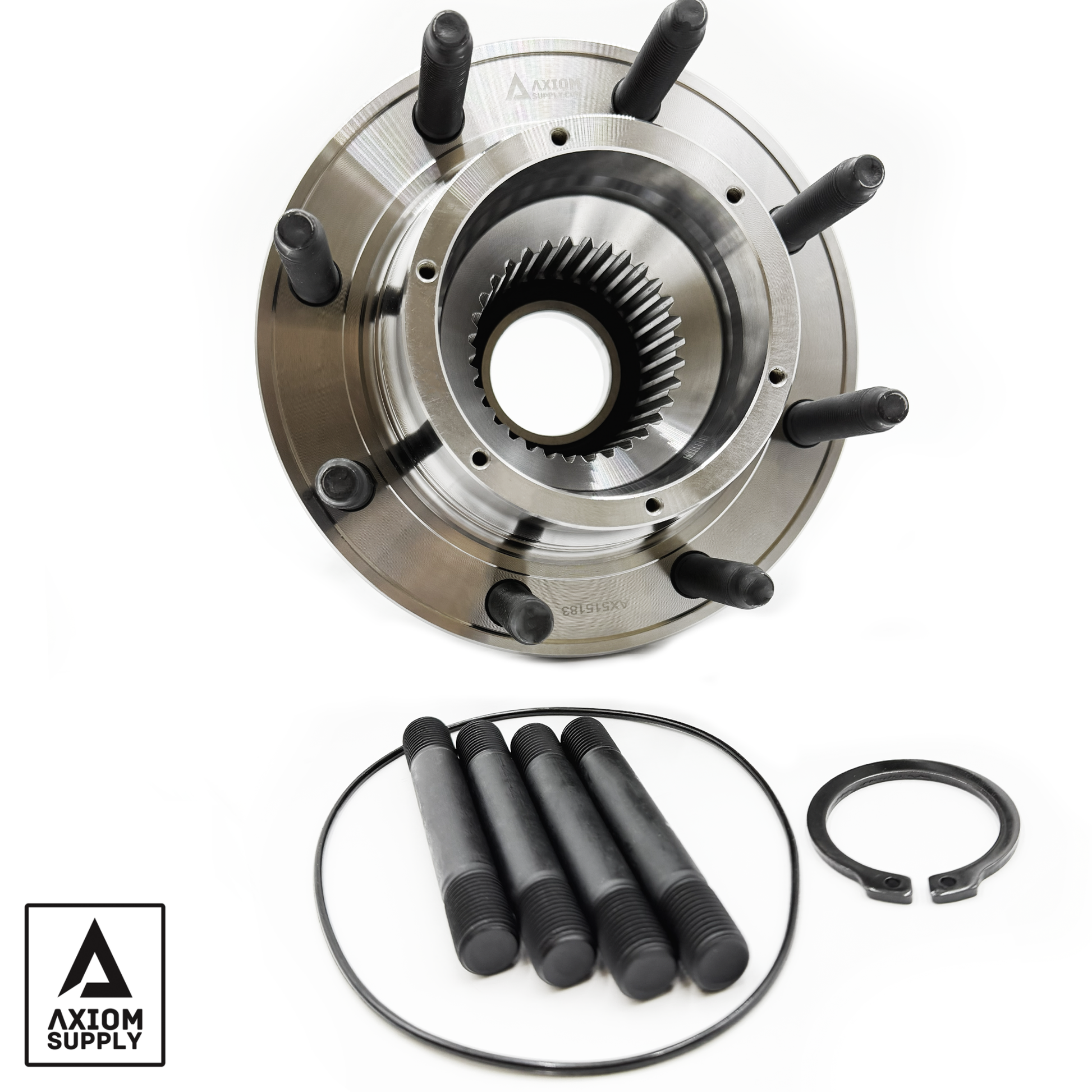

📦 What’s Included (What’s in the Box)
- (1) Wheel Bearing & Hub Assembly
- Integrated ABS Wire
- (4) Mounting Bolts
- (1) O-Ring
- (1) Retainer Ring
- 🔁 Interchange Part Numbers
- Timken HA590722
- Moog 515183
- Motorcraft HC3Z1104C
- SKF BR930963
- NAPA PBR930963
- Axiom AX515183
- (And equivalent cross references)
🛡 Warranty
- Covered under The Axiom No-Nonsense Lifetime Warranty.
- Warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage.
- Push it to the limit—we don’t care. If the part lets you down, it will be made right.
⚠️ Fitment Notes
- 2017–2022 Ford F250 Super Duty 4WD (SRW)
- 2017–2022 Ford F350 Super Duty 4WD (SRW)
⚠️ Fitment Notes
- 4WD models only
- Single Rear Wheel (SRW) configuration ONLY
- 8 × M14-1.5 fine thread lug studs
- Compatible with left or right spindle
