🧾 Overview
Engineered by ARB — a global leader in off-road and overland equipment for over 40 years.
Who This Is For
- Off-road drivers who air down and need reliable trail-side inflation
- Jeep, Bronco, 4Runner & truck owners
- Weekend wheelers and overlanders who want portability
Who This Is Not For
- Permanent onboard compressor installs
- High-volume shop or fleet use
- Budget inflators for small car tires
Free shipping on orders over $250 • Ships from the USA • Easy returns

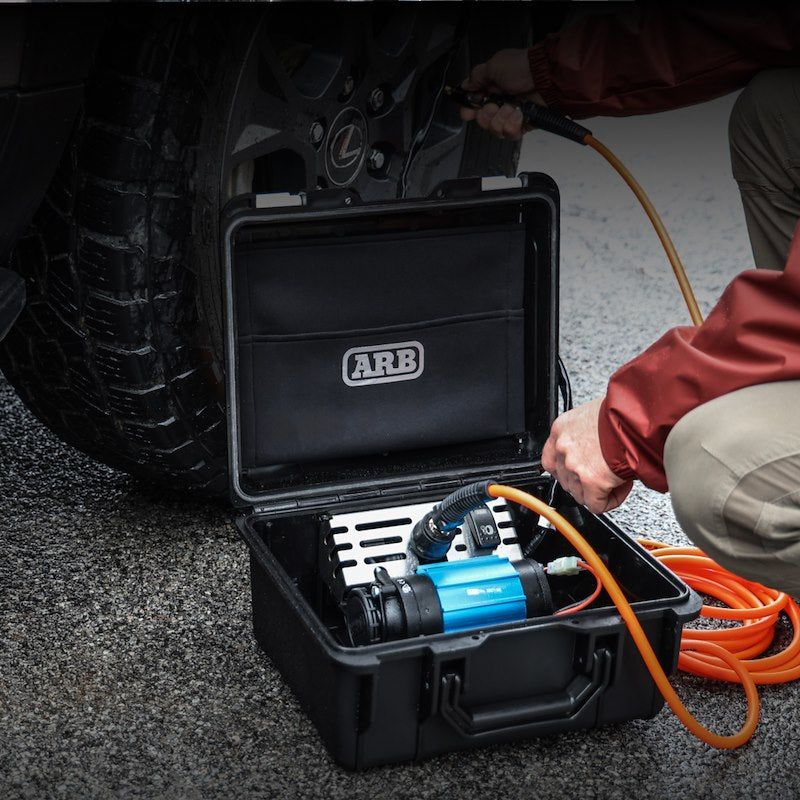

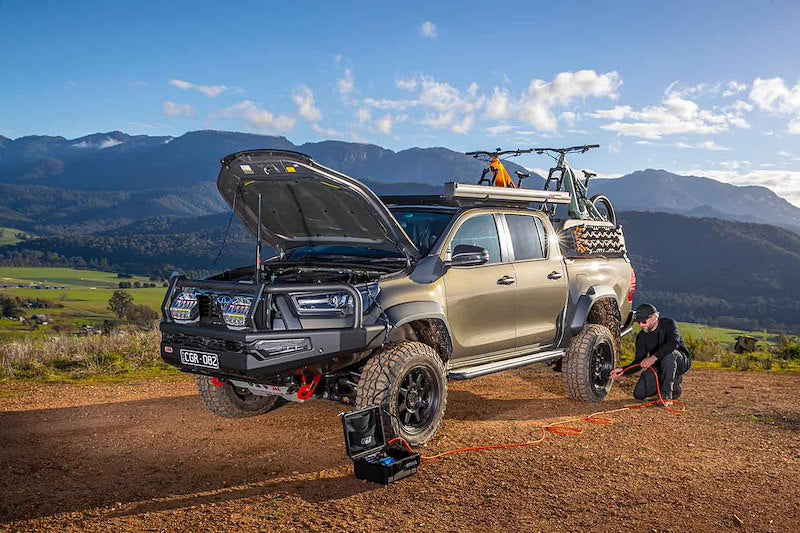

The ARB Single Motor Portable 12V Air Compressor is a compact, dependable air solution designed for off-roaders, overlanders, and weekend adventurers who need reliable onboard air without permanent installation.

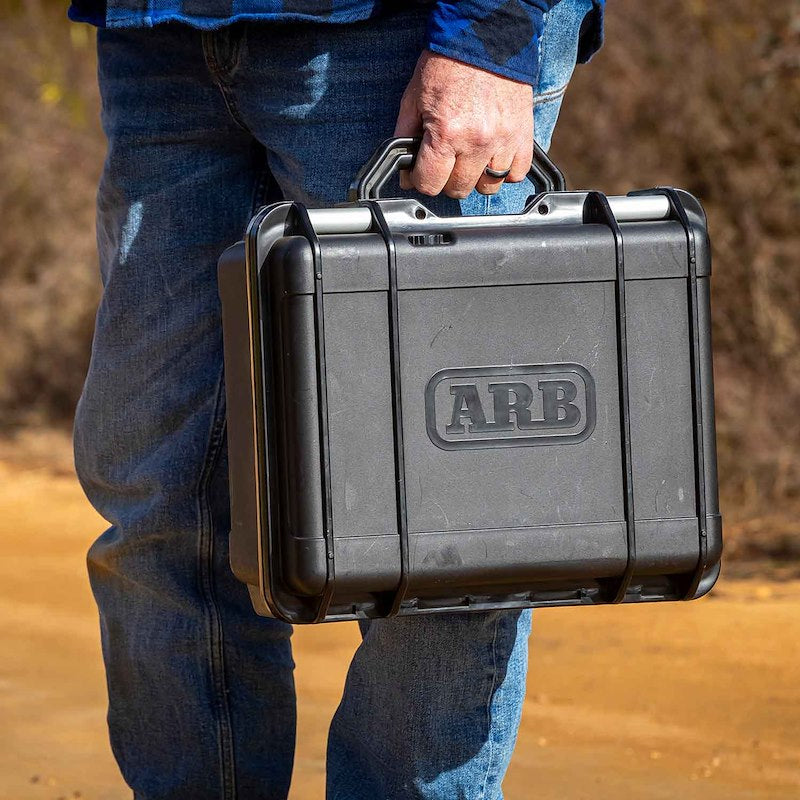

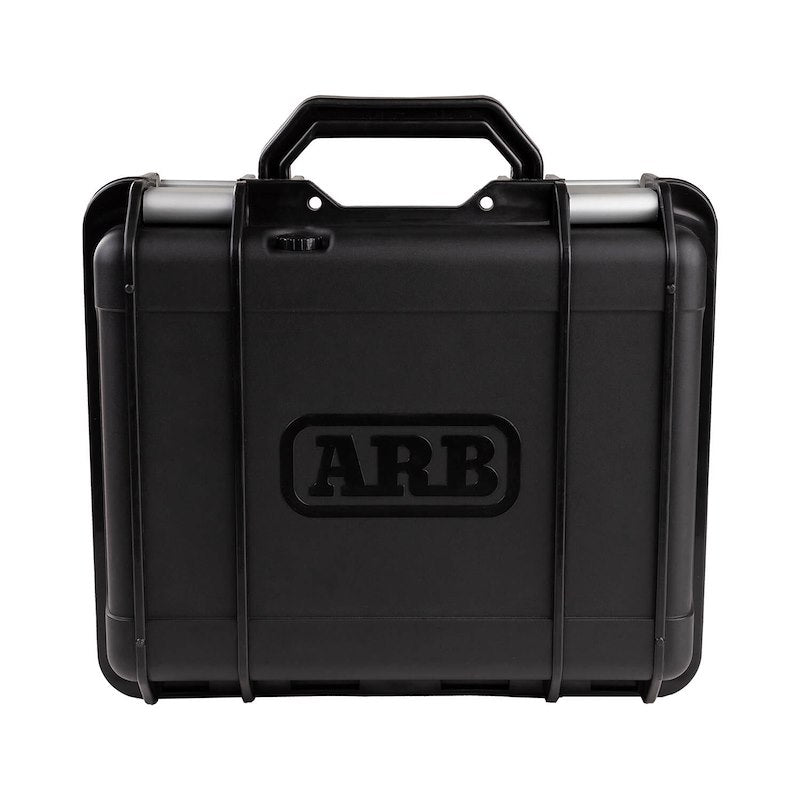

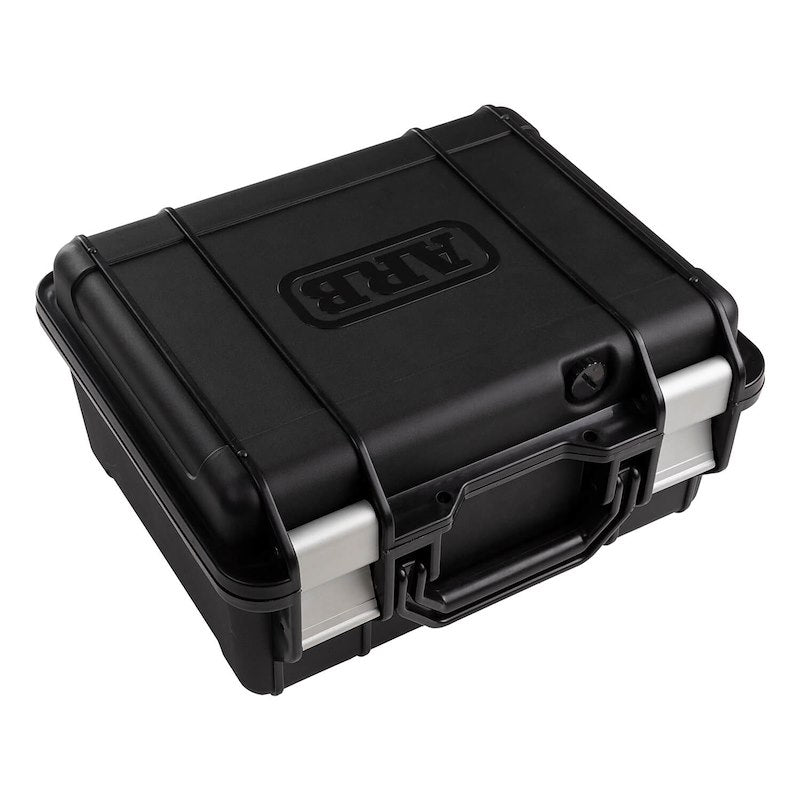

Housed in a weather-proof, impact-resistant polypropylene carry case, this portable ARB compressor is built to withstand harsh trail conditions while remaining easy to transport and store. A stainless-steel heat shield protects hot touch points, making operation safer during extended use.
Featuring a 50% duty cycle, internal thermal protection, and a built-in pressure switch with over-pressure safety valve, this compressor delivers consistent performance for airing up tires, inflatables, and trail accessories after a long day on the dirt.
✔ Portable 12V air compressor for trail and travel use
✔ Weather-proof impact-resistant carry case
✔ Built-in safety systems for reliable operation
✔ Compact size with strong airflow performance
The ARB Single Motor Portable 12V Air Compressor is a compact, dependable air solution...
🛠 Installation
- No permanent installation required

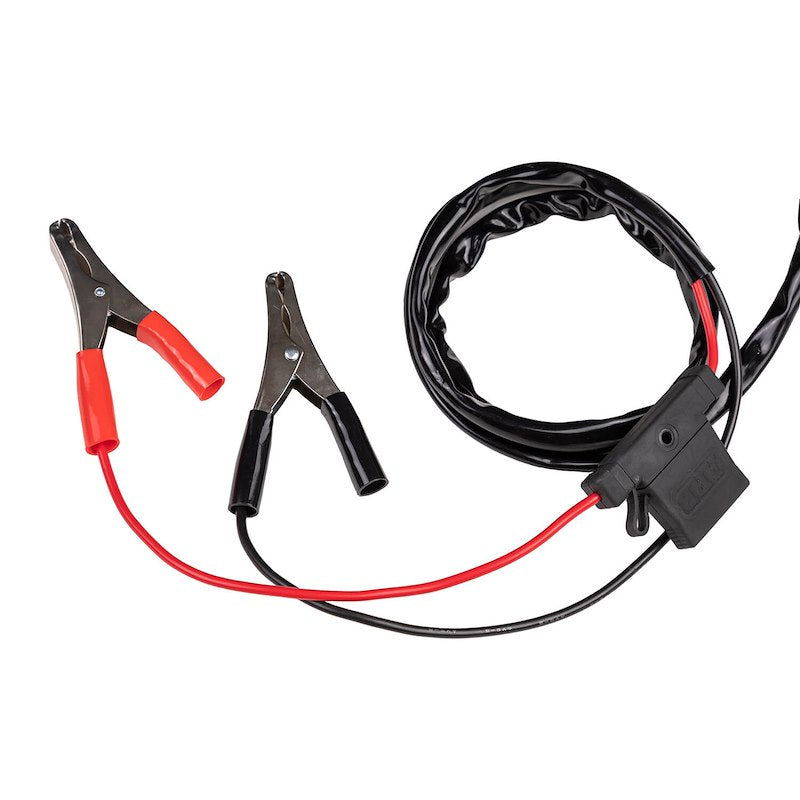

- Connect directly to 12V power source
- Allow adequate airflow around compressor during use
- Let compressor cool before storing after extended operation
📌 Specs
- Built-In Pressure Switch & Safety Valve – Prevents over-pressure damage
- Internal Thermal Protection – Guards motor from extreme heat
- 50% Duty Cycle (30 min on / 30 min off) – Ideal for airing up tires
- Hard-Anodized Cylinder Bore – Reduced friction and longer service life
- Teflon-Impregnated Carbon Fiber Seals – Increased durability and efficiency
- IP55 Rated – Resistant to dust and water intrusion

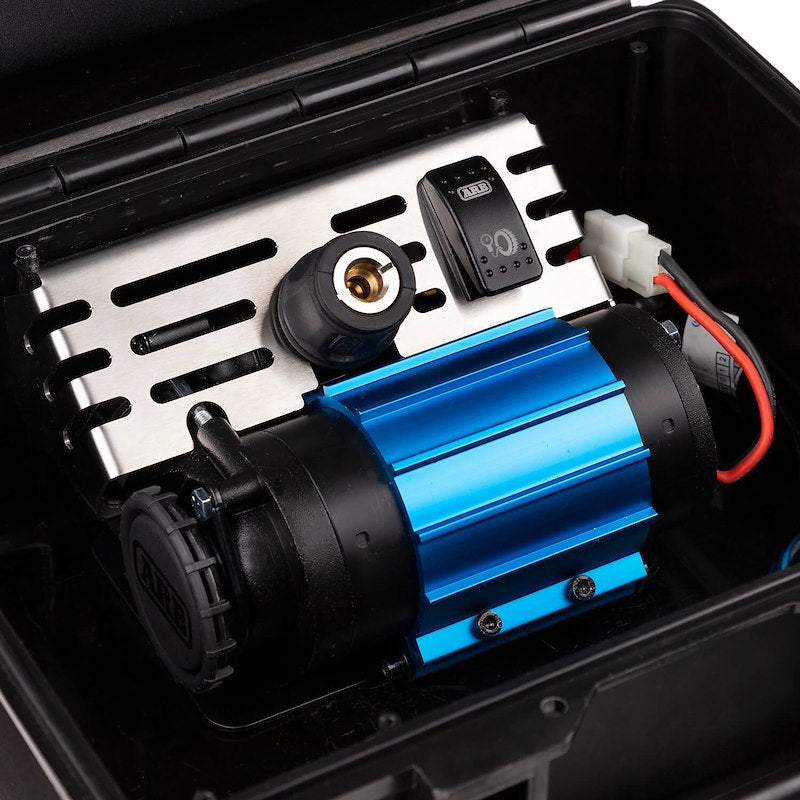

- Stainless Steel Heat Shield – Safer handling during operation
- Portable Design – No mounting or wiring required
- 🧠 Technical Specifications
- Voltage: 12V
- Max PSI: 100 PSI
- Max Amps: 32A
- Duty Cycle: 50% (30 min on / 30 min off)
- Air Flow @ 0 PSI: 3.08 CFM
- Air Flow @ 29 PSI: 2.34 CFM
- IP Rating: IP55
- Width: 12.1 in
- Height: 7.2 in
- Length: 14.0 in
- Weight: 15.4 lb
- Design: Portable
- Prop 65: No
📦 What’s Included

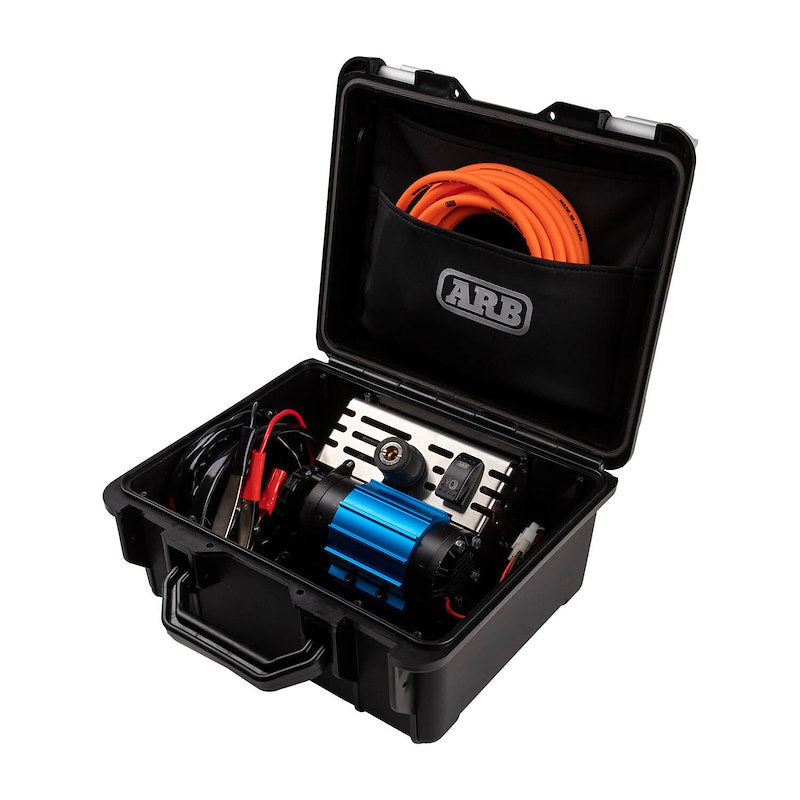

- ARB Single Motor Portable 12V Air Compressor
- Weather-Proof Polypropylene Carry Case

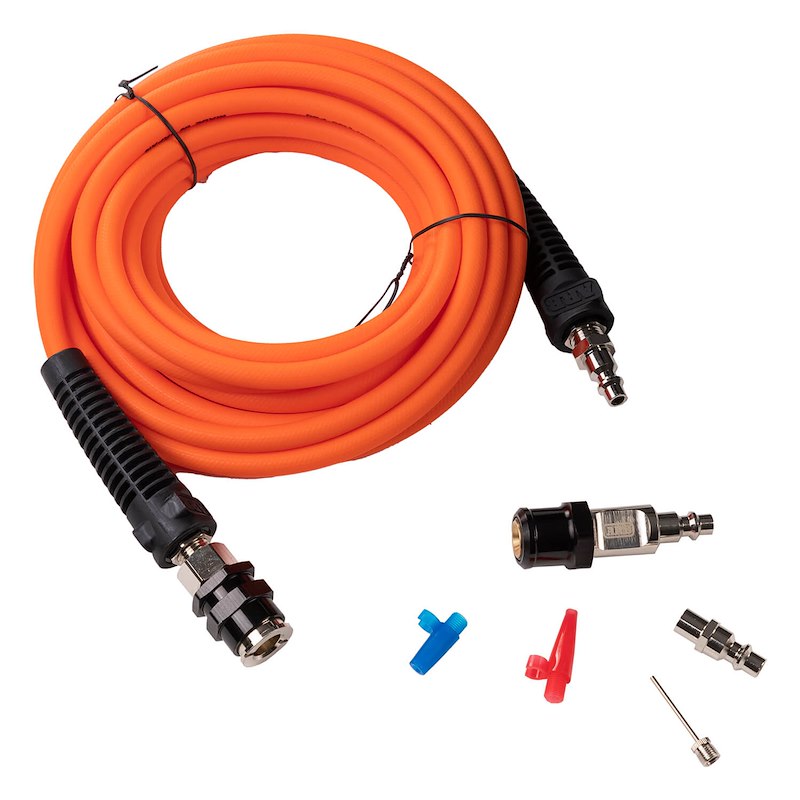

- Neoprene Storage Pocket for Hose & Accessories
🛡 Warranty
- 3-Year Manufacturer Warranty
⚠️ Fitment Notes
- Universal – Any vehicle with 12V power source
- Usage Notes:
- Not intended for continuous commercial use
- Allow cool-down periods per duty cycle
- Ensure adequate ventilation during operation
