🧾 Overview

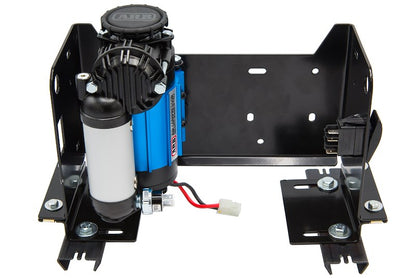

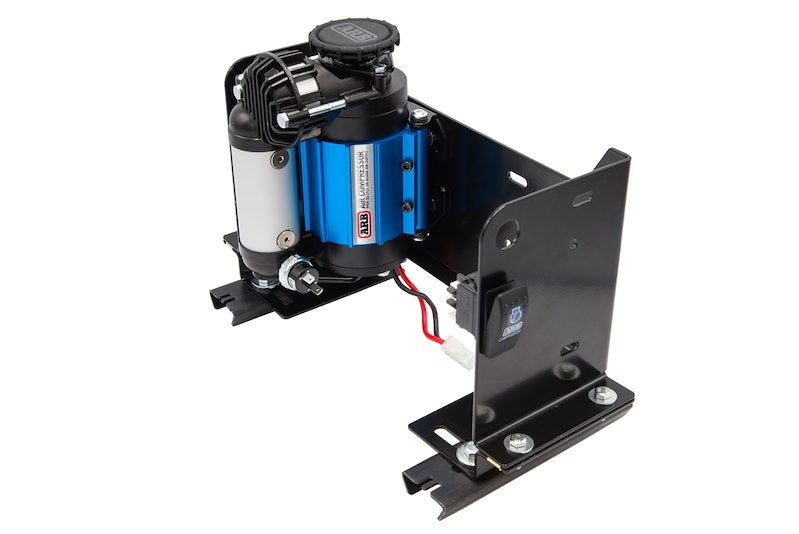

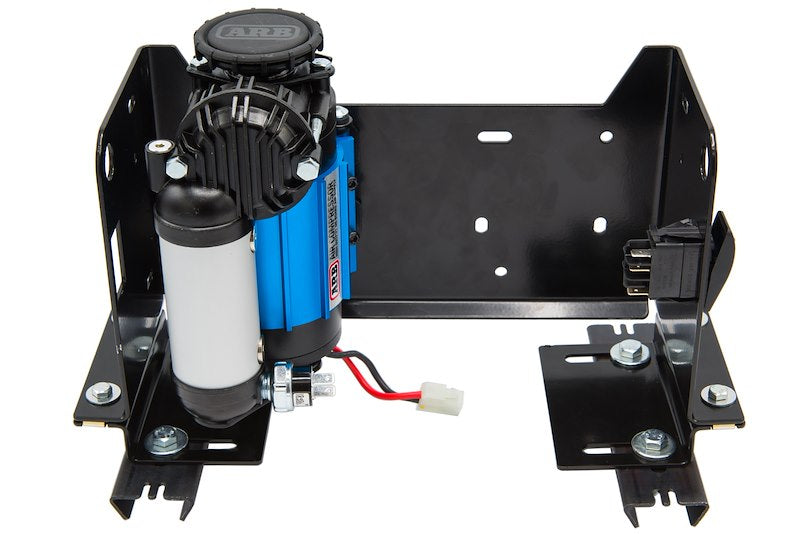

The ARB CKMA12KIT Single Motor Onboard Air Compressor Kit is a complete onboard air solution designed for tire inflation, air locker operation, and general off-road utility—making it one of the most versatile upgrades you can add to any build.
This kit is built around ARB’s proven single motor compressor platform, delivering reliable airflow for airing up tires, running air lockers, and handling trail-side repairs. It’s compact, efficient, and designed for permanent onboard installation.
Unlike the bare compressor version, the CKMA12KIT includes inflation accessories, wiring, and mounting components, making it a true all-in-one package ready to install and use right out of the box.
✔ Complete onboard air system with compressor + accessories
✔ Ideal for tire inflation, air lockers, and trail repairs
✔ Compact, high-output single motor design
✔ Includes hose, fittings, wiring, and mounting components
✔ Proven reliability for off-road and overland use
🛠 Installation
- Requires hard mounting and electrical wiring.
- Typically installed in engine bay or interior using brackets.
- Estimated install time: ~2–4 hours
📌 Specs
📌 Key Features & Benefits
- Complete Kit Solution – Includes compressor, wiring loom, switch, and inflation accessories for full functionality.
- Onboard Air Capability – Provides compressed air anywhere a 12V power source is available.
- Air Locker Ready – Designed to power ARB Air Locker systems reliably.
- Compact High Output Design – Strong airflow in a small footprint for easy mounting.
- Durable Construction – Sealed against moisture and dust with thermal overload protection.
📘 Specifications
- Brand: ARB
- Product Type: Onboard Air Compressor Kit
- Motor Type: Single Motor
- Voltage: 12V
- Max Pressure: ~100 PSI
- Air Flow: ~3.0 CFM (approx.)
- Duty Cycle: ~50% (30 min on / 30 min off)
- Max Amperage Draw: ~32A
- Ingress Rating: IP55 (dust & splash resistant)
- Installation Type: Hardwired
- Sold As: Kit

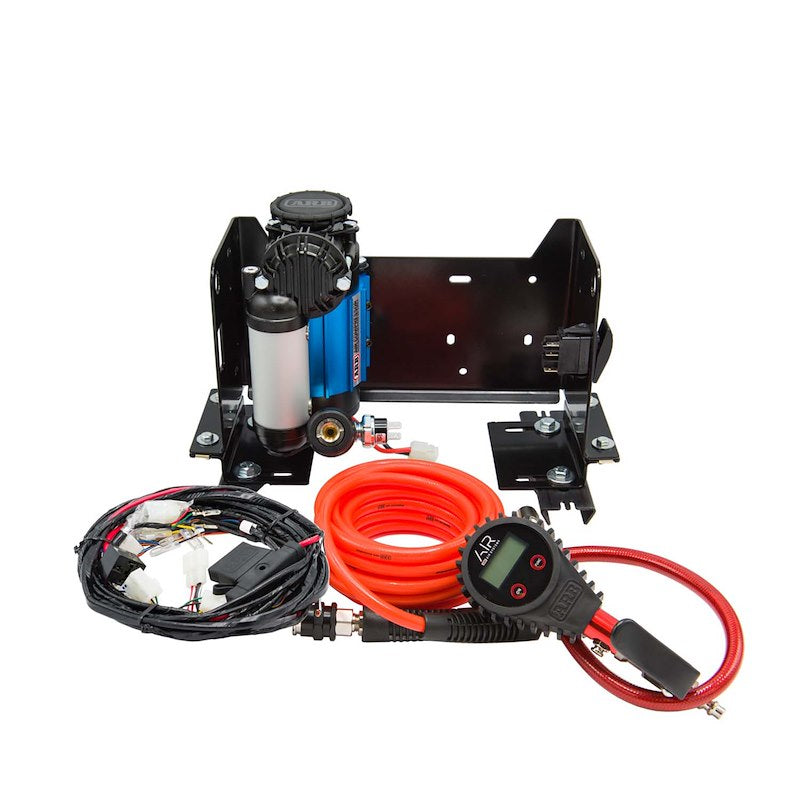

📦 What’s Included (What’s in the Box)
- Air System Components
- (1) ARB Single Motor Air Compressor
- Wiring Loom & Relay
- Compressor Switch
- Mounting Bracket & Hardware
- Inflation Accessories
- 20 ft Air Hose
- Tire Inflation Fittings
- Carry Case
🛡 Warranty
- ARB Limited Warranty (Typically 2–3 Year)
⚠️ Fitment Notes
- Universal (12V Vehicles – Trucks, Jeeps, SUVs, Overland Builds)
⚠️ Fitment Notes
- ❗ Designed for permanent onboard installation (engine bay, bed, or interior)
- ❗ Ideal for up to ~35" tires (typical use range)
- ❗ Can operate ARB Air Lockers (front and/or rear)
- ❗ Requires proper mounting location and electrical connection
