🧾 Overview

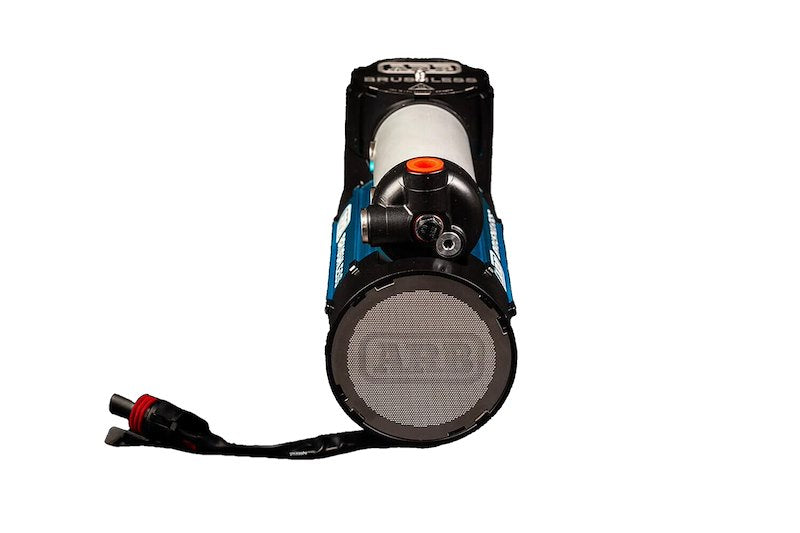

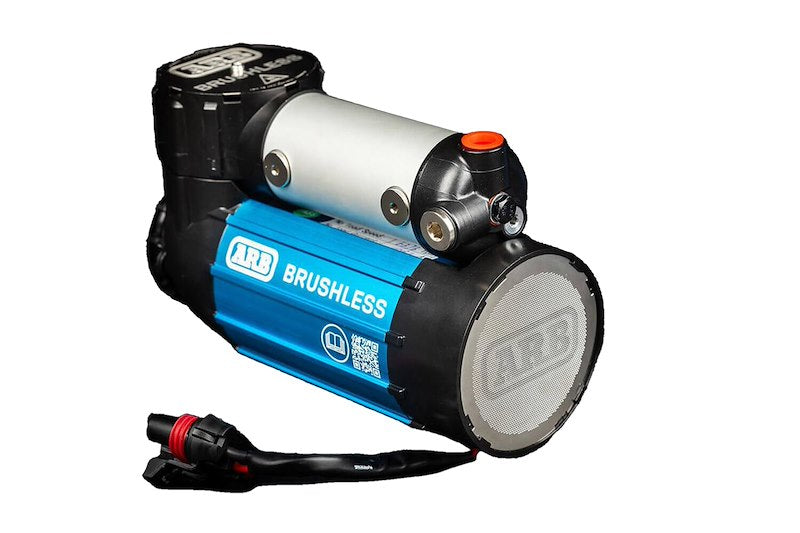

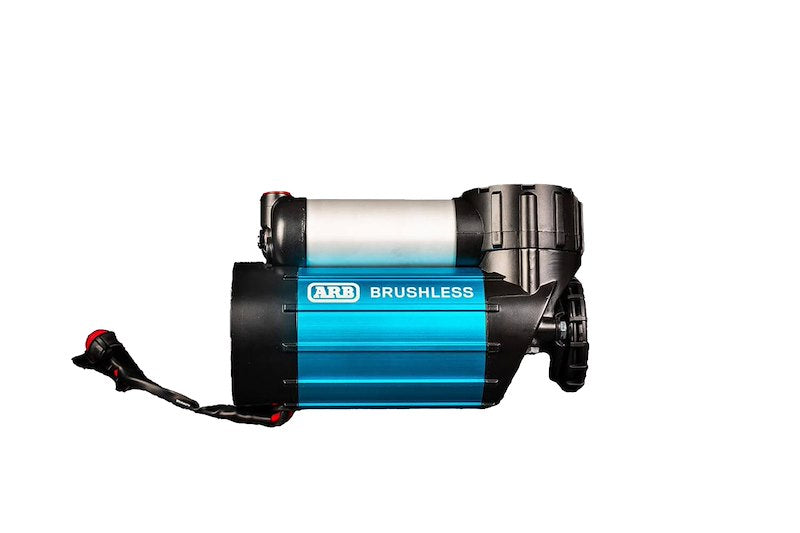

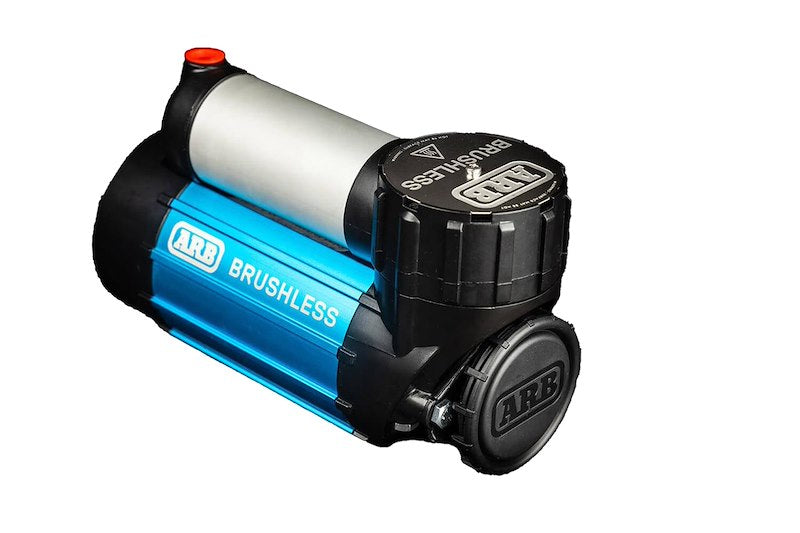

The ARB Brushless Single Motor Onboard 12V Air Compressor (CKBLA12) is the next-generation upgrade to ARB’s legendary onboard air systems, delivering significantly more performance, efficiency, and reliability in a compact package.
Built with a brushless motor design, this compressor produces up to 50% more airflow than traditional ARB single compressors, while running cooler and requiring less maintenance.
Designed for permanent onboard installation, it provides consistent air supply for tire inflation, air lockers, and recovery needs, with advanced features like active cooling fans, electronic speed control, and real-time status monitoring—making it one of the most advanced single compressors available.
✔ Brushless motor delivers higher airflow and efficiency
✔ Up to 50% more output than standard single compressors
✔ Designed for onboard mounting (always ready air supply)
✔ Compatible with ARB Air Locker systems
✔ Advanced cooling and smart electronics for reliability
🛠 Installation
- Requires hard mounting and electrical wiring.
- Can be installed in engine bay or interior using brackets.
- Estimated install time: ~2–4 hours
📌 Specs
📌 Key Features & Benefits
- Brushless Motor Technology – Increases efficiency, reduces maintenance, and improves lifespan.
- 50% Increased Output – Faster inflation compared to traditional single motor compressors.
- Active Cooling System – Integrated fans maintain performance and prevent overheating.
- Electronic Speed Control – Optimizes performance across varying pressure and temperature conditions.
- Smart Monitoring System – Provides audio/visual alerts and system diagnostics.
📘 Specifications
- Brand: ARB
- Product Type: Onboard Air Compressor
- Motor Type: Brushless Single Motor
- Voltage: 12V
- Air Flow:
- ~4.59 CFM (0 PSI)
- ~3.10 CFM (29 PSI)
- Max Pressure: ~150 PSI
- Max Amperage Draw: ~45A
- Duty Cycle: 100% (continuous-use capable)
- Ingress Rating: IP67 (water & dust resistant)
- Dimensions:
- 12.8" L x 10.83" W x 6.1" H
- Weight: ~9.5 lbs
- Installation Type: Hardwired (Onboard)
- Sold As: Single
📦 What’s Included (What’s in the Box)

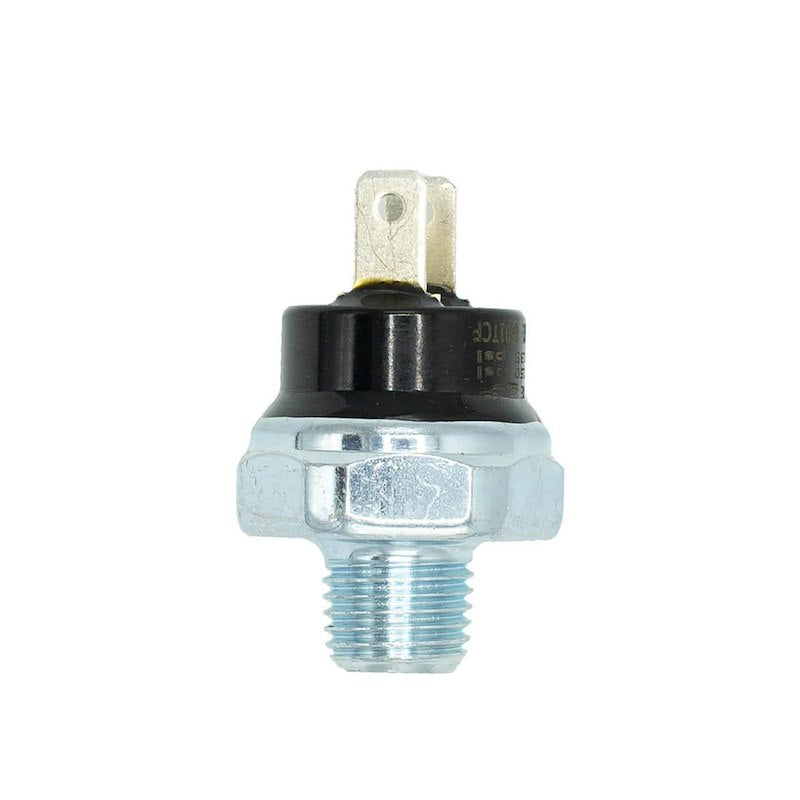

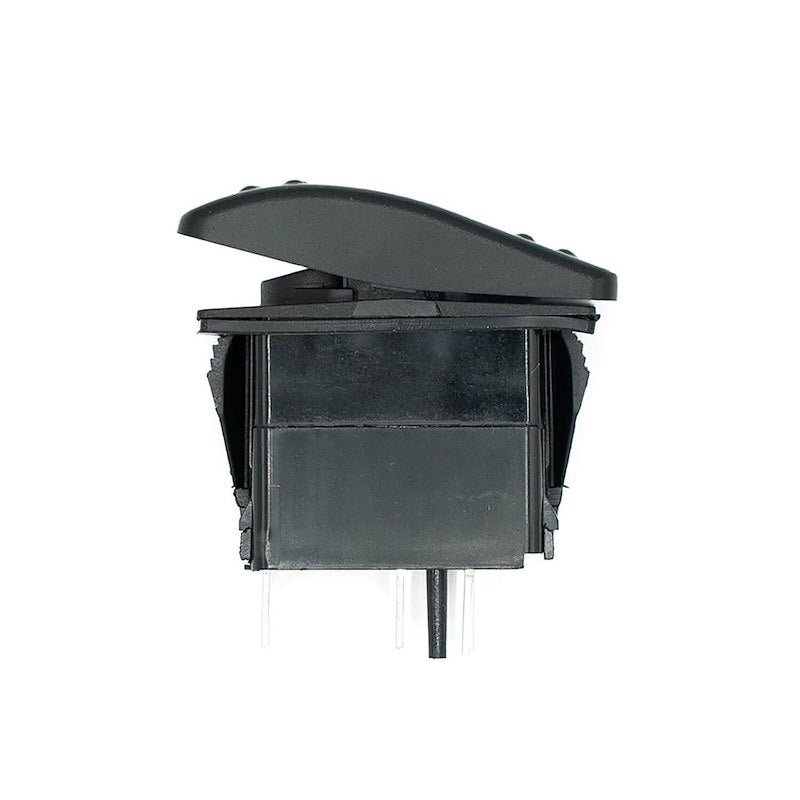

- Air System Components
- (1) ARB Brushless Single Motor Compressor

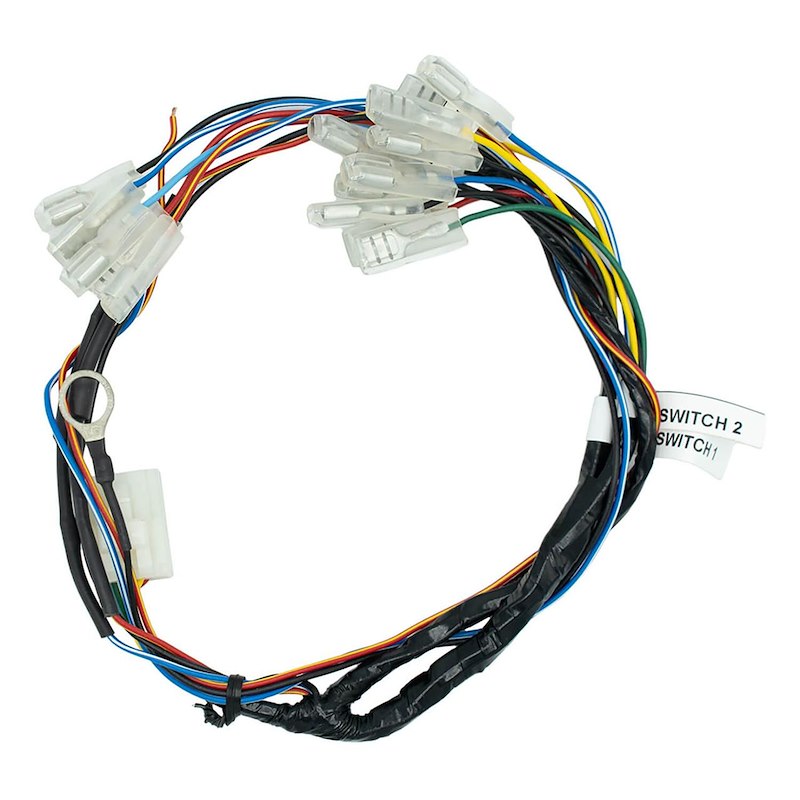

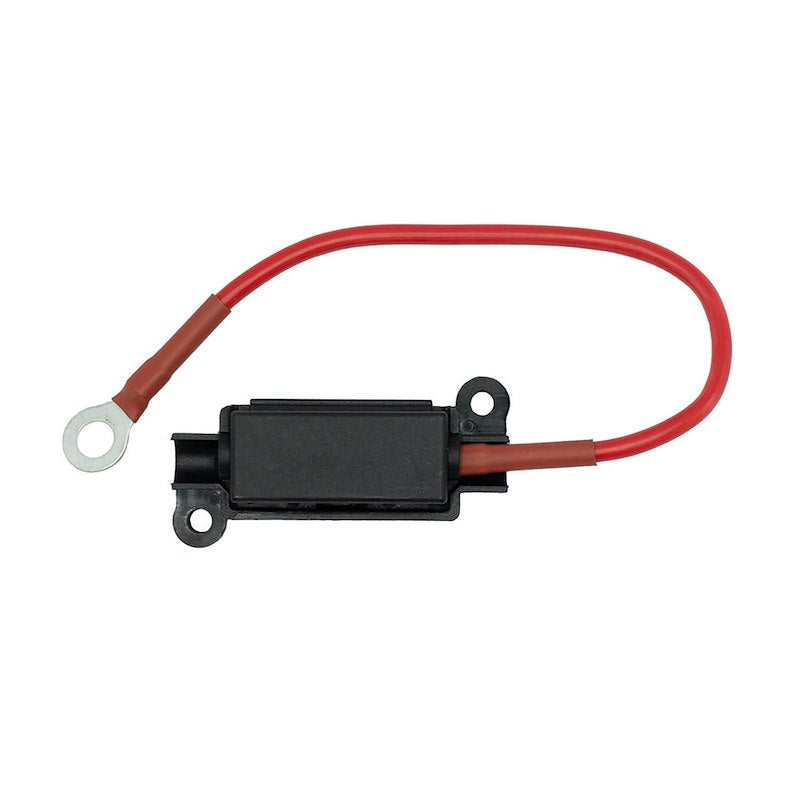

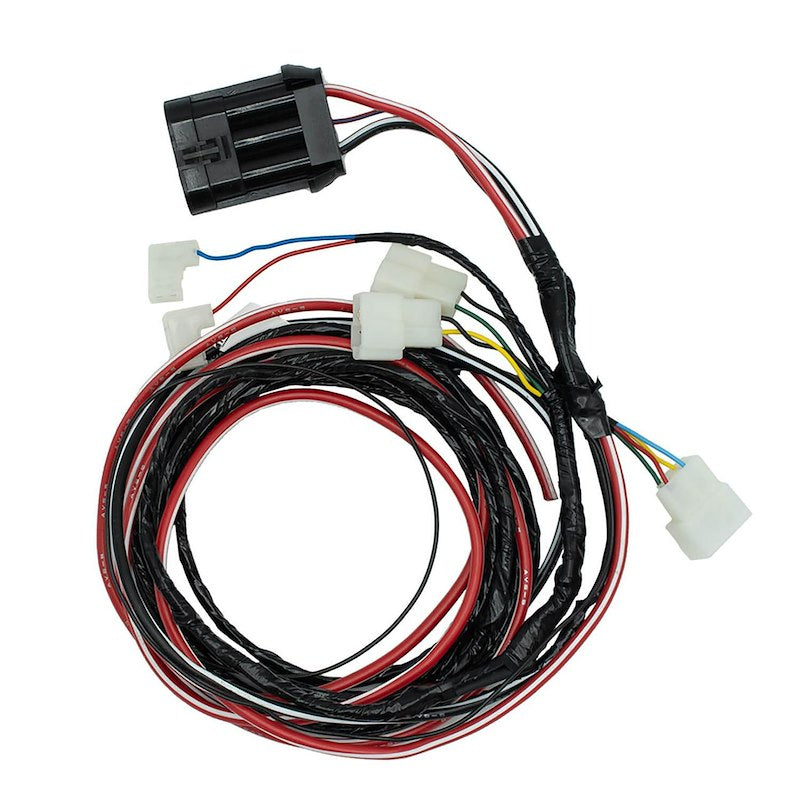

- Wiring Harness

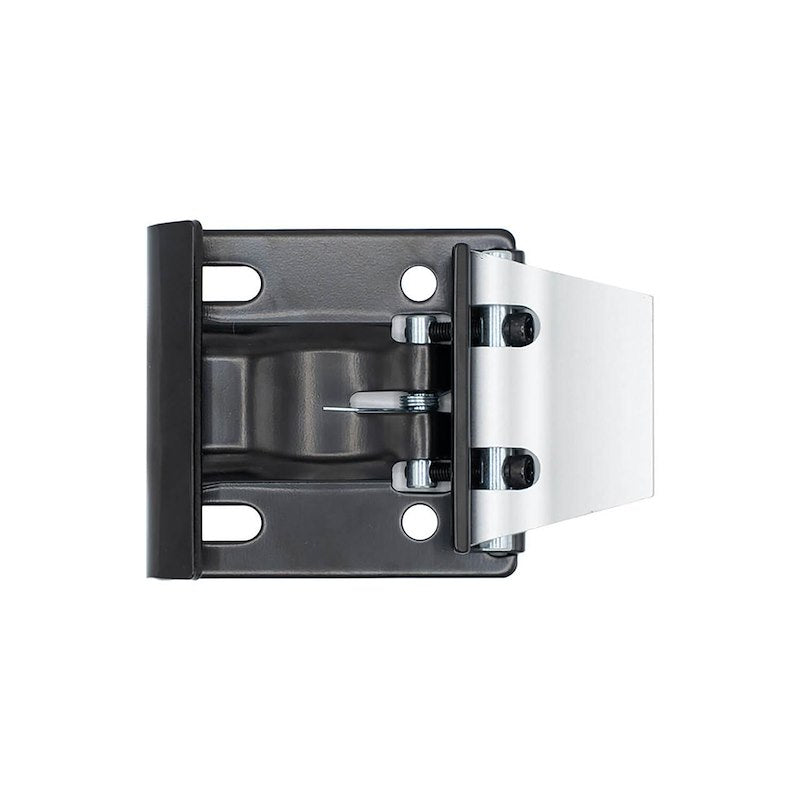

- Mounting Bracket

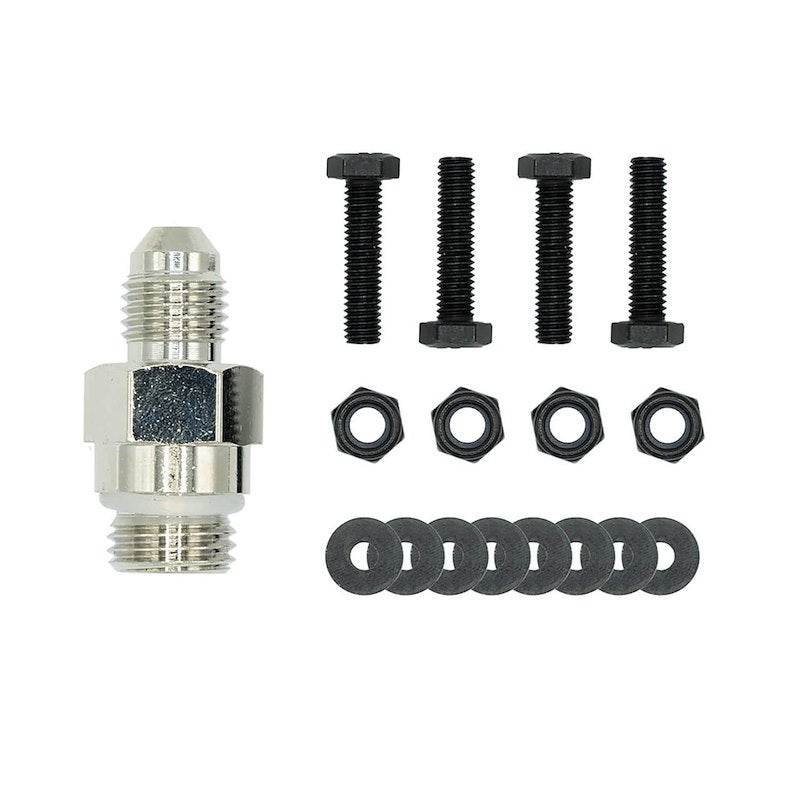

- Installation Hardware
🛡 Warranty
- ARB Limited Warranty (Typically 3-Year)
⚠️ Fitment Notes
- Universal (12V Vehicles – Trucks, Jeeps, SUVs, Overland Builds)
⚠️ Fitment Notes
- ❗ Designed for permanent onboard installation (engine bay, bed, or interior)
- ❗ Requires hardwired electrical connection (up to ~45A draw)
- ❗ Ideal for up to ~35" tires (high-efficiency single motor system)
- ❗ Compatible with ARB Air Lockers and air systems
