🧾 Overview

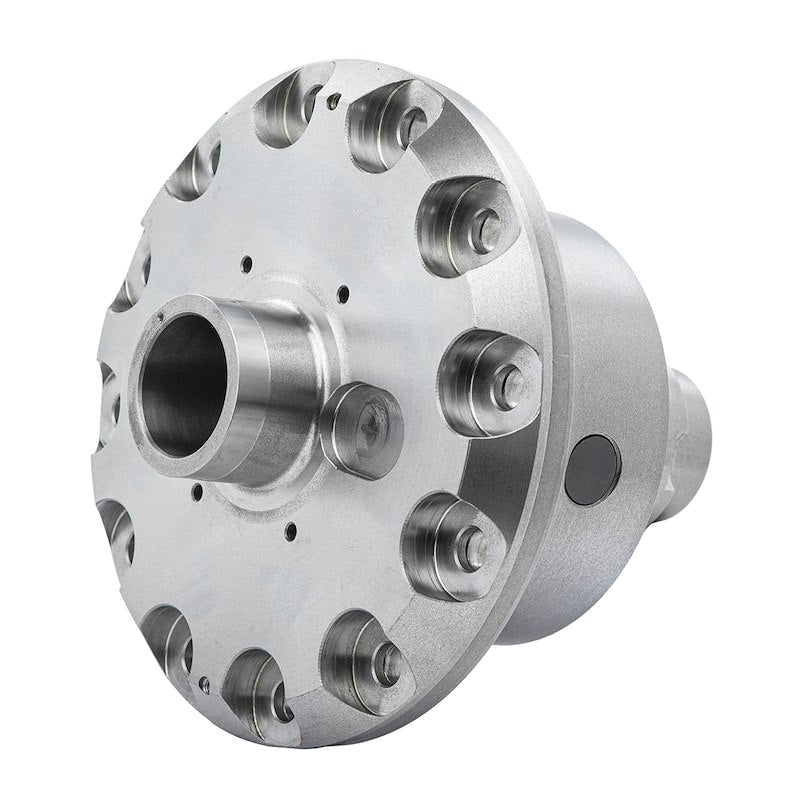

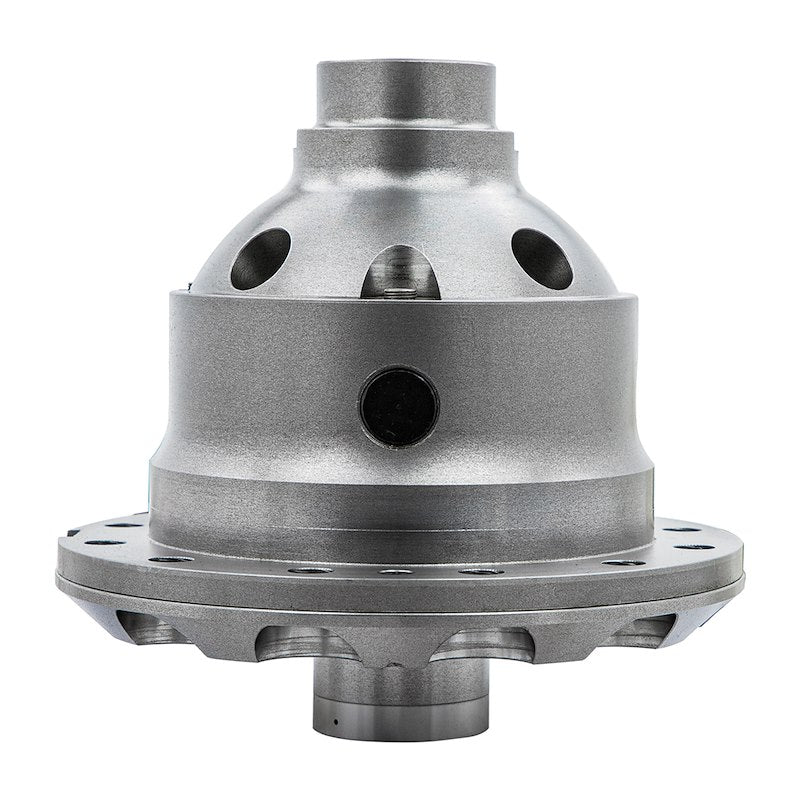

The ARB Air Locker Differential for the heavy-duty Dana 60 axle is engineered to deliver 100% traction on demand for extreme off-road environments while maintaining smooth, predictable drivability on pavement. With the flip of a switch, the Air Locker instantly locks the differential, ensuring both axle shafts rotate together for maximum traction on technical rock crawls, deep mud, snow, sand, or uneven terrain.
Inside, a pneumatically activated locking mechanism prevents internal gears from differentiating when engaged, tying both wheels directly to the ring gear. Disengaged, it functions as a conventional open differential, reducing driveline wear and maintaining OEM handling characteristics.
Designed for serious off-road abuse, the Dana 60HD Air Locker features a reinforced two-piece construction with minimal moving parts, a patented timed locking mechanism for quick engagement/unlocking, and a steel-reinforced elastomer annular seal built to endure extreme temperature swings and harsh conditions.
✔ Instant 100% locking traction
✔ Heavy-duty design for extreme builds
✔ Functions like an open differential when unlocked
🛠 Installation
- Professional installation recommended
- Requires precise differential setup and gear installation
- Air compressor required for operation (sold separately)
- Compatible with ARB onboard and portable compressors
📌 Specs
- Key Features & Benefits
- 100% traction on demand without affecting on-road drivability
- Ultra-strong two-piece mechanical design with minimal moving parts
- Patented timed locking mechanism for fast, smooth engagement
- Steel-reinforced elastomer annular seal designed for extreme climates
- Selectable locker allows slower, safer, more controlled off-road driving
- Reliable pneumatic operation for consistent performance
- 📐 Specifications
- Axle Type: Dana 60HD / Dana 60 (Full Float or Standard)
- Spline Count: 35 Spline
- Axle Shaft Diameter: 1.50 in
- Gear Ratio Compatibility: 4.56 & Up
- Material: Steel
- Finish: Silver
- Operation: Pneumatic (Air Actuated)
- Prop 65: No
- Sold As: Each

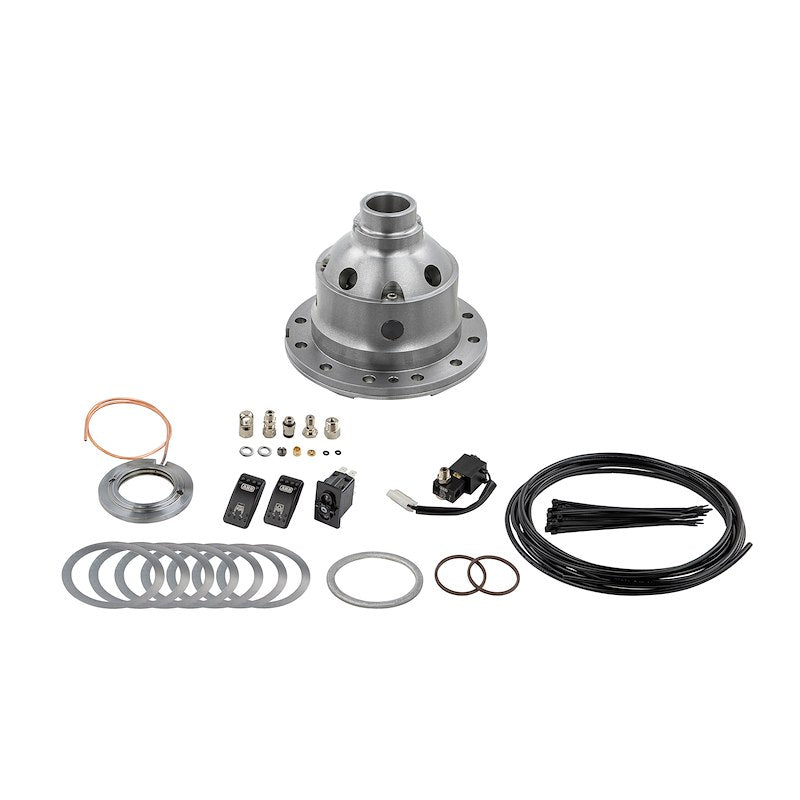

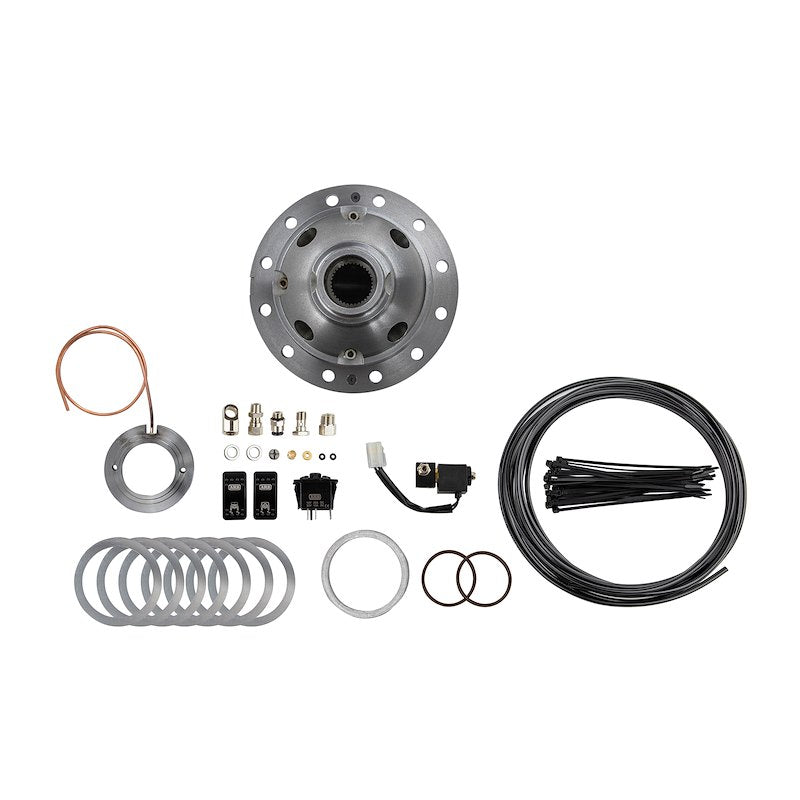

- 📦 What’s Included
- ARB Air Locker differential assembly
- Dash-mounted activation switch
- Air solenoid valve
- Air line and bulkhead fitting
- Installation hardware
- 🛡 Warranty
- 5-Year Manufacturer Warranty
- Warranty coverage provided by ARB
⚠️ Fitment Notes
- Axle Applications:
- Full Float Dana 60 (Rear) – 35 Spline – 4.56 & Up
- Dana 60 (Rear) – 35 Spline – 4.56 & Up
- Dana 60 (Front) – 35 Spline – 4.56 & Up
- Common Uses:
- Heavy-duty Jeep, truck, and off-road builds equipped with Dana 60 axles
- Custom and aftermarket Dana 60 applications (verify rotation type & gear set)
- ⚠️ Fitment Notes
- Several axle shaft variants exist — verify 35-spline shaft prior to ordering
- Reverse-rotation Dana 60 front ends with aftermarket ring & pinion may require ARB RD166 or RD167 (determined by ring & pinion)
- Air compressor required for operation (sold separately)
- Professional setup strongly recommended to ensure correct backlash & preload
