🧾 Overview

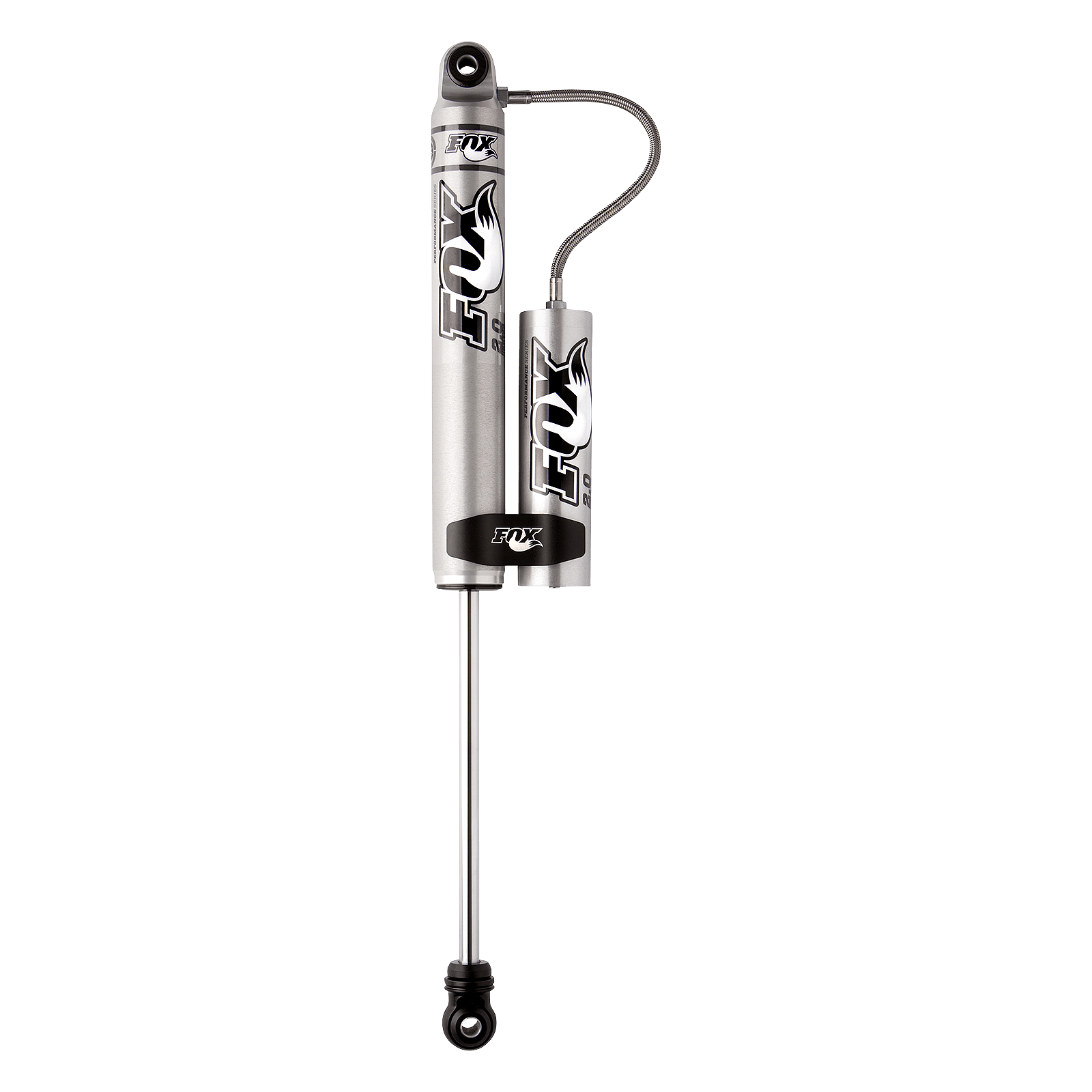

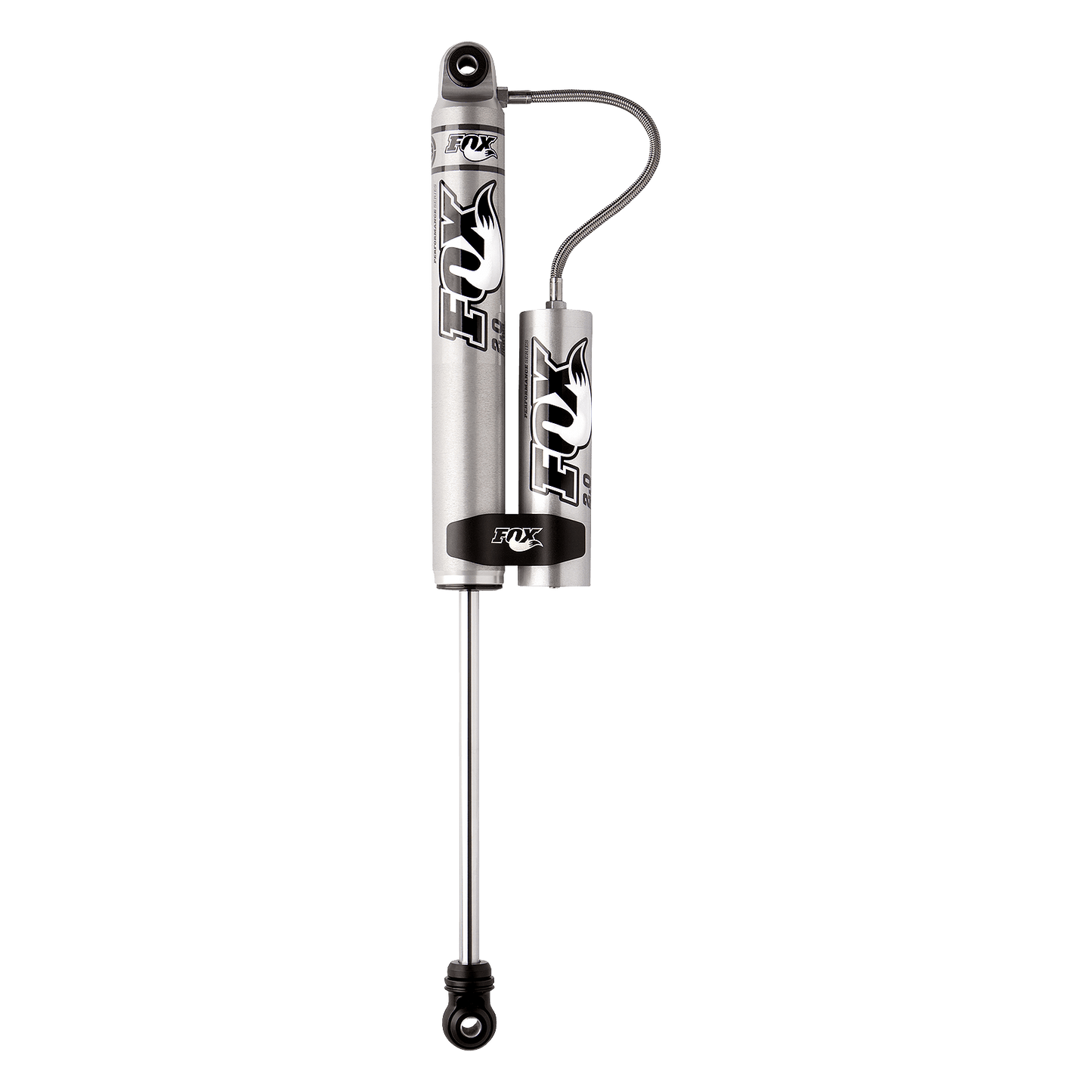

The FOX 2.0 Performance Series Front Reservoir Shocks are engineered to improve ride quality, suspension control, and off-road capability for the Jeep Cherokee XJ and Jeep Wrangler TJ platforms. Built with FOX’s race-proven technology, these shocks feature a 2.0-inch aluminum shock body paired with an external reservoir, increasing oil and nitrogen capacity for improved heat dissipation and consistent damping performance.
The Internal Floating Piston (IFP) design separates the shock oil from high-pressure nitrogen, helping prevent oil aeration and shock fade during aggressive off-road driving. The external reservoir further increases fluid capacity, improving performance and durability during extended trail use. Vehicle-specific valving ensures a balanced ride on pavement while maintaining the control needed for lifted suspension systems and larger tires.
Multiple lift-height variants are available to ensure proper shock length and suspension travel based on your vehicle’s lift configuration.
✔ External reservoir increases oil capacity and cooling
✔ Internal Floating Piston (IFP) technology for consistent damping
✔ Race-proven FOX Performance Series design
✔ Vehicle-specific valving for balanced on-road and off-road performance
🛠 Installation
- Direct bolt-on installation.
- No cutting or fabrication required.
- Alignment recommended after installation.
📌 Specs
- Key Features & Benefits
- External Reservoir Design for Increased Oil Capacity
- Internal Floating Piston (IFP) Technology
- 2.0" Aluminum Shock Body for Improved Heat Dissipation
- Vehicle-Specific Valving for Balanced On and Off-Road Performance
- High-Flow Damping Piston for Improved Suspension Control
- Corrosion-Resistant Clear Anodized Aluminum Construction
- Direct Bolt-On Replacement Design
📘 Specifications
- Shock Series: FOX 2.0 Performance Series
- Shock Type: Reservoir Shock with Internal Floating Piston
- Shock Body Diameter: 2.0"
- Body Material: Aluminum
- Finish: Clear Anodized
- Position: Front
- Available Lift Height Variants
- 3–4.5" Lift
- 5–6" Lift
- 6.5–8" Lift
- (Lift height depends on the selected variant.)
📦 What’s Included (What’s in the Box)
- (1) FOX 2.0 Performance Series Reservoir Front Shock
- (1) Reservoir Mounting Clamp
🛡 Warranty
- Covered by the FOX Factory Limited Warranty.
- Warranty applies to defects in materials and workmanship under normal operating conditions.
⚠️ Fitment Notes
- 1997–2006 Jeep Wrangler TJ
- 2004–2006 Jeep Wrangler LJ Unlimited
- 1984–2001 Jeep Cherokee XJ
⚠️ Fitment Notes
- Designed for vehicles equipped with aftermarket suspension lifts
- Select the correct lift height option that matches your suspension system
- Front shocks only
- Sold individually
