🧾 Overview
The Oracle Lighting ColorSHIFT RGB+W Underbody Wheel Well Rock Light Kit delivers fully customizable underbody lighting with both vibrant RGB color options and a true 6000K white mode for functional trail visibility. Designed for trucks, Jeeps, and off-road builds, this system enhances both performance and appearance with wide, even light coverage.

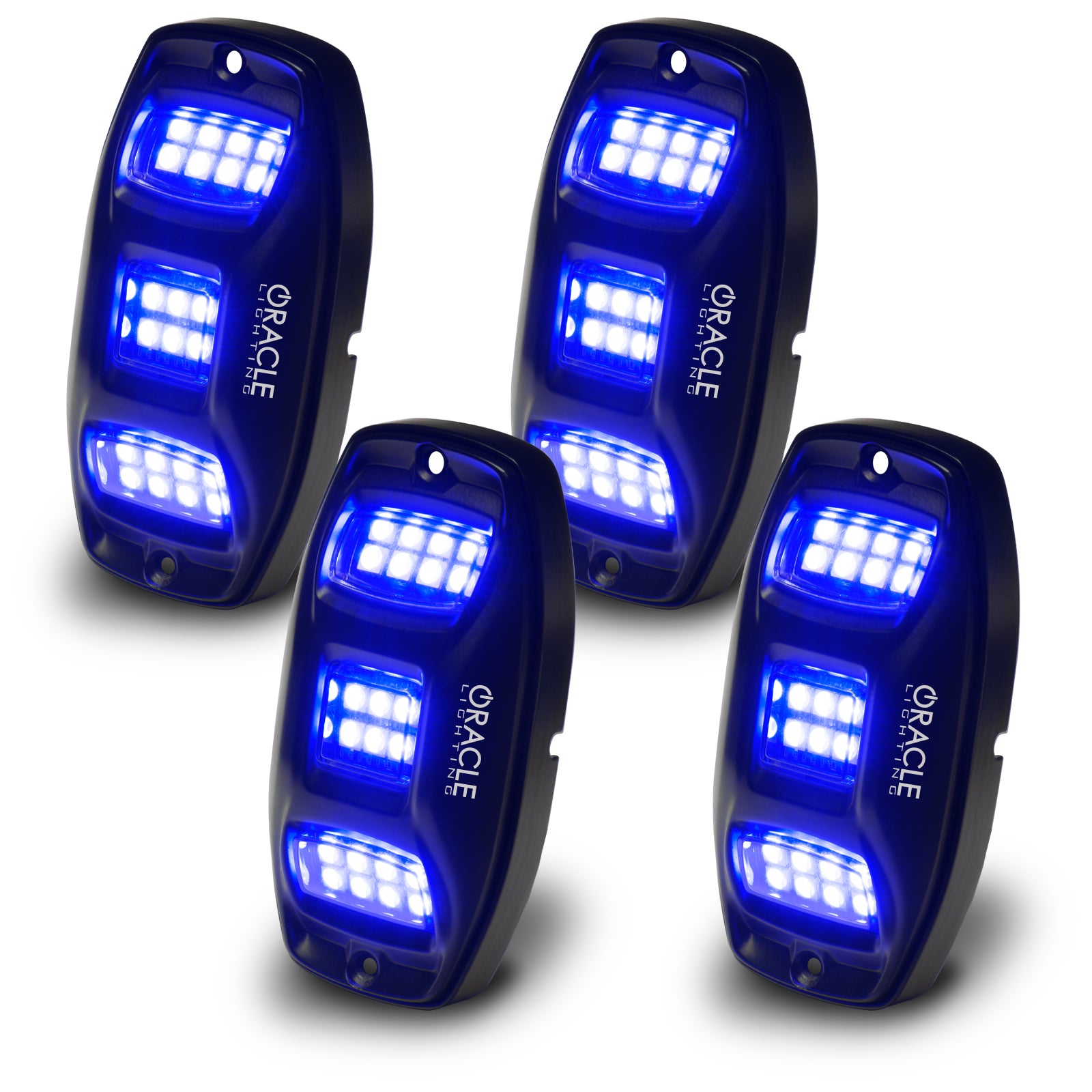

Each oversized pod features triple LED emitters and a 230° ultra-wide beam angle, providing excellent illumination across wheel wells and underbody areas. Built with durable aluminum housings and sealed connectors, this kit is designed to handle harsh environments while offering easy control through a smartphone app and included RF remote.

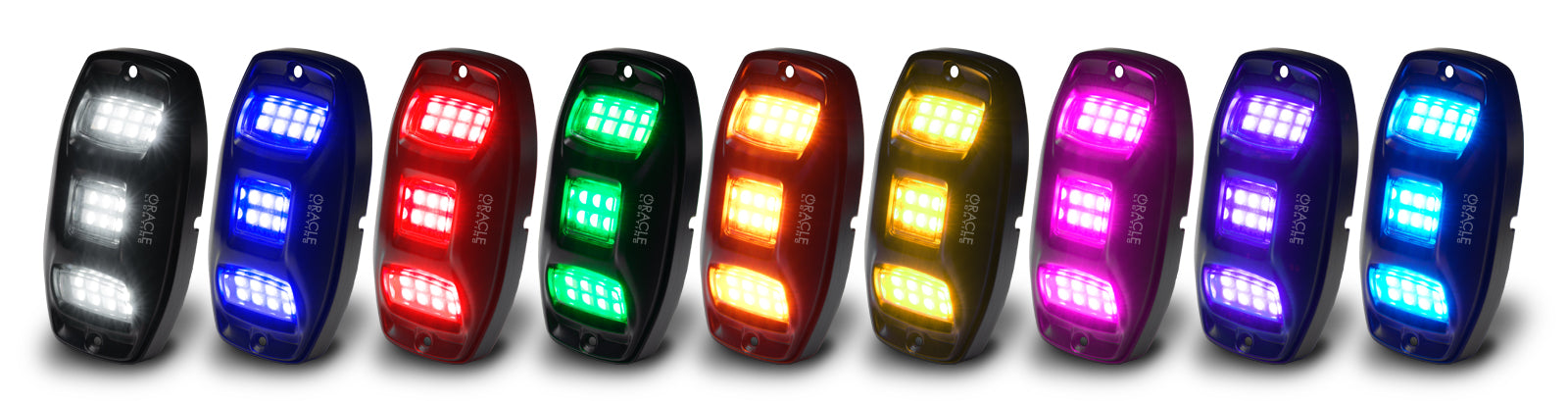

✔ RGB color control + true 6000K white mode
✔ Oversized pods with triple LED emitters
✔ 230° ultra-wide beam angle for maximum coverage
✔ Bluetooth app + RF remote control
✔ Music sync and dynamic lighting modes
✔ Durable aluminum housing with IP68 waterproof connectors
🛠 Installation
- Universal installation using included wiring and mounting hardware.
- Mount in wheel wells, frame rails, or underbody locations for optimal coverage.
📌 Specs

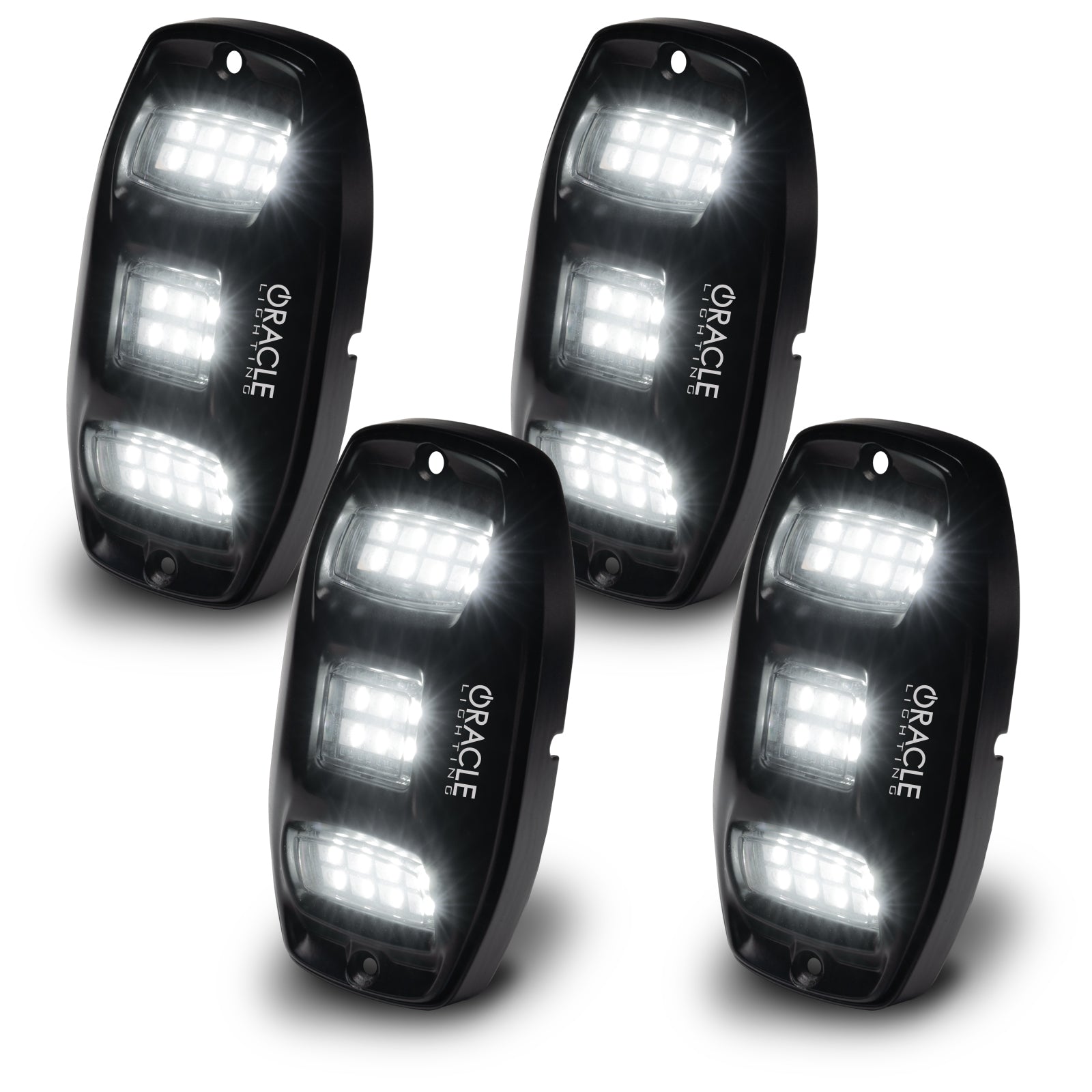

- RGB + True White Output – Switch between full color customization and a functional 6000K white light for real visibility.
- Ultra-Wide Coverage – 230° beam angle provides superior area coverage compared to standard rock lights.
- App & Remote Control – Control colors, brightness, patterns, and music sync from your phone or included RF remote.
- High Output LED Pods – 22 LEDs per pod with triple emitters deliver strong, consistent illumination.
- Rugged Construction – Aluminum housing and sealed IP68 connectors protect against water, dust, and debris.
- Plug-and-Play Friendly – Pre-wired switch and connectors simplify installation.
📘 Specifications
- Brand: Oracle Lighting
- Product Type: Rock Light Kit
- Series: ColorSHIFT RGB+W
- Light Color: RGB + White (6000K)
- LED Type: 5050 RGBW
- LED Quantity: 22 LEDs per Pod
- Beam Angle: 230°
- Total Output: 2000+ Lumens (White Mode)
- Voltage: 9V–32V DC
- Wattage: 28W Total (7W per Pod)
- Amp Draw:
- Red: 0.56A @ 12V
- Green: 0.65A @ 12V
- Blue: 0.56A @ 12V
- White: 0.63A @ 12V
- Housing Material: Aluminum
- Finish: Black Powder Coat
- Ingress Rating: IP68 Waterproof
- Wire Length per Pod: 11 ft
- Control Type: Bluetooth App + RF Remote
- Installation Type: Hardwired
- Sold As: Kit

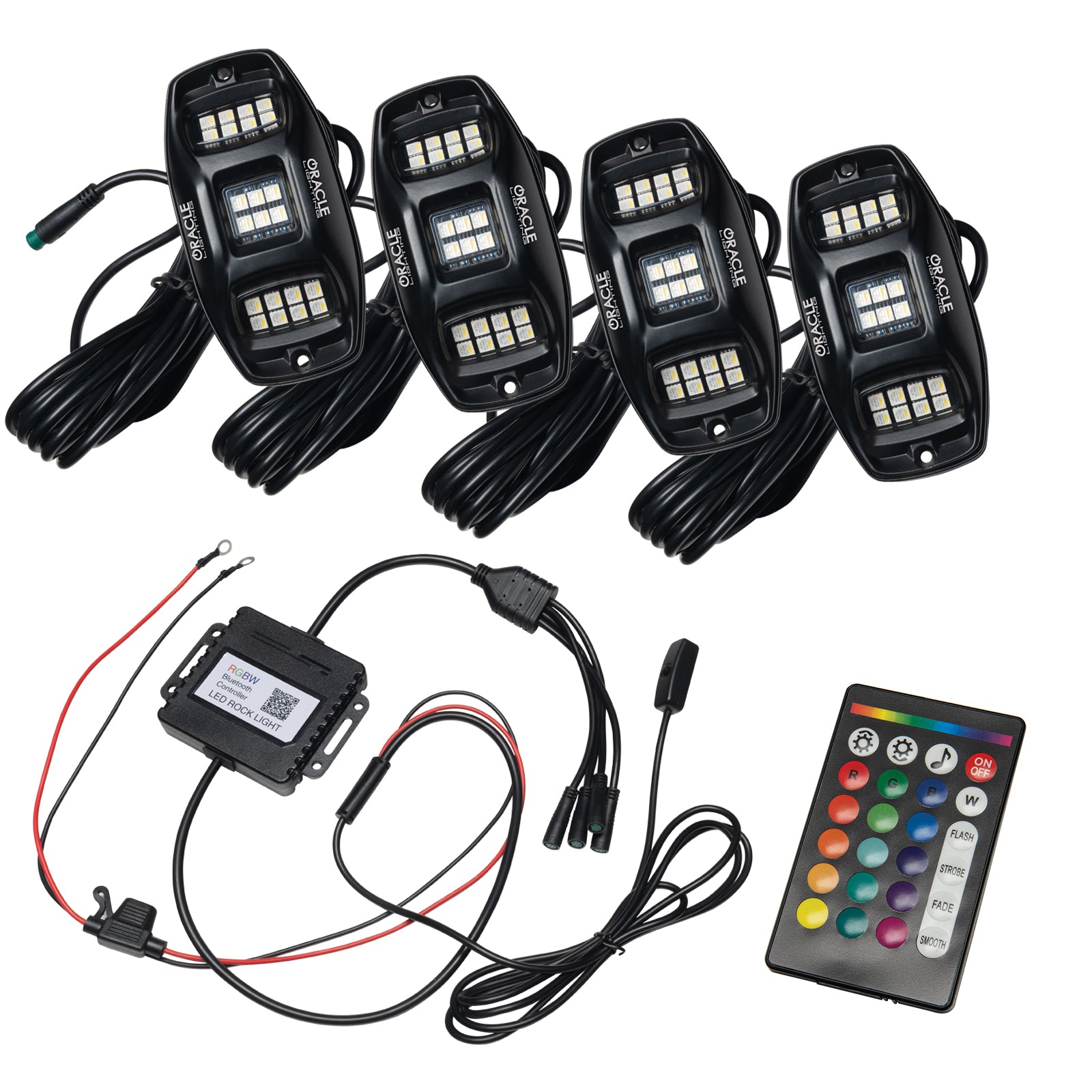

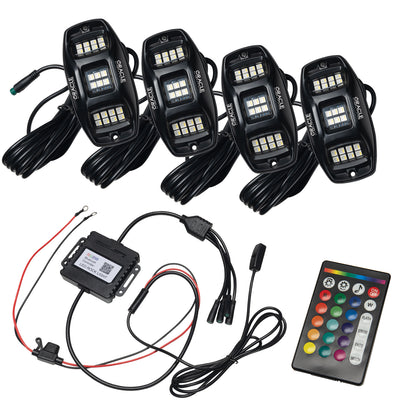

📦 What’s Included (What’s in the Box)
- Lighting Components

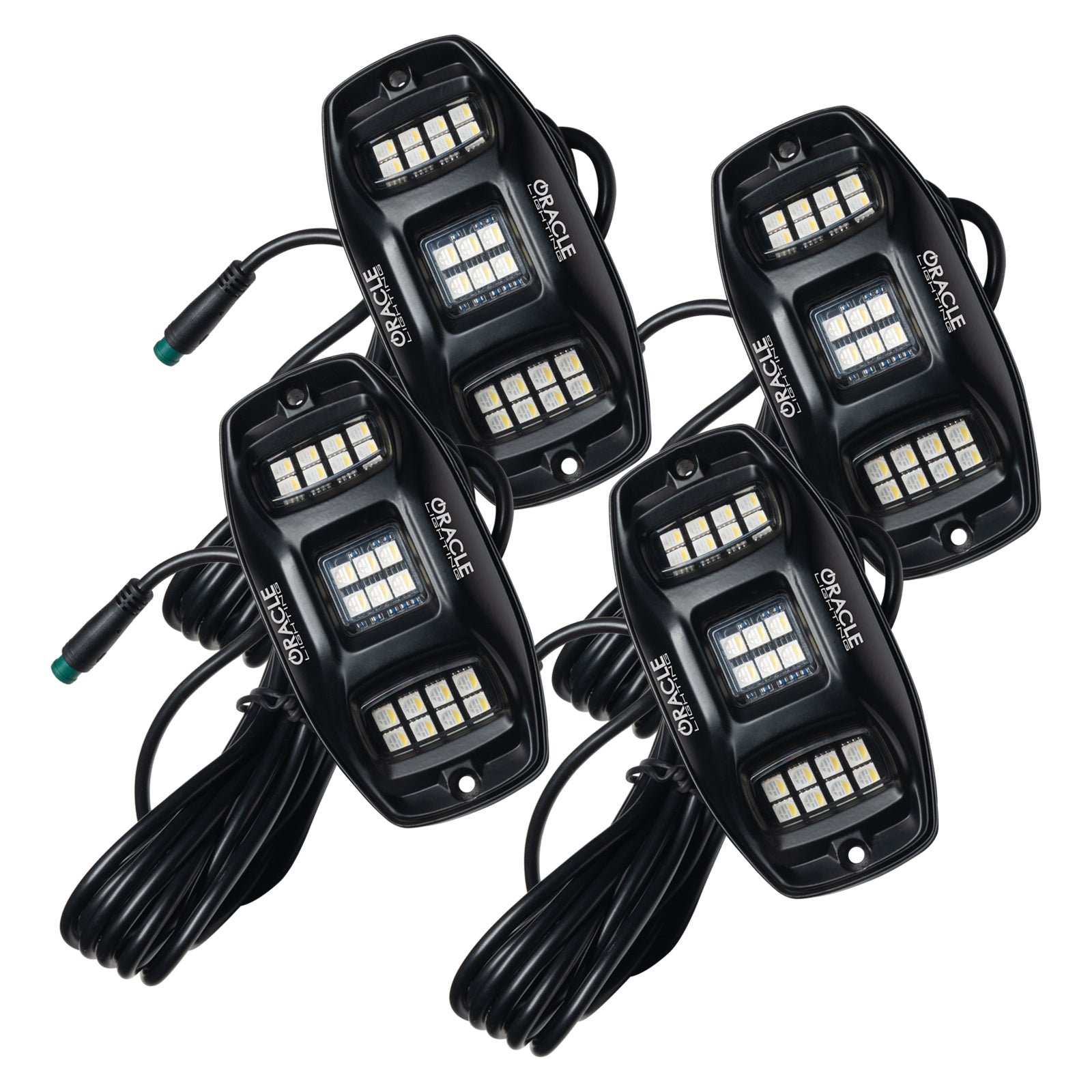

- RGB+W Rock Light Pods

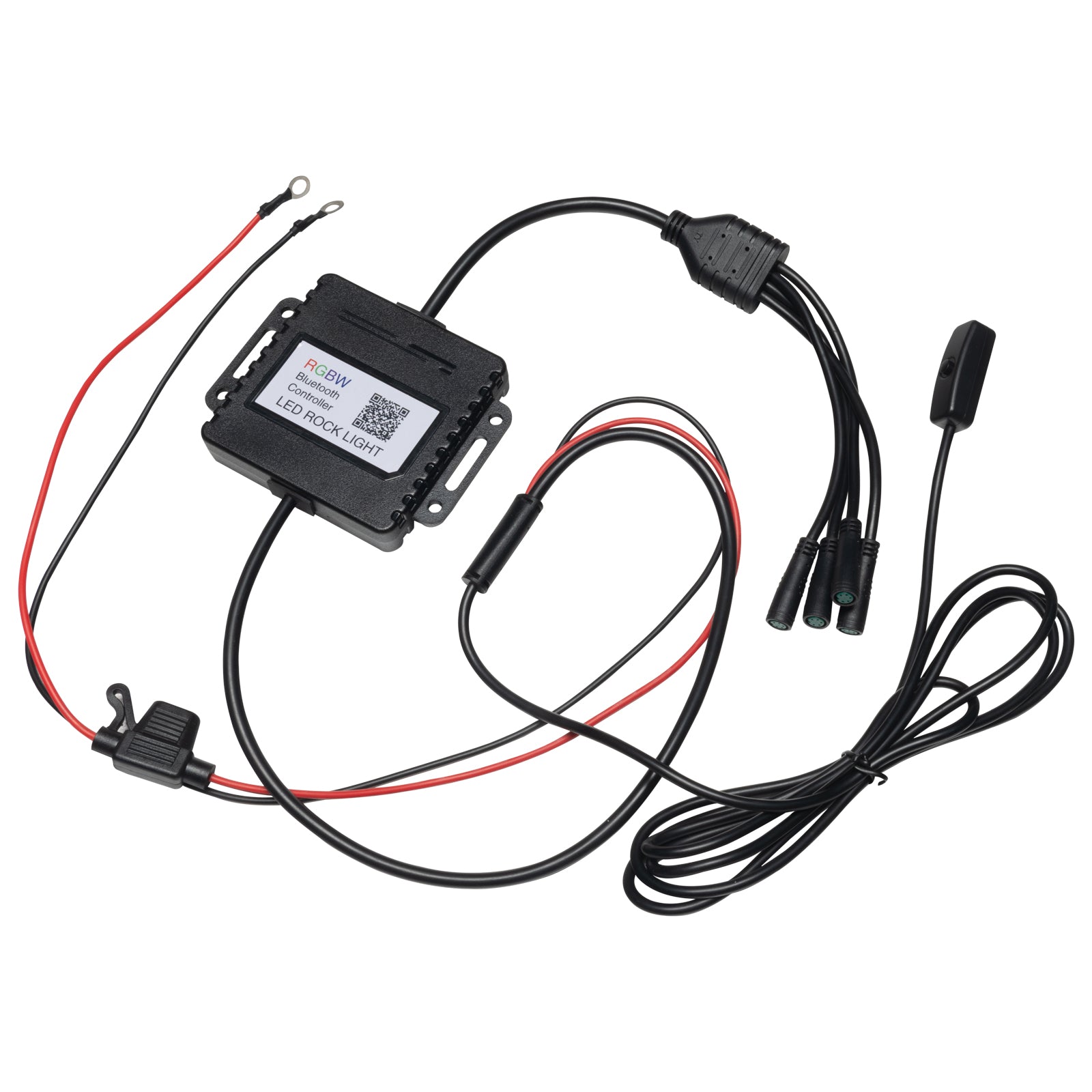

- Control Module

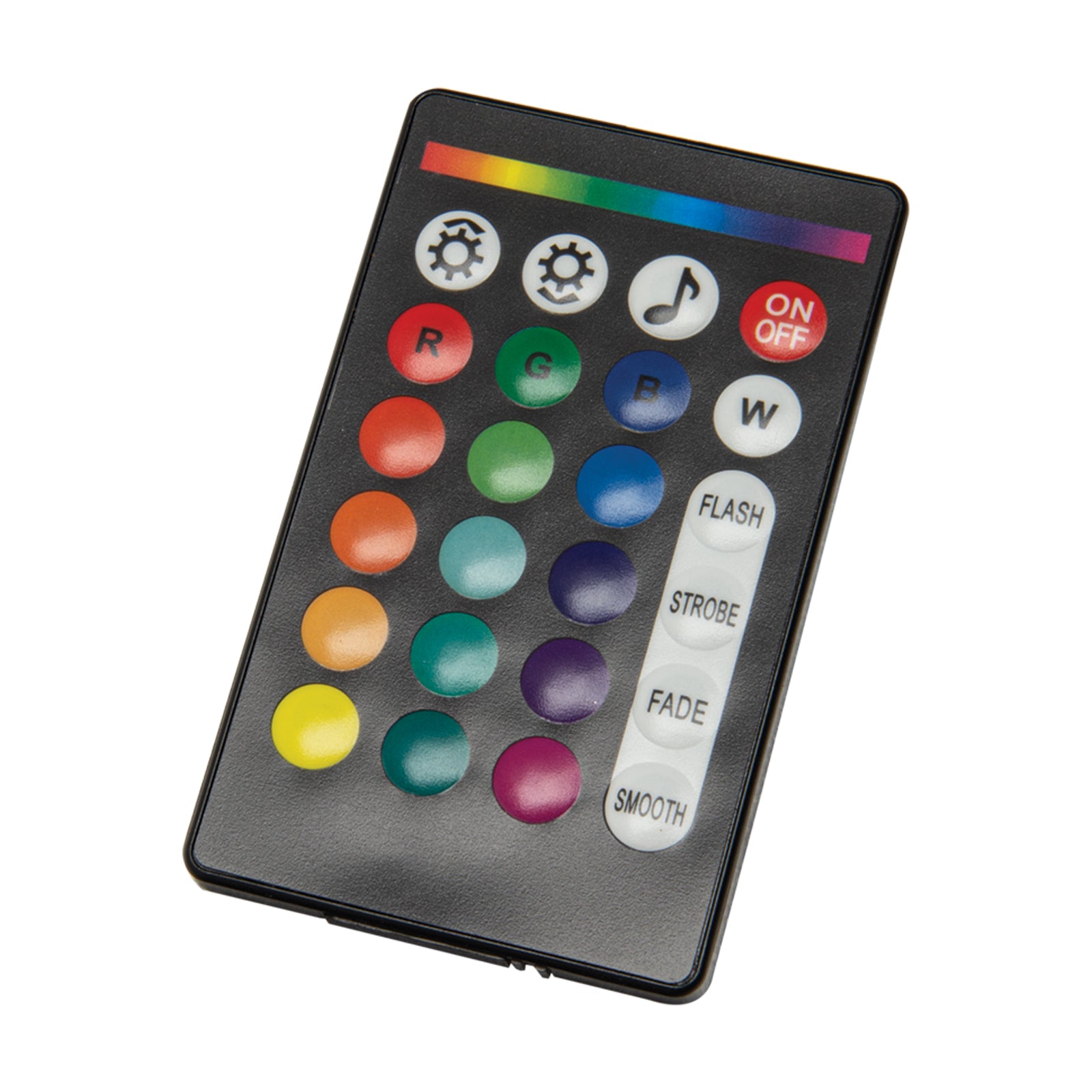

- RF Remote Control
- Pre-Wired On/Off Switch
- Wiring & Connectors
- Mounting Hardware
🛡 Warranty
- Oracle Lighting 1-Year Limited Warranty
- Covers manufacturer defects in materials and workmanship.
⚠️ Fitment Notes
- Universal Fit
- Compatible with:
- Trucks
- Jeeps
- SUVs
- UTVs / SXS
- Off-Road Vehicles
- Overland Builds
⚠️ Fitment Notes
- Universal kit designed for wheel well and underbody mounting.
- Requires 12V power source and wiring.
- Designed for off-road and show use.
