🧾 Overview

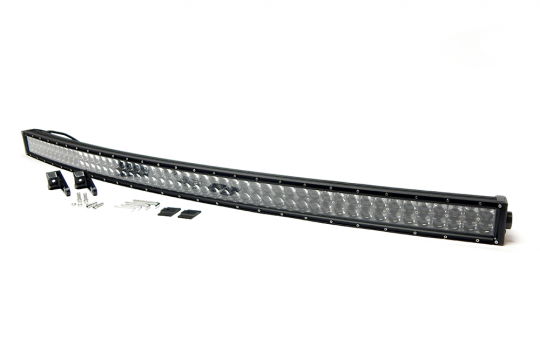

The Southern Truck 52.0″ Curved Double Row LED Light Bar – Chrome Series is designed to deliver powerful off-road illumination with a clean, OEM-style appearance. Producing 27,000 lumens from a dual-row LED layout, this curved light bar combines an 8° spot and 90° flood beam pattern to provide both long-range visibility and wide peripheral coverage. The chrome panel design complements modern truck and SUV styling while maintaining rugged durability for off-road use.
✔ 27,000 lumens of high-output lighting
✔ Combo spot/flood beam for distance and width
✔ Chrome Series design for OEM-style appearance
🛠 Installation
- Bolt-on installation using included mounting brackets and hardware
- Mounts to bumpers, roof racks, grille mounts, or custom brackets
- DT pigtail connector and lead included
- Wiring harness / switch sold separately
- Basic hand tools required
📌 Specs
- Length: 52.0 inches
- Light Output: 27,000 lumens
- Power: 300 watts
- Current Draw: 25 amps
- Beam Pattern: 8° spot / 90° flood combo
- LED Chips: 100 × 3-watt high-intensity LEDs
- Housing Material: Die-cast aluminum
- Finish: Chrome panel, powder-coated housing
- Waterproof Rating: IP67
- Moisture Protection: Integrated breather technology
- Overall Dimensions:
- Length: 52.25″
- Lens Length: 50.75″
- Depth: 3.5″
- Height: 3″
- Bolt Diameter: 8mm
- Warranty: 3-Year Limited
- Use: Off-road use only
⚠️ Fitment Notes
- Universal Off-Road Lighting Accessory (Not Vehicle-Specific)
- Designed to fit vehicles with a mounting surface capable of supporting a 52″ curved LED light bar
- DT wiring harness and switch sold separately (Part #79900 or #79904)
- Not intended for on-road use
