🧾 Overview

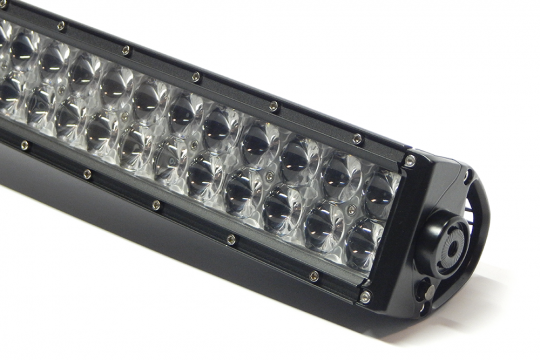

The Southern Truck Lifts 50" Curved LED Light Bar (Chrome Series) is a full-size, high-output lighting solution designed for trucks, Jeeps, and off-road builds that need maximum forward visibility.
Featuring a dual-row LED design with a combo beam pattern, this light bar blends long-distance spot projection with wide flood coverage—making it ideal for both high-speed desert driving and slower trail use. It produces 25,920 lumens from 288 watts, delivering serious usable light output.
The curved housing design helps spread light more naturally across the trail, while the chrome reflector panels give it a more premium look compared to standard blacked-out bars.
✔ Massive 25,920 lumen output for extreme visibility
✔ Combo beam (spot + flood) for distance and width
✔ Curved design for wider light spread
✔ Chrome series styling for premium appearance
✔ Includes wiring harness and mounting hardware
🛠 Installation
- Universal bolt-on installation.
- Mounts to roof rack, bumper, or light brackets.
- Wiring harness included for simplified install.
- Estimated install time: ~1–2 hours
📌 Specs
📌 Key Features & Benefits
- High Output Performance – 25,920 lumens delivers powerful forward illumination.
- Combo Beam Pattern – 8° spot + 90° flood provides both distance and spread.
- Curved Design – Improves peripheral visibility compared to straight bars.
- Chrome Reflector Housing – Enhances output while adding a premium look.
- All-Weather Construction – IP67-rated housing resists water and dust.
📘 Specifications
- Brand: Southern Truck Lifts
- Product Type: LED Light Bar
- Length: 50 Inch (Curved)
- Power: 288W
- Lumens: 25,920
- Beam Pattern: Spot / Flood Combo (8° / 90°)
- LED Type: 96 x 3W High-Intensity LEDs
- Housing: Die-Cast Aluminum
- Lens: Polycarbonate
- Water Rating: IP67
- Voltage: 12V
- Installation Type: Bolt-On
- Sold As: Single

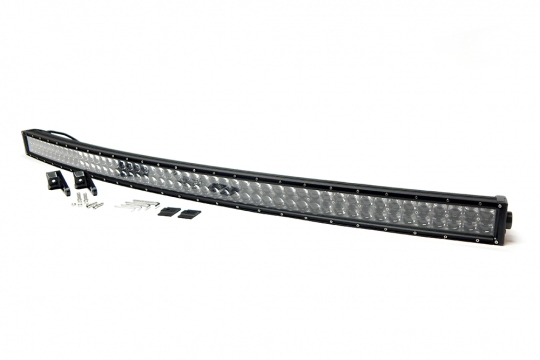

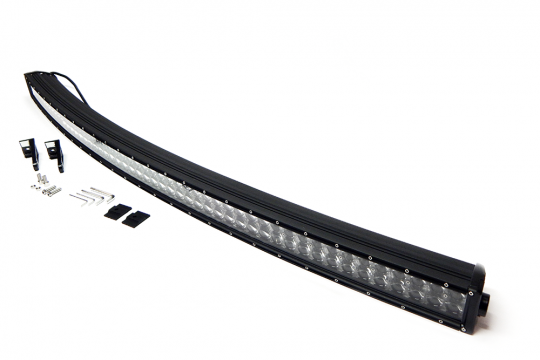

📦 What’s Included (What’s in the Box)
- Lighting Components
- (1) 50" Curved LED Light Bar
- Mounting
- Adjustable Mounting Brackets
- Hardware
- Wiring
- DT Wiring Harness (Relay + Switch)
🛡 Warranty
- 3-Year Limited Warranty
⚠️ Fitment Notes
- Universal (Trucks, Jeeps, SUVs, UTVs)
⚠️ Fitment Notes
- ❗ Designed for roof racks, bumpers, or windshield mounts
- ❗ Requires adequate mounting space (~50" width)
- ❗ Includes DT wiring harness (switch + relay)
- ❗ May require custom brackets depending on vehicle
- ❗ Best suited for off-road use (may not be street legal in all areas)
