🧾 Overview

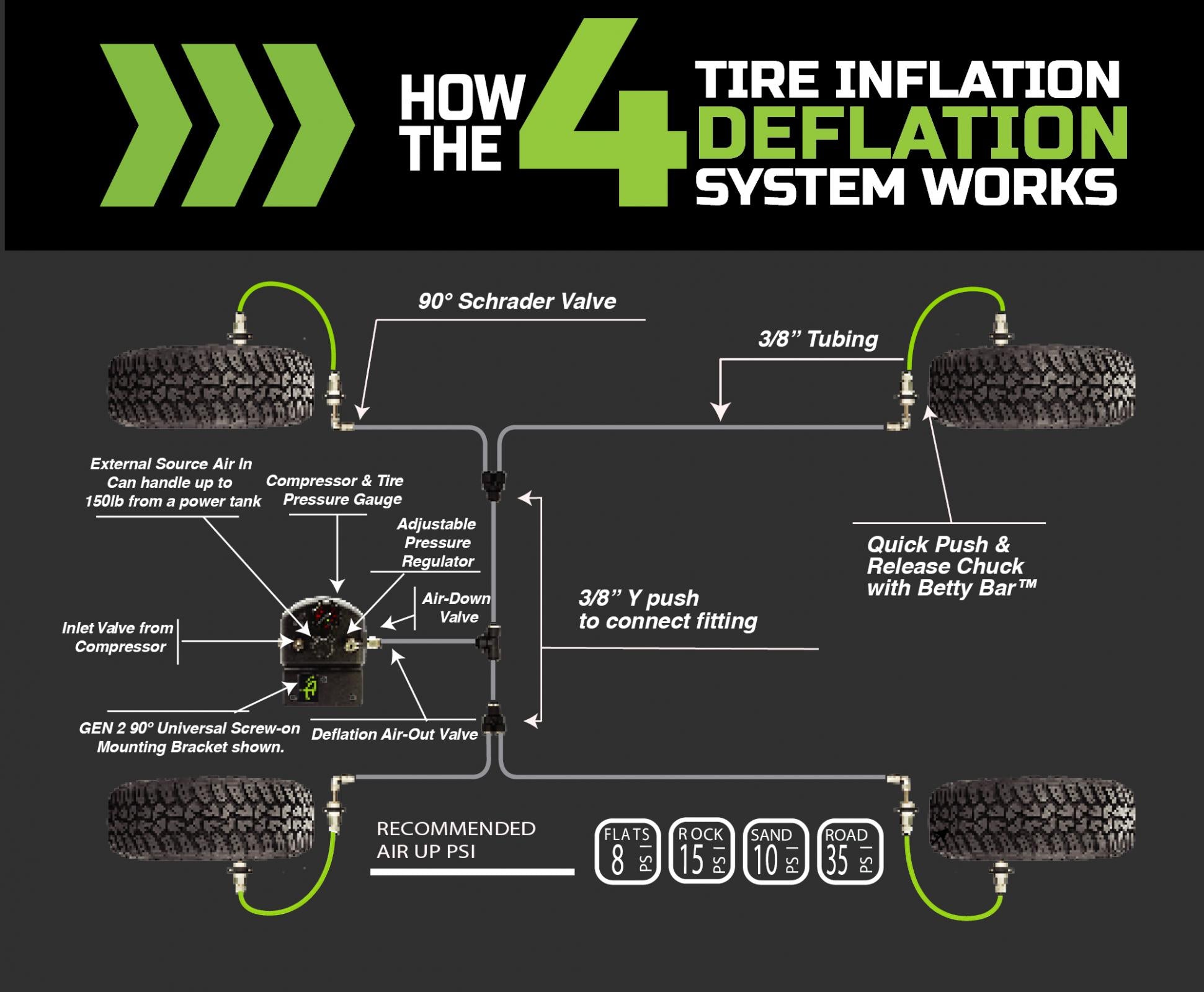

The Up Down Air Gen2 Air Delivery System (ADS) 4-Tire Inflation System is engineered for 2017–2023+ Ford F-150 Raptor trucks, allowing drivers to inflate, deflate, or equalize all four tires at the same time. By connecting each tire to a central ADS controller, this system dramatically reduces the time required to air down for off-road terrain and reinflate after returning to pavement.
Designed for an engine bay mounting location, the Gen2 ADS routes DOT-approved 3/8" air lines to each wheel through durable push-to-connect fittings. The system can operate from a permanent onboard air compressor or a portable air source connected through an external Schrader valve, providing flexible air supply options.
Each kit includes the ADS controller box with pressure regulation and over-pressure protection, along with pre-cut hoses, tire whips, and quick-connect chucks for fast installation and reliable trail performance.
✔ Inflate, deflate, or equalize all four tires simultaneously
✔ Vehicle-specific engine bay mounting system
✔ Compatible with onboard or portable air compressors
✔ DOT-approved 3/8" air lines and heavy-duty fittings
✔ Pre-cut hoses and quick-connect fittings for easier installation
🛠 Installation
- Vehicle-specific installation using the engine bay mounting system and pre-cut air lines.
📌 Specs
- Simultaneous 4-Tire Inflation System – Allows all four tires to inflate, deflate, or equalize pressure at the same time for faster tire management.

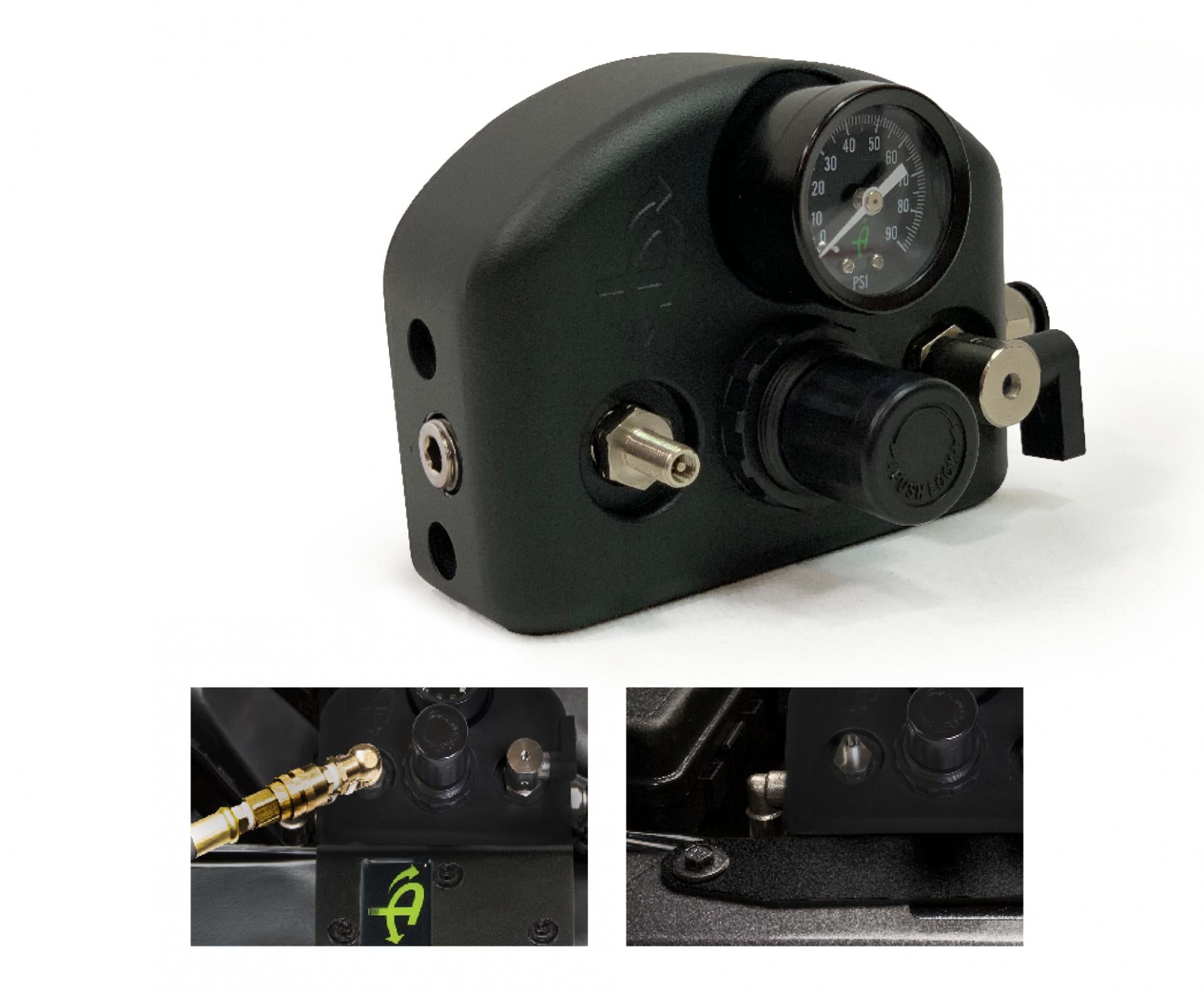

- Gen2 ADS Controller Box – Central air management system with regulator and dual air inlets for onboard or portable air sources.
- 90 PSI Pressure Regulator – Maintains consistent air pressure during inflation.
- 150 PSI Blow-Off Valve – Protects the system from over-pressure conditions.
- DOT-Approved Air Lines – Durable 3/8" air lines provide safe and reliable airflow throughout the system.
- Betty Bar Quick Connect Chucks – Quick-connect tire chucks allow faster attachment and removal.
- Pre-Cut Hoses & Push-To-Connect Fittings – Vehicle-specific hose lengths simplify installation.
- Flexible Air Source Options – Operates with onboard compressors or portable compressors through the external Schrader valve connection.
📘 Specifications
- Brand: Up Down Air
- Product Type: 4-Tire Inflation System
- Series: Gen2 Air Delivery System (ADS)

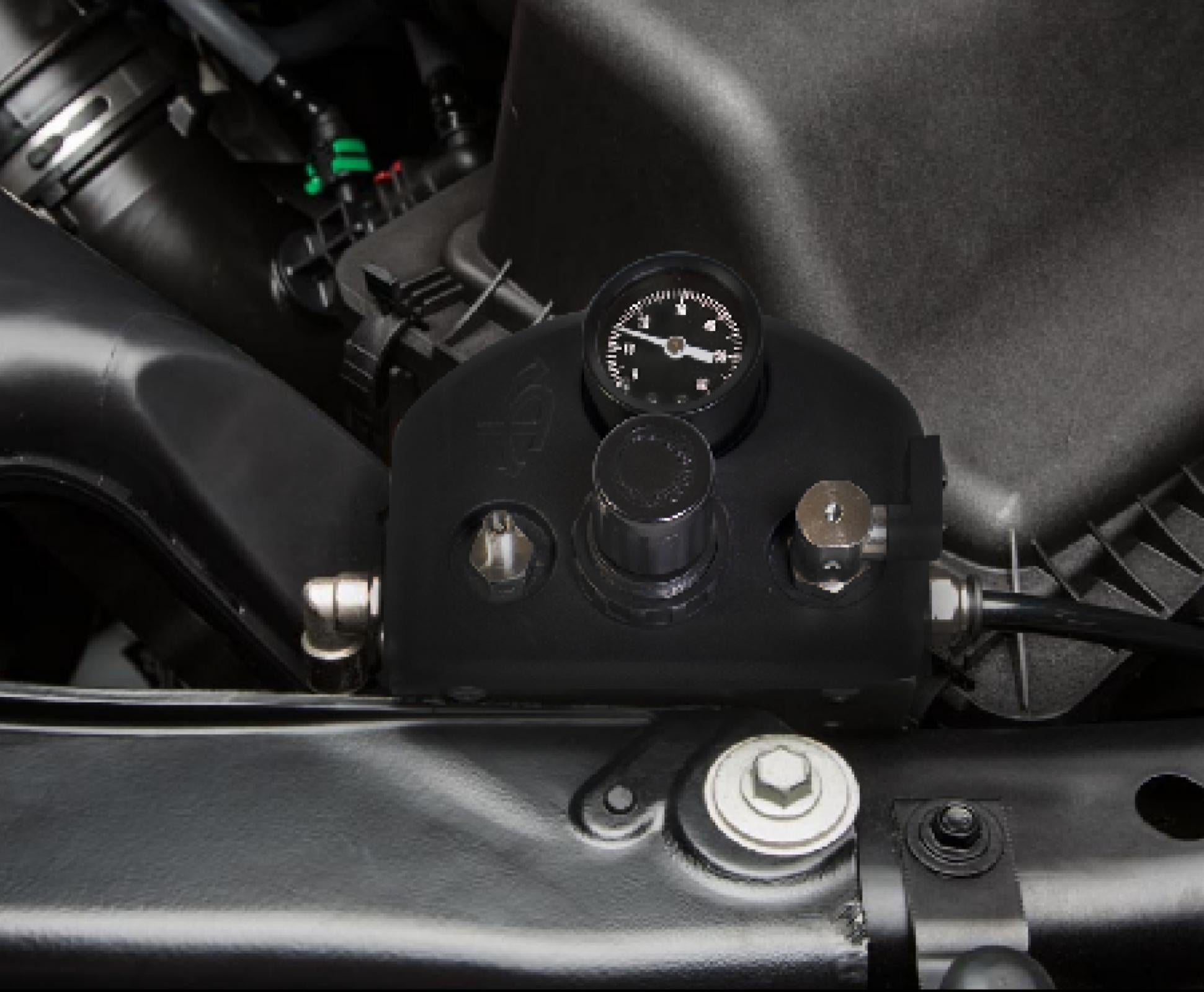

- Mount Location: Engine Bay
- Vehicle Fitment: Ford F-150 Raptor
- Air Line Size: 3/8" DOT-Approved Hose
- Pressure Regulator: 90 PSI
- Blow-Off Valve Rating: 150 PSI
- Air Inlets: Dual Inlet (Onboard or Portable Air Source)
- Installation Type: Vehicle-Specific Kit
- Sold As: Complete Kit

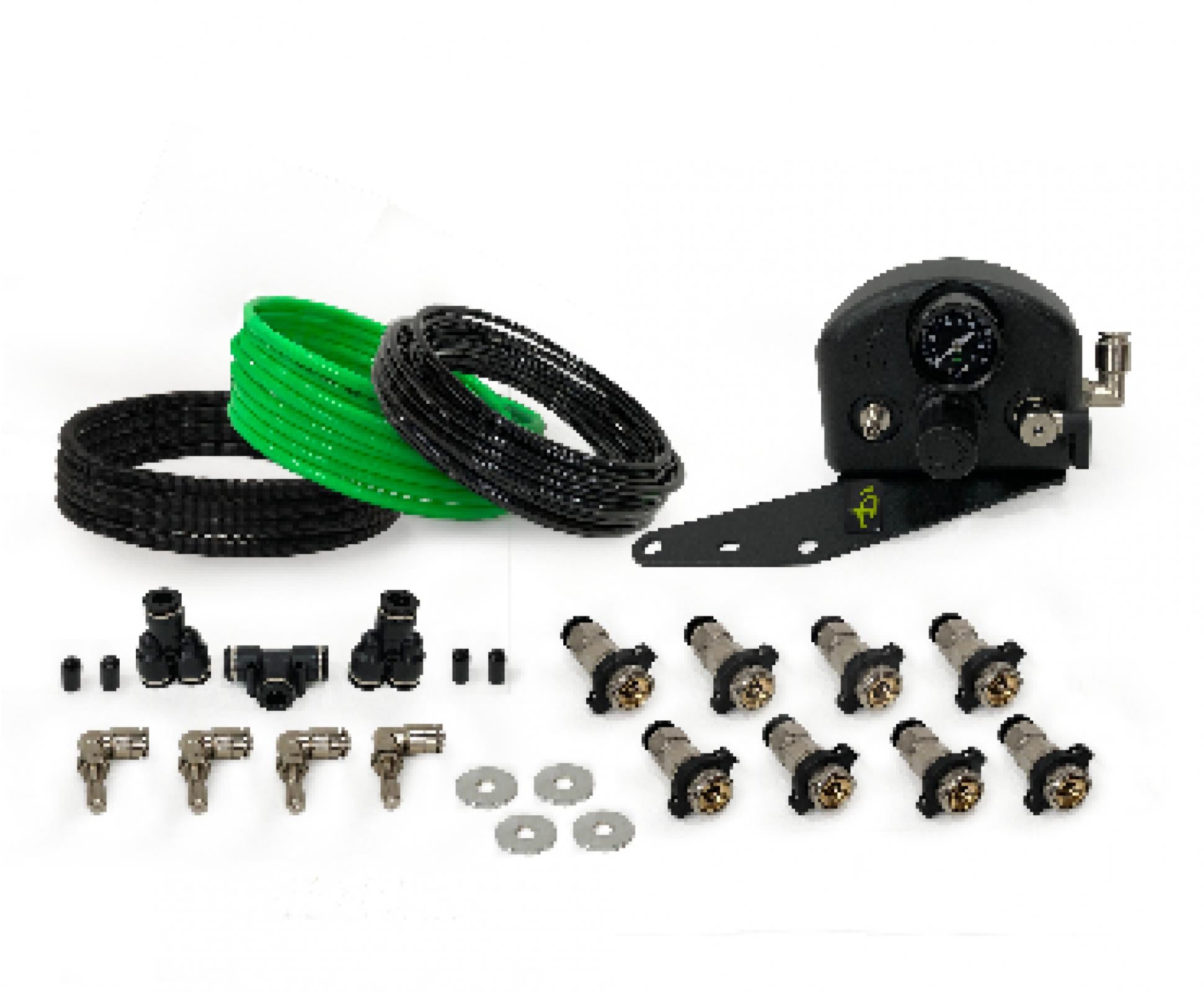

📦 What’s Included (What’s in the Box)
- Air System Components

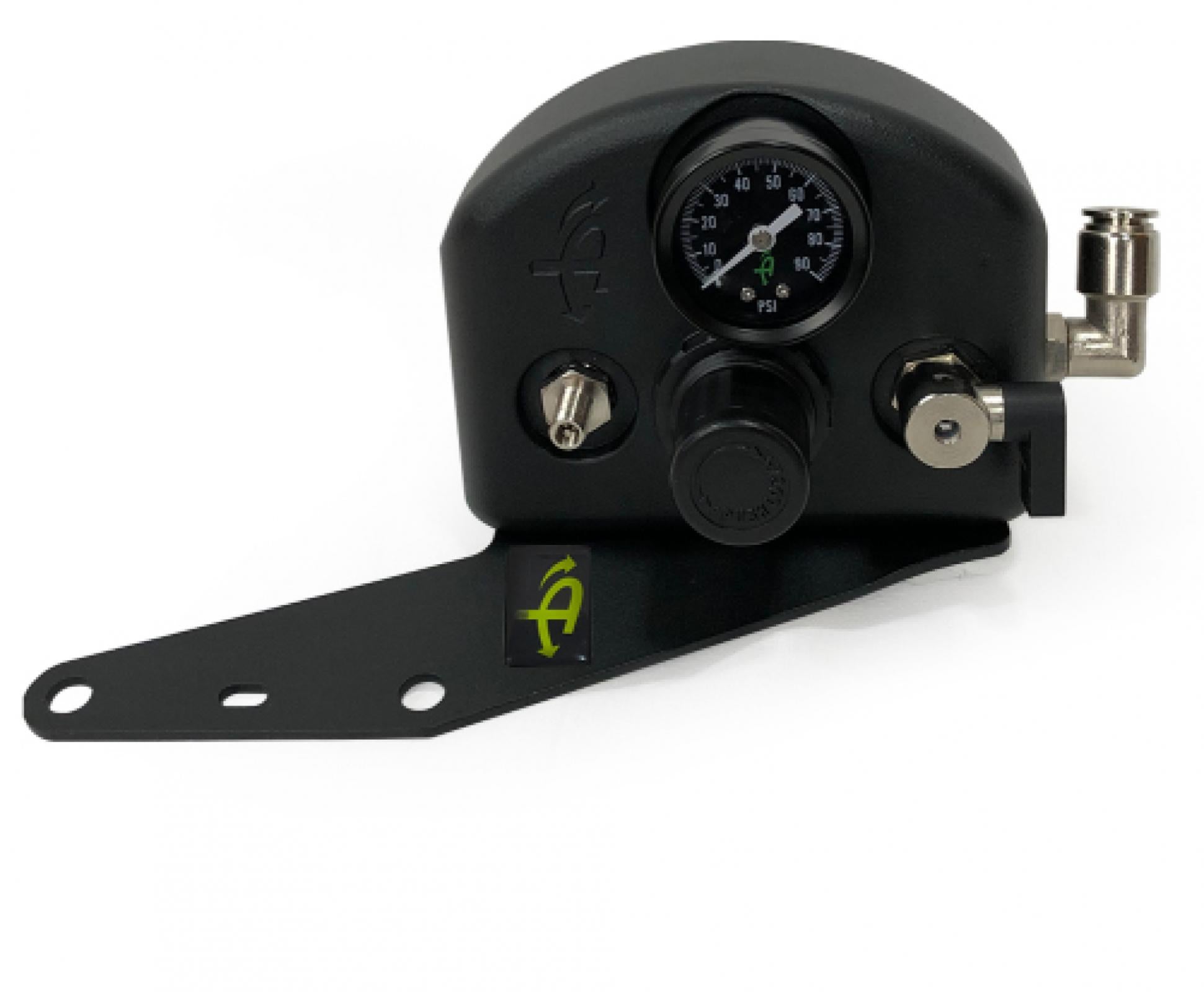

- ADS Controller Box
- 90 PSI Pressure Regulator
- 150 PSI Blow-Off Valve
- Air Line Components

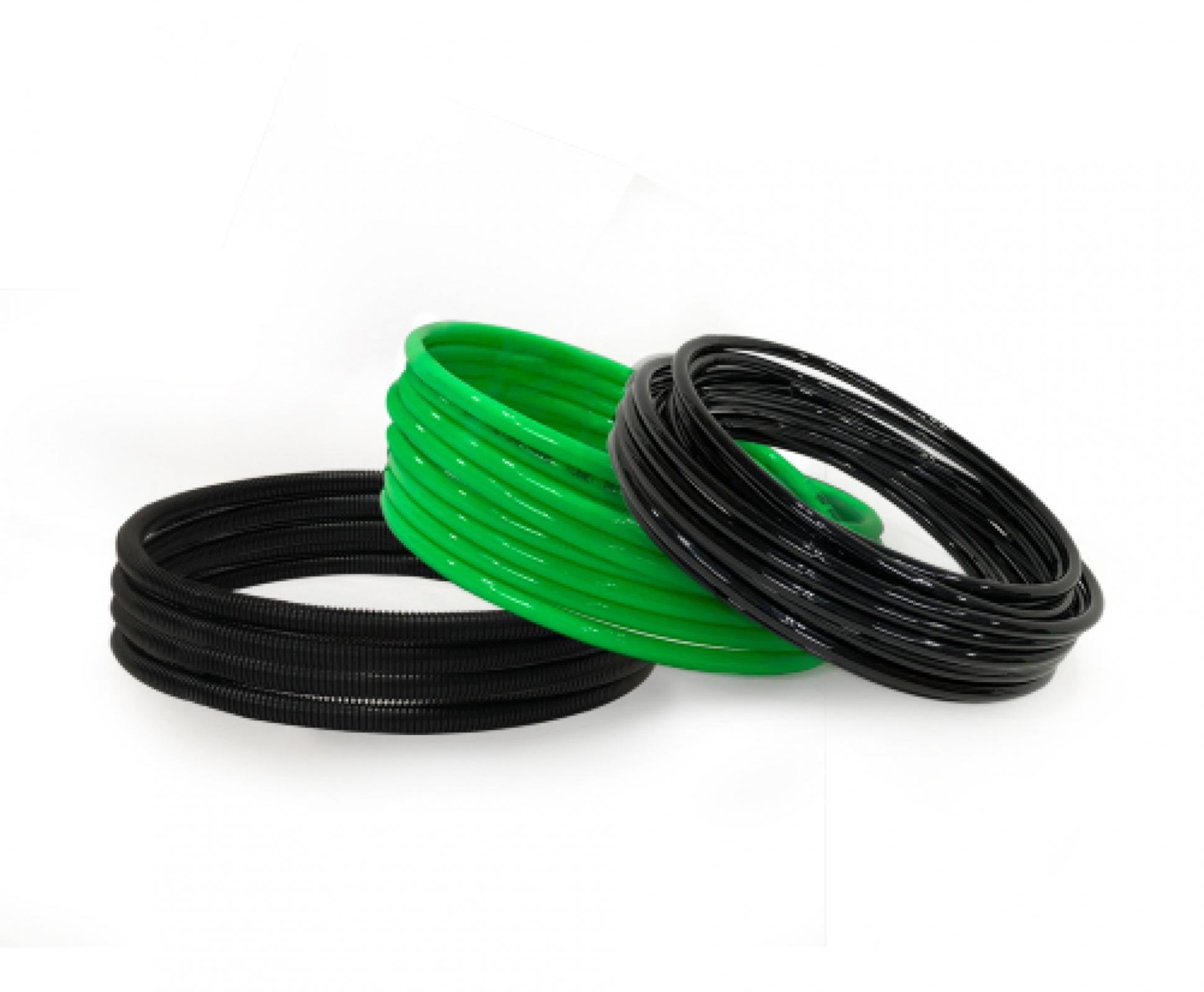

- Pre-Cut DOT-Approved 3/8" Air Lines

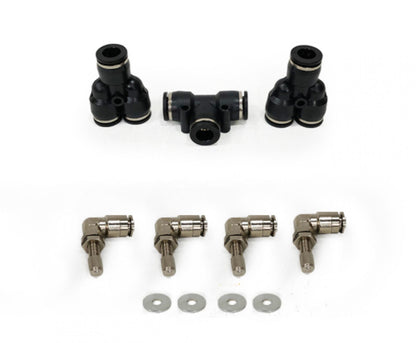

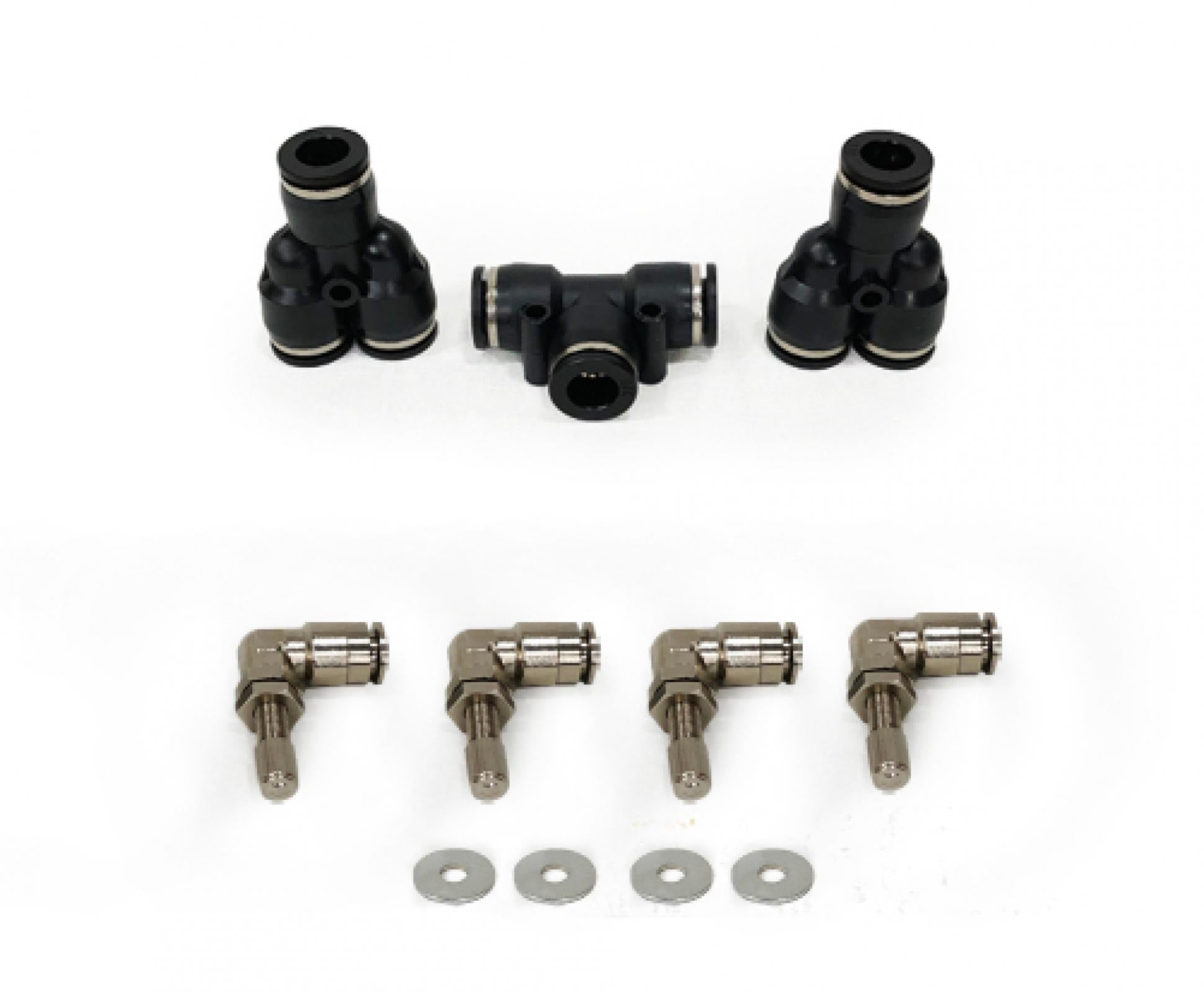

- Push-To-Connect Air Fittings

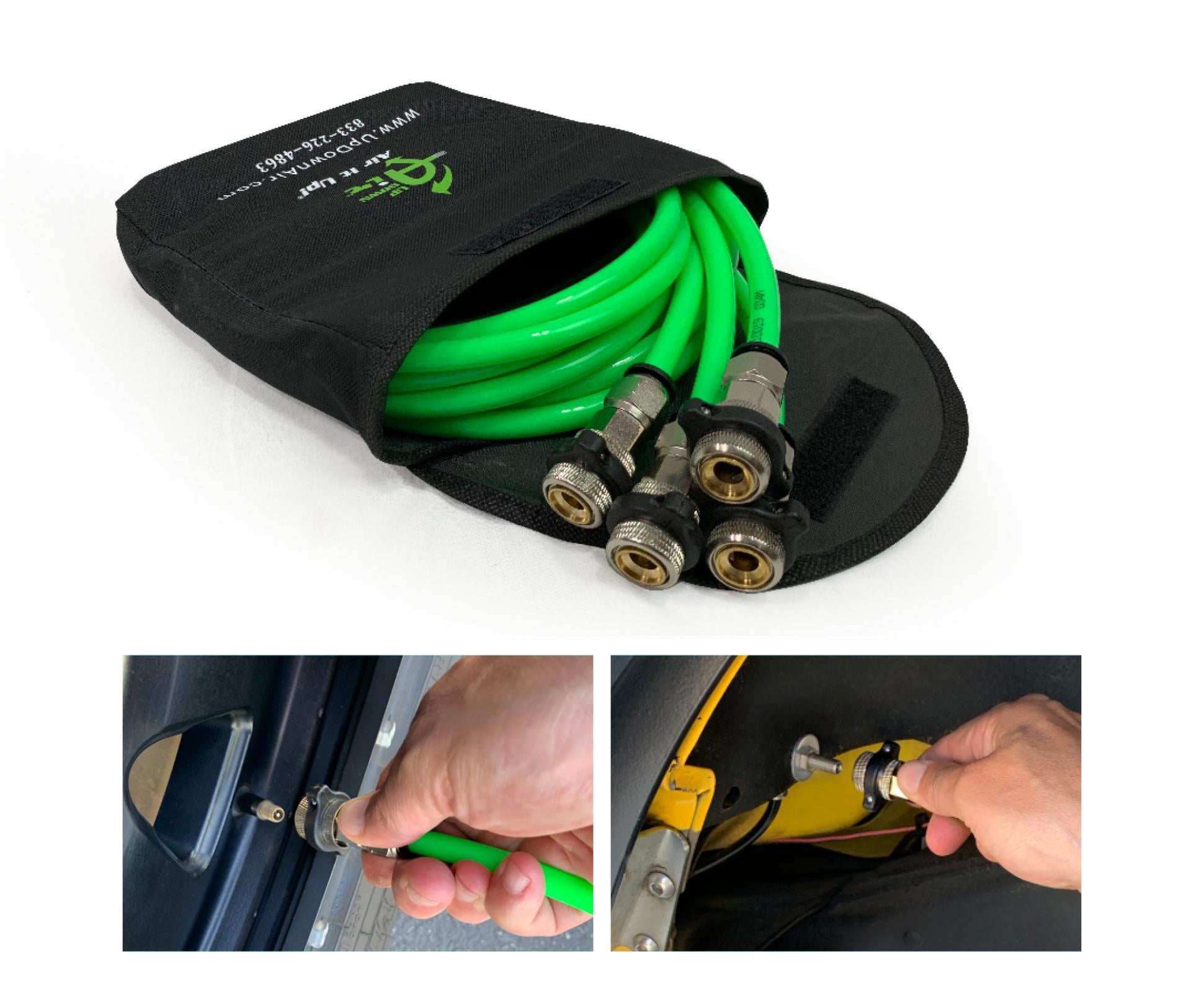

- (4) Green Tire Connect Whips

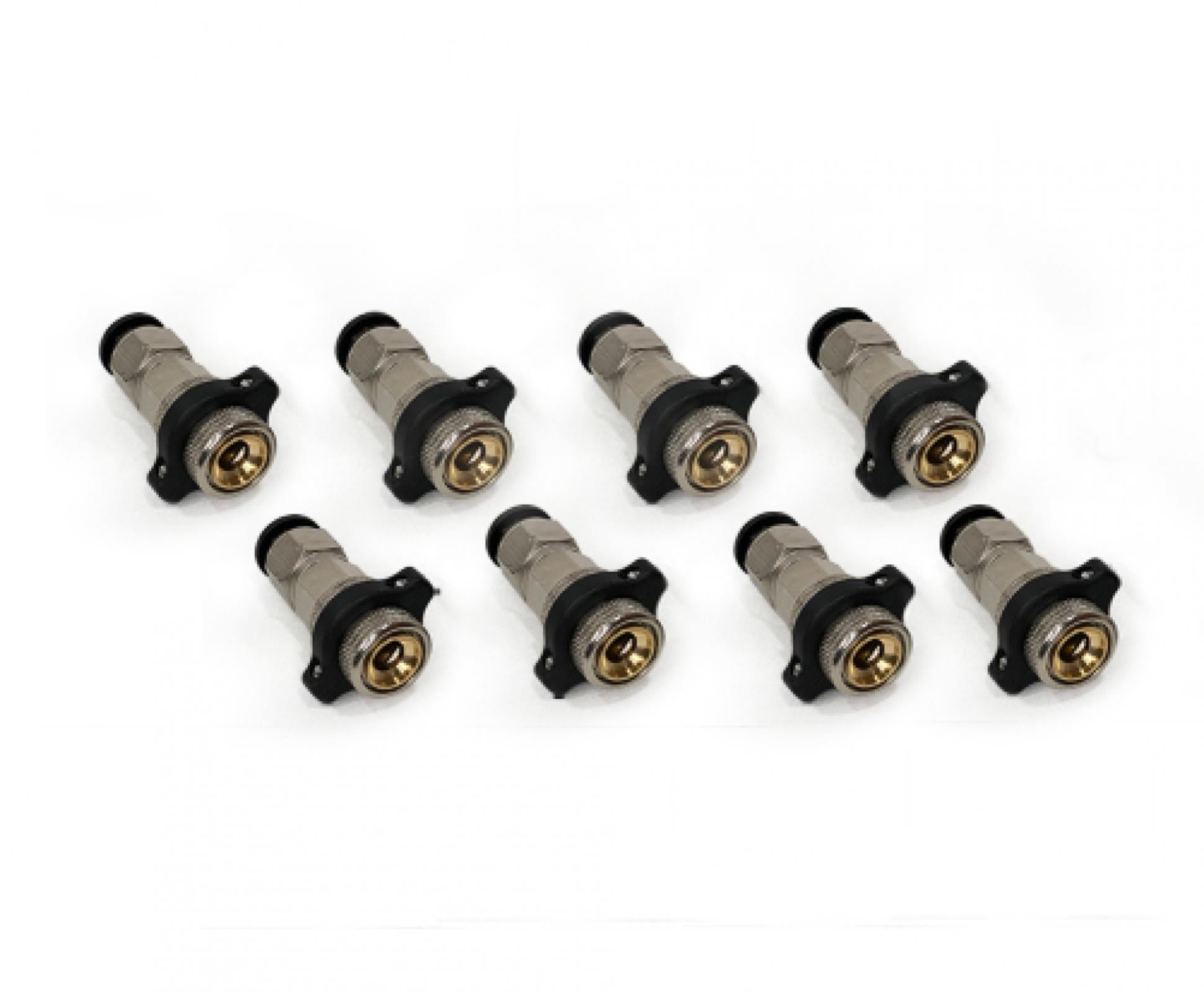

- (8) Quick Connect Tire Chucks with Betty Bar Feature
- Accessories
- Storage Bag
🛡 Warranty
- Manufacturer-backed 5-Year Limited Warranty provided by Up Down Air.
⚠️ Fitment Notes
- Ford F-150 Raptor (2017–2023+)
⚠️ Fitment Notes
- Designed specifically for Ford F-150 Raptor models.
- Compatible with permanent onboard air compressors or portable compressors connected through the external Schrader valve inlet.
- Designed to work with compressors including:
- Up Down Air EGOI Series Compressors
- ARB Air Compressors
- VIAIR Compressors
