🧾 Overview
The TeraFlex 3.5" Alpine RT3 Outback Overland Short Arm Extended-Travel Suspension System for the Jeep Gladiator JT is purpose-built for expedition-style overland travel where consistent ride height, durability under load, and long-distance reliability matter most. Designed for routes like the Canning Stock Route or multi-day backcountry travel, the Outback Overland system builds on the proven Alpine RT3 platform by adding heavy-rate Outback coil springs that maintain proper lift height when carrying armor, gear, tents, fuel, and supplies.
At the heart of the system are Alpine IR Short Arms with patented Independent Rotation (IR) bushings, eliminating bushing bind and allowing unrestricted droop for improved articulation and a smoother, quieter ride on pavement and trail. HD forged adjustable track bars and dedicated track bar brackets re-center the axles, restore roll center, and significantly reduce body roll and tail wag—critical for stability on long, loaded expeditions.
This extended-travel suspension is engineered to safely deliver up to 16 inches of rear suspension travel, while SpeedBump progressive bump stops absorb harsh impacts and protect components in extreme terrain. The result is a refined, confidence-inspiring suspension system that balances comfort, control, and trail capability—no matter the load.
✔ Outback-rated springs for constant load control
✔ Extended-travel Alpine RT performance
✔ Premium IR control arms for articulation and comfort
✔ Expedition-ready durability and geometry correction
🛠 Installation
- Bolt-on suspension system
- No cutting or welding required
- Designed for extended-travel short arm geometry
- Professional installation and alignment strongly recommended
📌 Specs
- Outback heavy-rate coil springs maintain lift height when fully loaded
- Alpine IR Short Arms with Independent Rotation bushings eliminate bind
- Extended-travel design provides up to 16" of rear suspension travel
- HD forged adjustable track bars restore axle centering and roll center
- Track bar brackets improve steering response and handling stability
- SpeedBump progressive bump stops absorb severe trail impacts
- Reduced NVH for superior long-distance driving comfort
📌 Technical Highlights
- Suspension Type: Short Arm Extended-Travel (Outback Overland)
- Lift Height: 3.5 Inches
- Rear Suspension Travel: Up to 16 Inches
- Control Arms: Adjustable Alpine IR (Front & Rear)
- Track Bars: HD Forged Adjustable (Front & Rear)

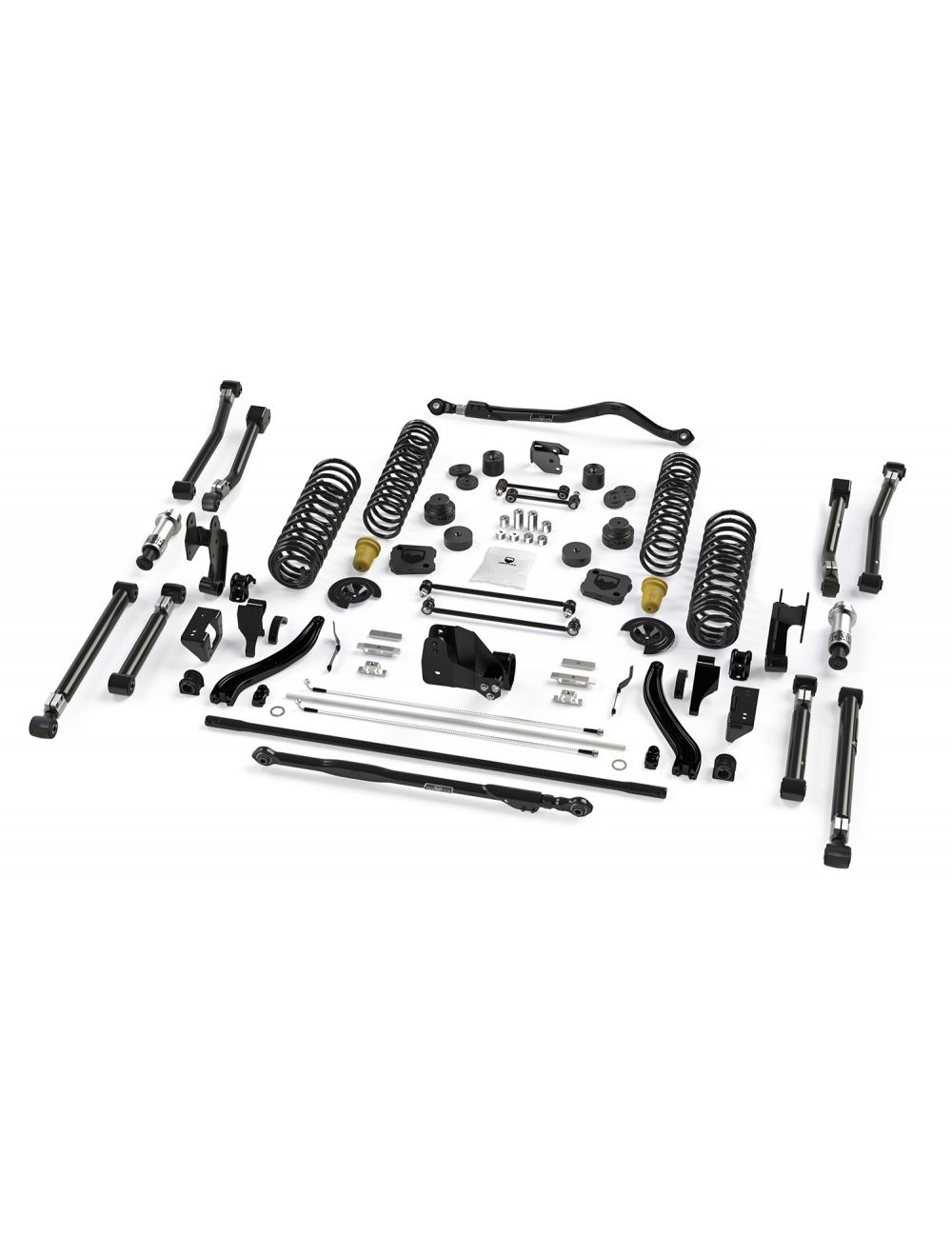

📌 What’s Included
- 3.5" Outback Front Lift Coil Springs
- 3.5" Outback Rear Lift Coil Springs
- Alpine IR Adjustable Short Arm Kit (8-Arm)
- Rear Extended-Travel Upper Control Arm Axle Brackets
- HD Forged Adjustable Front Track Bar
- HD Forged Adjustable Rear Track Bar
- Front Lower Track Bar Bracket
- Rear Lower Track Bar Bracket
- SpeedBump Progressive Bump Stops (Front & Rear)
- Front Sway Bar Quick Disconnect Kit
- Forged Rear Sway Bar Kit
- Rear Driveshaft Lowering Kit
- Extended-Travel Rear Accessory Kit
- Rear Coil Spring Retainers (Upper & Lower)
- Front & Rear Brake Line Anchor Kits
- All required mounting hardware
- 📏 Maximum Tire Size
- Sport / Overland Fenders:
- 33" tires (2" front / 1" rear bump stops)
- 35" tires (3" front / 2.5" rear bump stops)
- Rubicon / Mojave Fenders:
- 35" tires (2" front / 1" rear bump stops)
- 37" tires (2" front / 2.5" rear bump stops)
⚠️ Fitment Notes
- Jeep Gladiator JT
- Important Notes:
- Shocks NOT included
- Falcon Performance Shocks recommended (sold separately)
- Designed for constant-load overland and expedition builds
