🧾 Overview
The ICON Stage 3 Suspension System for the 2015–2020 Ford F-150 4WD is a balanced performance upgrade designed to improve ride quality, wheel travel, and suspension control without compromising daily drivability or towing capability. Built around ICON’s proven 2.5 Series shocks, this system delivers controlled damping, improved handling, and a compliant ride on pavement, dirt, and light off-road terrain.
This system features height-adjustable 2.5 Series front coilovers with internal reservoirs paired with 2.5 Series piggyback reservoir rear shocks, providing consistent damping and improved heat management under repeated use. Tubular upper control arms with ICON Delta Joint technology restore proper alignment geometry, increase caster, and add strength for lifted applications.
✔ Adjustable 0–2.63" front lift
✔ 2.5 Series front & rear shocks for balanced performance
✔ Tubular UCAs for improved alignment and durability
✔ Maintains factory towing capacity
🛠 Installation
- Bolt-on installation using factory mounting locations. No cutting or welding required. Alignment required after installation.
📌 Specs
- Key Features & Benefits
- 2.5 Series front coilovers with 0–2.63" height adjustment
- Internal reservoir design for improved cooling and consistent damping
- Vehicle-specific shock valving tuned for 2015–2020 F-150 chassis
- Tubular upper control arms increase caster and alignment range
- ICON Delta Joint provides high-angle articulation with long-term durability
- Rear 2.5 Series piggyback reservoir shocks improve rear-end control
- Maintains factory towing capacity
- Fully bolt-on system with no cutting or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 3 Suspension System
- Lift Height: 0–2.63 inches (front adjustable)
- Shock Series: ICON 2.5 Aluminum Series
- Front Shocks: 2.5 VS Internal Reservoir Coilovers
- Rear Shocks: 2.5 VS Piggyback Reservoir Shocks
- Upper Control Arms: Tubular with Delta Joint
- Vehicle Platform: Ford F-150 4WD

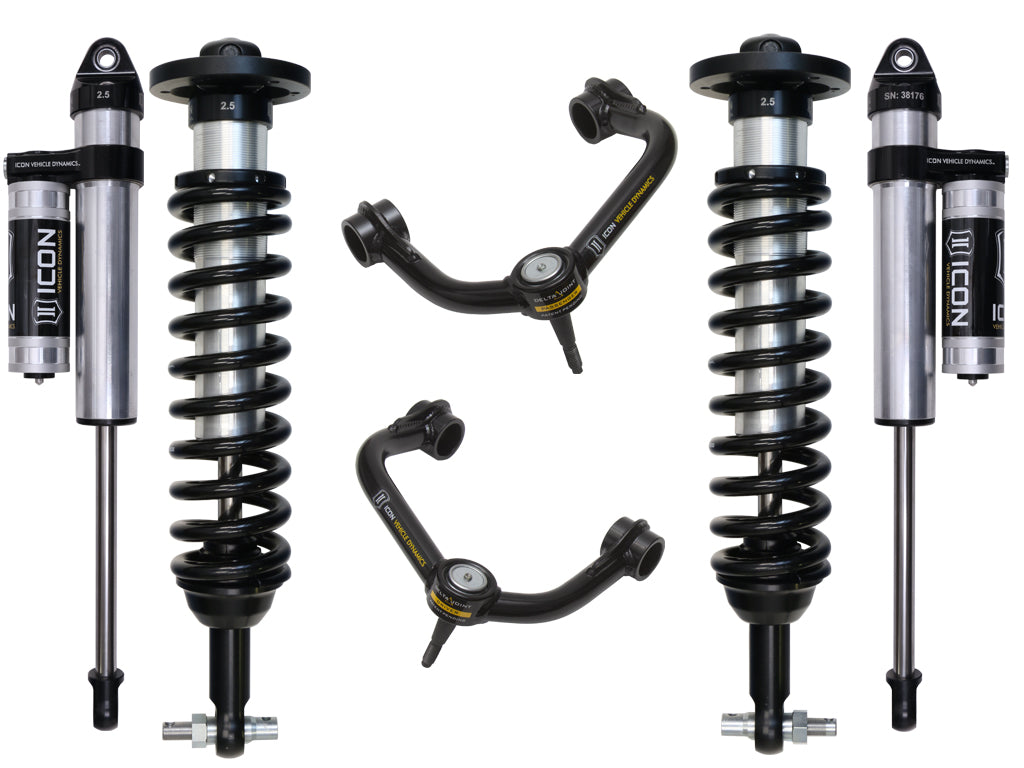

📦 What’s Included (What’s in the Box)
- 2.5 Series front internal reservoir coilovers (PN 91711)
- Tubular upper control arms with Delta Joint (PN 98500DJ)
- 2.5 Series rear piggyback reservoir shocks (PN 97720P)
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford F-150 4WD
- 2015–2020
⚠️ Fitment Notes
- 4WD models only. Not compatible with aftermarket spindles. Diesel-equipped models will see reduced lift range. Professional installation and alignment are recommended.
