🧾 Overview

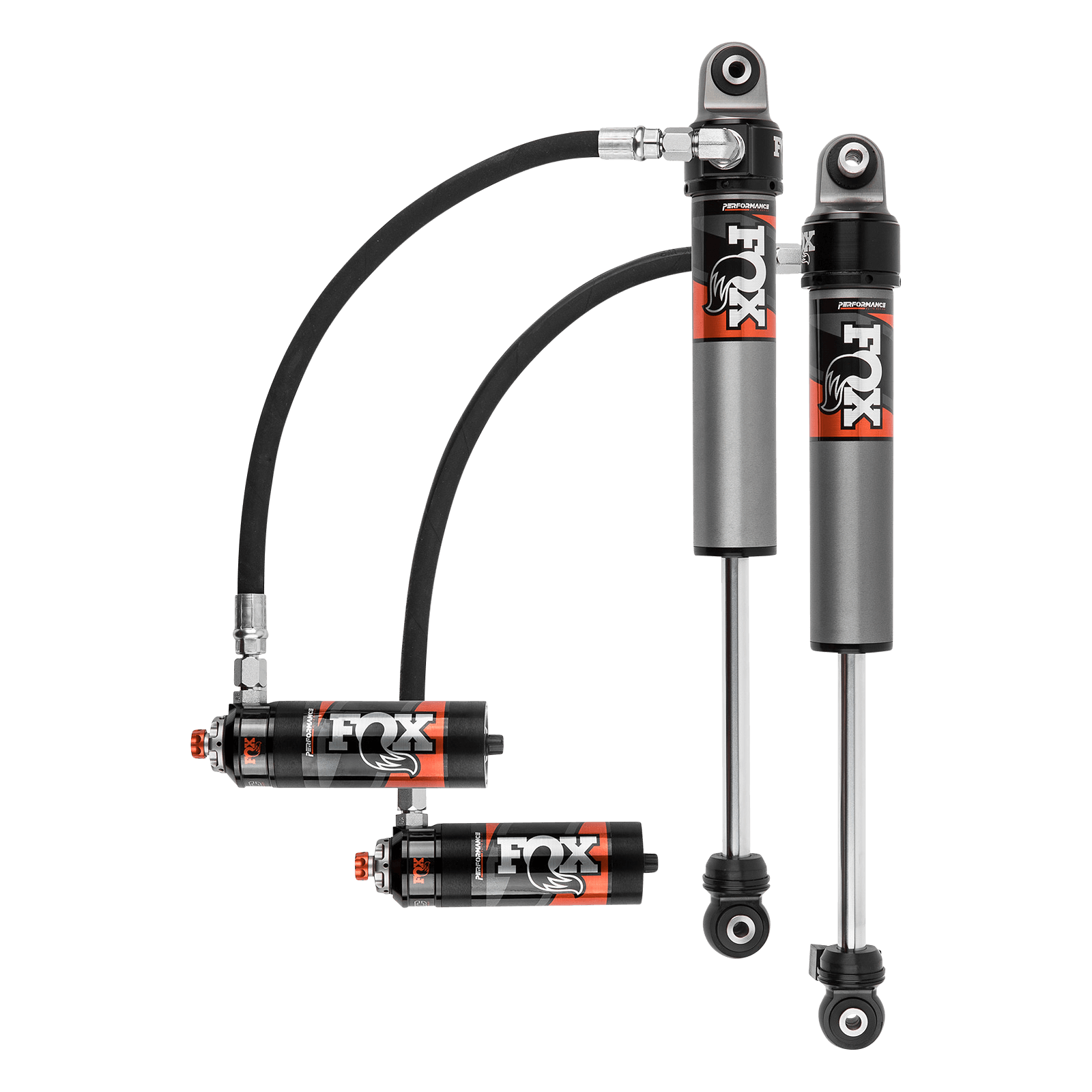

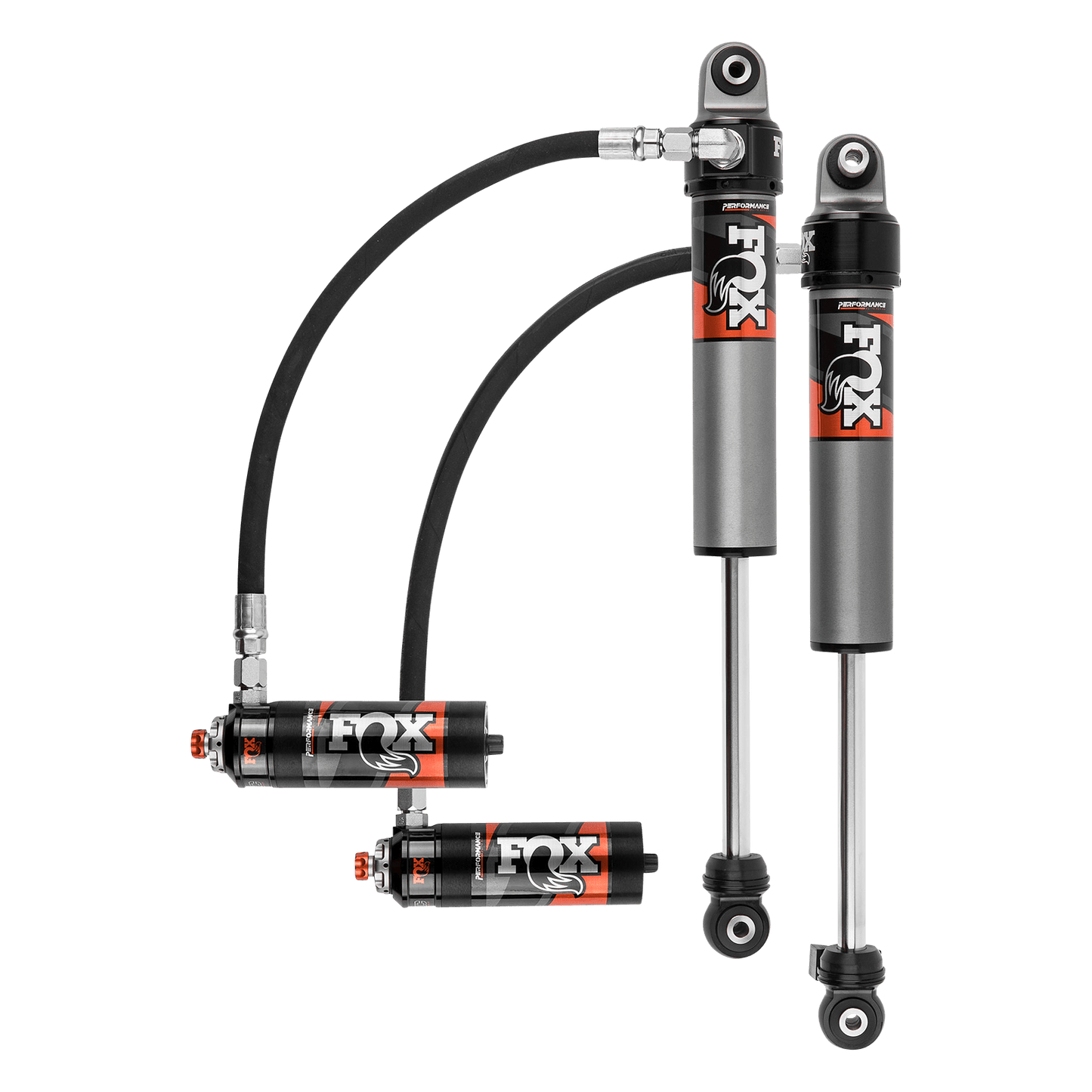

The FOX Performance Elite Series 2.5 Remote Reservoir Front Shocks deliver race-proven damping and control for 2018–present Jeep Wrangler JL models that see real off-road use. Designed using FOX’s off-road racing technology, these shocks provide enhanced ride quality, precise control, and improved heat management when driving beyond the pavement.
The external remote reservoir increases oil and nitrogen capacity to reduce fade under sustained use, while application-specific valving ensures predictable handling across varying terrain. Built for both stock and lifted JL applications, these bolt-on shocks offer elite-level performance in a street-friendly package.
✔ Race-derived Performance Elite technology
✔ Remote reservoir for improved cooling and consistency
✔ Tuned for JL front suspension geometry
✔ Available in multiple lift-height configurations
🛠 Installation
- Direct bolt-on replacement for factory front shocks
- Uses OEM mounting locations
- Remote reservoir mounts using included universal bracket
- No cutting or fabrication required
- Professional installation recommended for proper routing and setup
📌 Specs
- Position: Front
- Series: FOX Performance Elite 2.5
- Design: Gas-charged monotube with external remote reservoir
- Body Diameter: 2.5″
- Shock Body: Impact-extruded & CNC-machined 6061-T6 aluminum
- Finish: Hard-anodized for corrosion resistance
- Reservoir: External, nitrogen-charged
- Components: Black-anodized CNC-machined 6061-T6 billet aluminum
- Shaft: 7/8″ hard-chrome plated, heat-treated alloy steel
- Piston: Race-developed high-flow piston
- Valving: Application-specific
- Seals: Redundant sealing system (main, wiper, scraper)
- Oil: JM92 Advanced Suspension Fluid
- Bearings: PTFE-lined spherical bearings
- Top Mount: Eyelet
- Bottom Mount: Eyelet
📐 Lift Height Options
- Select the correct shock length based on your front suspension lift:
- 0–1.5″ Lift
- 2–3″ Lift
- 3.5–4″ Lift
- 4.5–6″ Lift
- Each variant is tuned to maintain proper suspension travel and performance.
⚠️ Fitment Notes
- 2018–present Jeep Wrangler JL
- Front shocks only
- Includes universal reservoir mounting bracket
- Not compatible with Mojave models
- Must select correct lift height option
