🧾 Overview

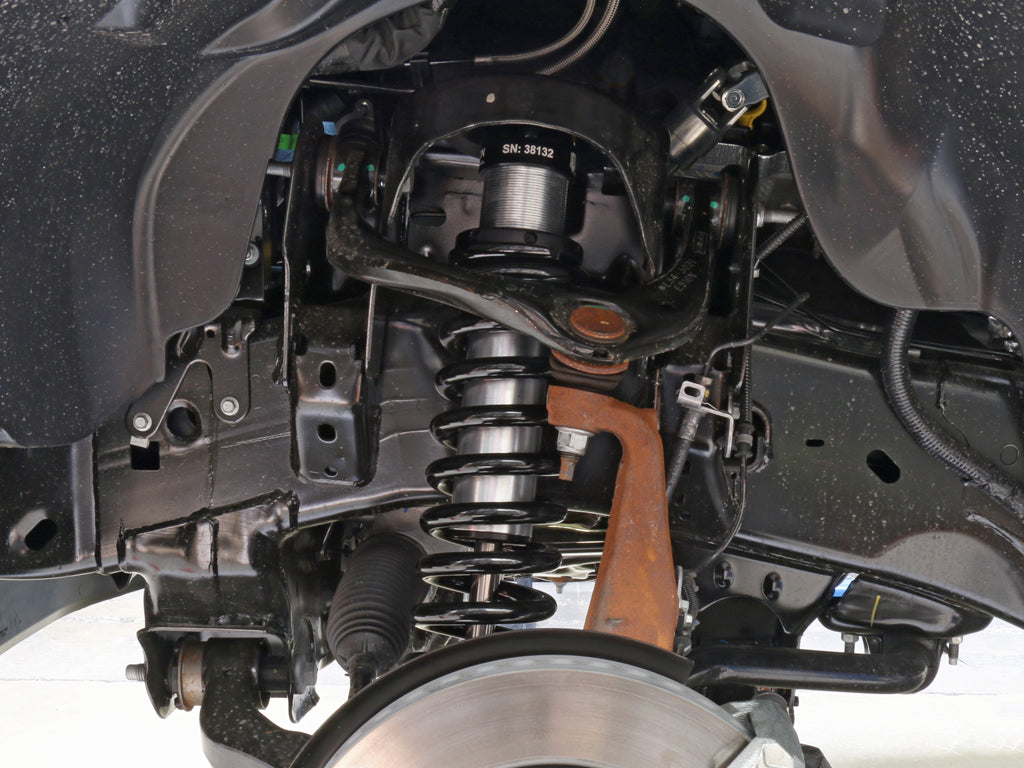

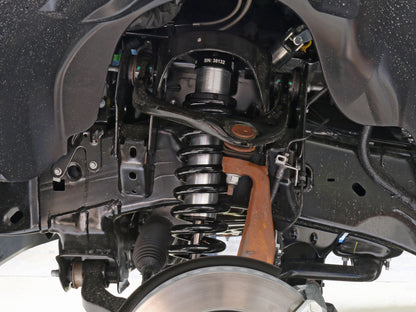

The ICON Vehicle Dynamics V.S. Series 2.5” Front Coilover Kit is a premium suspension upgrade for 2015–2020 Ford F-150 4WD trucks. Designed specifically for the lighter-weight aluminum-body F-150 platform, these coilovers deliver improved ride quality, increased wheel travel, and precise vehicle-specific damping both on and off-road.
With adjustable lift height from 0–2.63”, this system allows clearance for larger, more aggressive wheel and tire combinations while maintaining balanced suspension geometry. The larger 2.5” shock body and increased piston area over stock components provide improved damping control across a wide range of terrain conditions.
When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, the vehicle achieves balanced front-to-rear performance for a complete suspension solution.
✔ Adjustable 0–2.63” front lift
✔ Vehicle-specific valving for 2015–2020 F-150 4WD
✔ Increased wheel travel and ride quality
✔ ICON engineered Eibach coil springs
✔ 100% bolt-on installation
🛠 Installation
- 100% bolt-on installation using factory mounting locations.
- Ride height must be set prior to final torque.
- Alignment required after installation.
- Suspension should be cycled to verify clearance at full droop and compression.
📌 Specs
- Key Features & Benefits
- Vehicle-Specific Valving – Tuned for the lighter aluminum-body F-150 platform
- Adjustable Ride Height – 0–2.63” of front lift capability
- 2.5” Shock Body – Increased oil capacity and damping performance
- Increased Wheel Travel – Improved suspension articulation over stock
- ICON Engineered Eibach Springs – Matched spring rates for optimal ride balance
- 6061 CNC Machined Aluminum Components – Strength and corrosion resistance
- CAD Plated Shock Body – Long-term durability
- 7/8” Induction Hardened Shaft – Strength under aggressive use
- High Strength Alloy Lower Bar Pin – Precision fitment
- FK Rod End Bearings – Reduced deflection and extended service life
- 100% Bolt-On Installation – No cutting, drilling, or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5
- Shock Type: Coilover
- Position: Front
- Lift Height: 0–2.63” Adjustable
- Lift Height (Diesel Models): 0–2.13”
- Shock Body Diameter: 2.5”
- Shaft Diameter: 7/8”
- Spring Type: ICON Engineered Eibach Coil Spring
- Serviceable: Yes – Rebuildable & Revalveable
- Installation Type: Bolt-On
- Drive Type: 4WD Only
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components

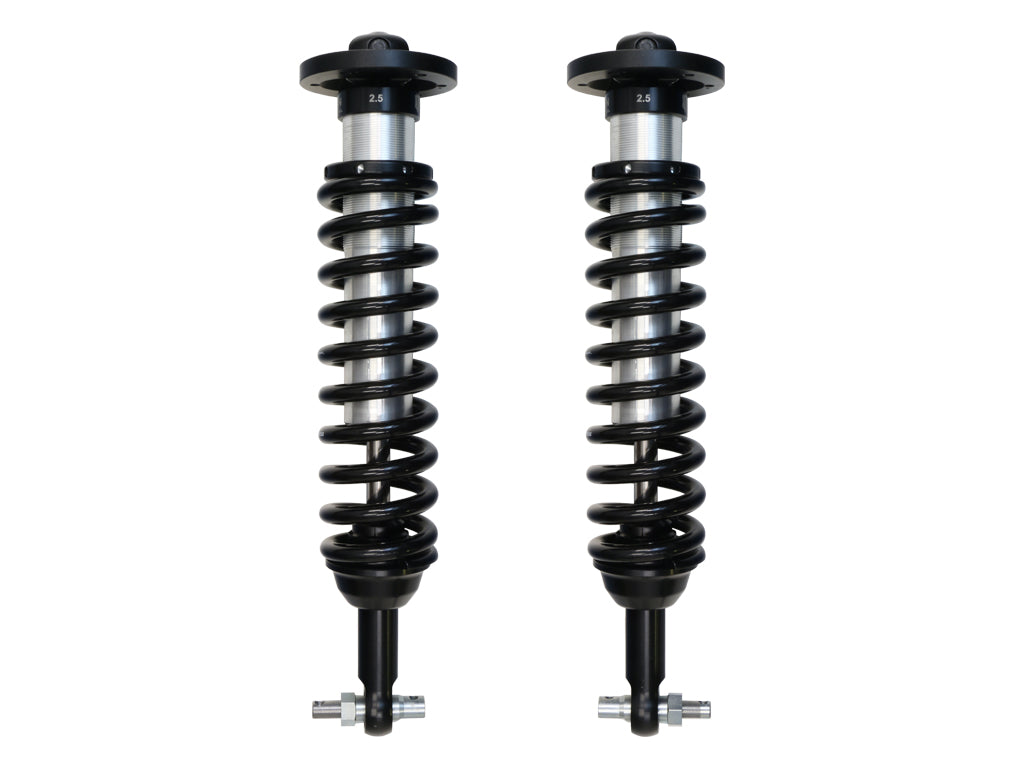

- (2) ICON V.S. 2.5 Front Coilover Shocks
- Pre-installed ICON engineered Eibach coil springs
- Mounting Components
- High strength alloy CNC machined lower bar pins
- Application-specific mounting hardware
- If you provide the exact ICON part number, I will verify whether spanner wrench and hardware kit components are included under that SKU for 100% box accuracy.
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford F-150 4WD (2015–2020)
⚠️ Fitment Notes
- Compatible with 4WD models only.
- Models equipped with Power Stroke diesel engines will have a lift range of 0–2.13” over stock.
- Lift heights above 2” may require aftermarket front upper control arms to maintain proper alignment.
- 33” x 11.50” tires fit without trimming. Larger tires may require fender trimming and modifications.
