🧾 Overview
The TeraFlex Gladiator 4.5 Inch Coil Spring Base Lift Kit is a foundational suspension upgrade designed to deliver significant ride height and tire clearance for Jeep Gladiator JT owners planning a staged or custom suspension build. This base lift includes only essential lift components and does not provide the full drivability or geometry correction of a complete suspension system.
Engineered as a starting point for advanced builds, this kit requires the addition of front control arm Sport Frame Brackets or adjustable control arms, along with adjustable track bars, to properly correct suspension geometry. For maximum capability, TeraFlex also recommends pairing this base kit with an Extended-Travel suspension system.
Note: Shocks are not included. Falcon Performance Shocks are strongly recommended, as they are engineered to work with TeraFlex lift coil springs for optimal compression, rebound, and vehicle stability.
✔ 4.5" coil spring base lift kit
✔ Designed for staged or custom suspension builds
✔ Provides substantial ground clearance and tire fitment
✔ Requires additional components for proper drivability
✔ Bolt-on installation using factory mounting points
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. Designed as a base lift solution—additional suspension components are required to correct geometry and achieve proper drivability. Professional installation and alignment are recommended.
📌 Specs
- Key Features & Benefits
- Lift coil springs deliver aggressive ride height and off-road clearance
- Base-level components allow full customization with aftermarket arms and track bars
- Track bar bracket helps recenter the front axle
- Bump stop extensions and shims protect suspension components at full compression
- Extended sway bar links maintain proper sway bar geometry
- Ideal foundation for advanced off-road and overland builds
📘 Specifications
- Brand: TeraFlex
- System Type: Coil Spring Base Lift Kit
- Lift Height: 4.5 inches
- Position: Front & Rear
- Vehicle Platform: Jeep Gladiator JT
- Body Style: Pickup
- Shock Compatibility: Not included (Falcon Performance Shocks recommended)
- Installation Type: Bolt-on
- Maximum Tire Size (with proper bump stop configuration):
- Sport / Overland Fenders
- 33" – 2" front / 1" rear
- 35" – 3" front / 2.5" rear
- 37" – 4" front / 3.5" rear
- Rubicon / Mojave Fenders
- 35" – 2" front / 1" rear
- 37" – 2" front / 2.5" rear
- 39" – 4" front / 3" rear

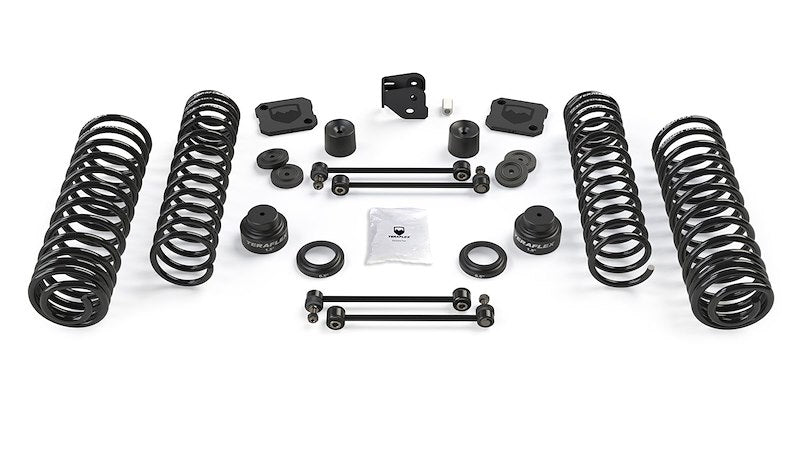

📦 What’s Included (What’s in the Box)
- Front Components
- 4.5" front lift coil springs (PN 1874300)
- Front lower track bar bracket – 4.5" lift (PN 1953500)
- 2" front lower bump stop strike pad extensions (PN 12-01-109-200) x2
- 0.5" front lower bump stop strike pad shims (PN 12-02-109-050) x4
- 11.5" front sway bar link kit – 2.5–4.5" lift (PN 1764300)
- Rear Components
- 4.5" rear lift coil springs (PN 1874400)
- 1.5" rear upper bump stop extension kit (PN 1969300) x2
- 0.5" rear upper bump stop shim kit (PN 1969400)
- 0.5" rear lower bump stop strike pad shim kit (PN 1969100)
- 13" rear sway bar link kit – 2.5–4.5" lift (PN 1774300)
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by TeraFlex.
⚠️ Fitment Notes
- Jeep Gladiator JT
⚠️ Fitment Notes
- This is a base lift kit and does not include geometry-correcting components. Front control arm brackets or adjustable control arms and adjustable track bars are required for proper handling. Shocks are not included. Professional installation and alignment are strongly recommended.
