🧾 Overview
The TeraFlex JL 4-Door 3.5 Inch Coil Spring Base Lift Kit with 9550 VSS Twin-Tube Shocks is a foundational lift solution designed to provide increased ride height and tire clearance using essential lift components, paired with shocks specifically engineered to work with TeraFlex lift coil springs. This package is ideal for Jeep owners who want a basic, budget-conscious lift with matched damping, while planning to add geometry-correcting components later.
Unlike complete suspension systems, this base kit does not fully correct suspension geometry on its own. To achieve proper drivability and handling, TeraFlex recommends adding Front Control Arm Sport Brackets, longer Front Lower Sport Control Arms, or adjustable Alpine (IR) control arms, along with front and/or rear HD Forged Adjustable Track Bars.
The included 9550 VSS Twin-Tube Shocks are tuned to complement TeraFlex lift springs, improving compression and rebound control for enhanced stability compared to running lift springs alone.
✔ 3.5" coil spring base lift with matched shock package
✔ Includes TeraFlex 9550 VSS Twin-Tube Shocks
✔ Increased ride height and tire clearance
✔ Ideal foundation for staged suspension builds
✔ Bolt-on installation using factory mounting points
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. Designed as a base lift solution—additional suspension components are required for proper geometry and handling. Professional installation and alignment are recommended.
📌 Specs
- Key Features & Benefits
- Lift coil springs provide increased clearance and aggressive stance
- 9550 VSS Twin-Tube Shocks engineered specifically for TeraFlex lift springs
- Front and rear track bar axle brackets help recenter axles
- Bump stop extensions protect suspension components at full compression
- Sway bar links maintain proper sway bar geometry at increased lift height
- Designed for builders planning phased suspension upgrades
📘 Specifications
- Brand: TeraFlex
- System Type: Coil Spring Base Lift Kit with Shocks
- Lift Height: 3.5 inches
- Position: Front & Rear
- Vehicle Platform: Jeep Wrangler Unlimited JL
- Body Style: 4-Door
- Shocks Included: Yes – TeraFlex 9550 VSS Twin-Tube
- Installation Type: Bolt-on
- Maximum Tire Size (with proper bump stop configuration):
- Sport / Sahara Fenders
- 35" – 3" front / 2.5" rear
- Rubicon Fenders
- 35" – 2" front / 2" rear
- 37" – 2.5" front / 3" rear

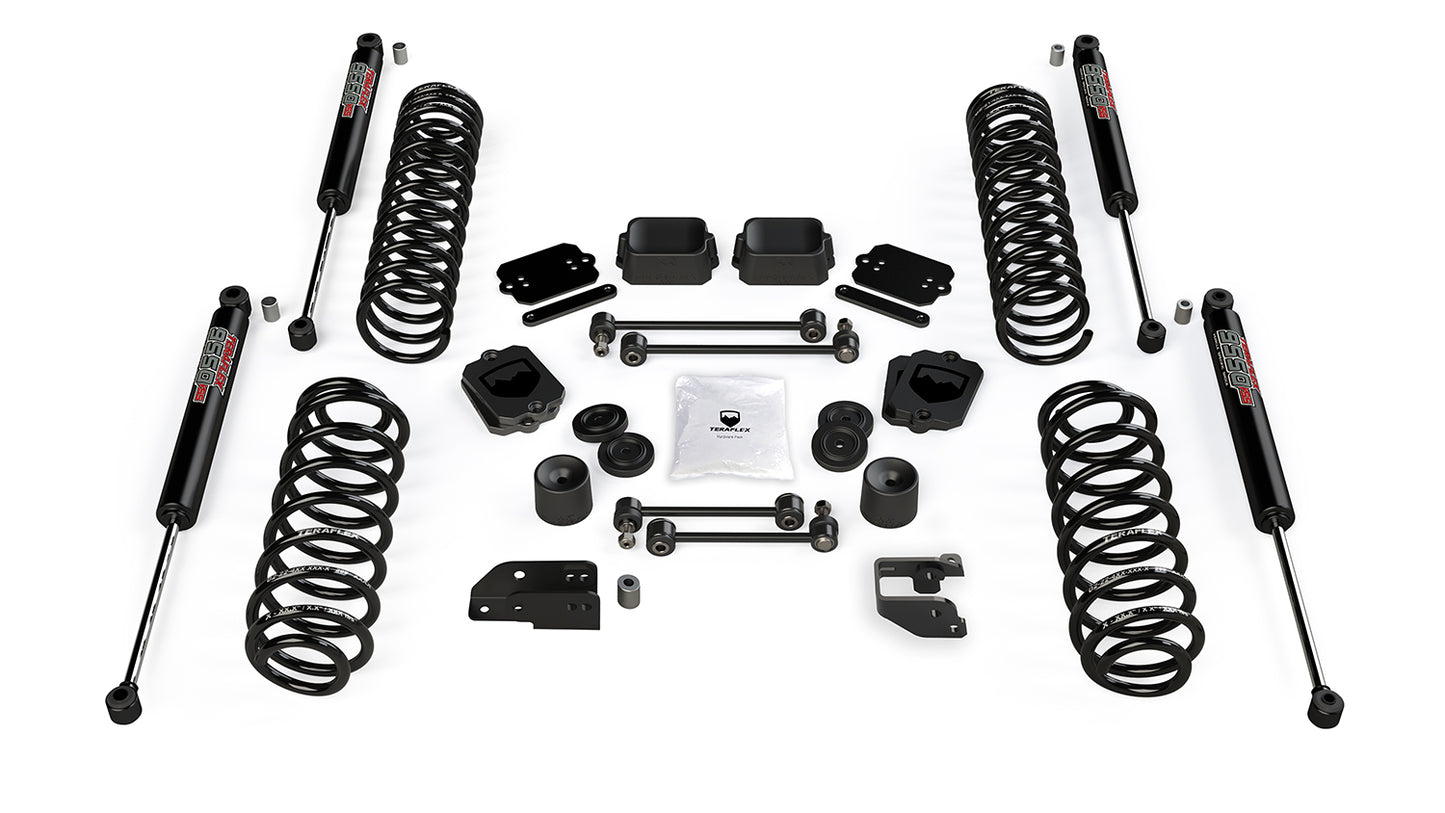

📦 What’s Included (What’s in the Box)
- Front Components
- 3.5" front lift coil springs (PN 1863000)
- Front track bar axle bracket – 2.5–3.5" lift (PN 1953250)
- 2" front bump stop strike pad extension kit (PN 1959500)
- 0.5" front bump stop strike pad shim kit (PN 1959300)
- 10.75" front sway bar link kit (PN 744500)
- Rear Components
- 3.5" rear lift coil springs (PN 1863100)
- Rear track bar axle bracket – 2.5–4.5" lift (PN 1953600)
- 2" rear bump stop strike pad extension kit (PN 1959500)
- 0.5" rear bump stop strike pad shim kit (PN 1959300)
- 11.5" rear sway bar link kit with swivel stud (PN 1764300)
- Shocks
- 9550 VSS Twin-Tube Shock Kit – 3.5–4.5" lift (PN 1545350)
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by TeraFlex.
⚠️ Fitment Notes
- Jeep Wrangler Unlimited JL (4-Door)
⚠️ Fitment Notes
- This is a base lift kit and does not fully correct suspension geometry by itself. Additional control arms and adjustable track bars are required for optimal drivability. Professional installation and alignment are strongly recommended.
