🧾 Overview
The TeraFlex 2.5" Coil Spring Base Lift Kit for the Jeep Wrangler JK Unlimited (4-Door) is engineered to increase ground clearance and off-road capability while preserving factory ride quality and drivability. Designed around properly developed suspension geometry, roll center correction, and load tuning, this system allows larger tires to be fitted without compromising stability or on-road handling.
This no-shock version of the kit is ideal for Jeep owners who plan to reuse existing shocks or upgrade separately. By excluding shocks and shock extensions, the kit provides a solid foundation for a custom suspension setup while maintaining full compatibility with factory stability control systems.
✔ 2.5" suspension lift for increased clearance
✔ Engineered to retain factory drivability and stability control
✔ Coil-spring-based lift with proper geometry correction
✔ Designed for custom shock selection
✔ Supports larger tires with proper setup
🛠 Installation
- Bolt-on installation using factory mounting locations. No cutting or welding required. Professional alignment is required after installation to ensure proper suspension geometry and handling.
📌 Specs
- Key Features & Benefits
- 2.5" lift coil springs increase ground clearance and articulation
- Suspension geometry tuned to maintain factory handling characteristics
- Rear track bar axle bracket improves axle centering
- Extended sway bar links and brake line relocation maintain proper suspension travel
- Bump stop extensions protect suspension components at full compression
- Allows flexibility to pair with Falcon or TeraFlex 9550 shocks
📘 Specifications
- Brand: TeraFlex
- Lift Height: 2.5 inches
- Shock Compatibility: Not included (Falcon or TeraFlex 9550 recommended)
- Vehicle Configuration: 4-Door (Unlimited)
- Sold As: Base lift kit

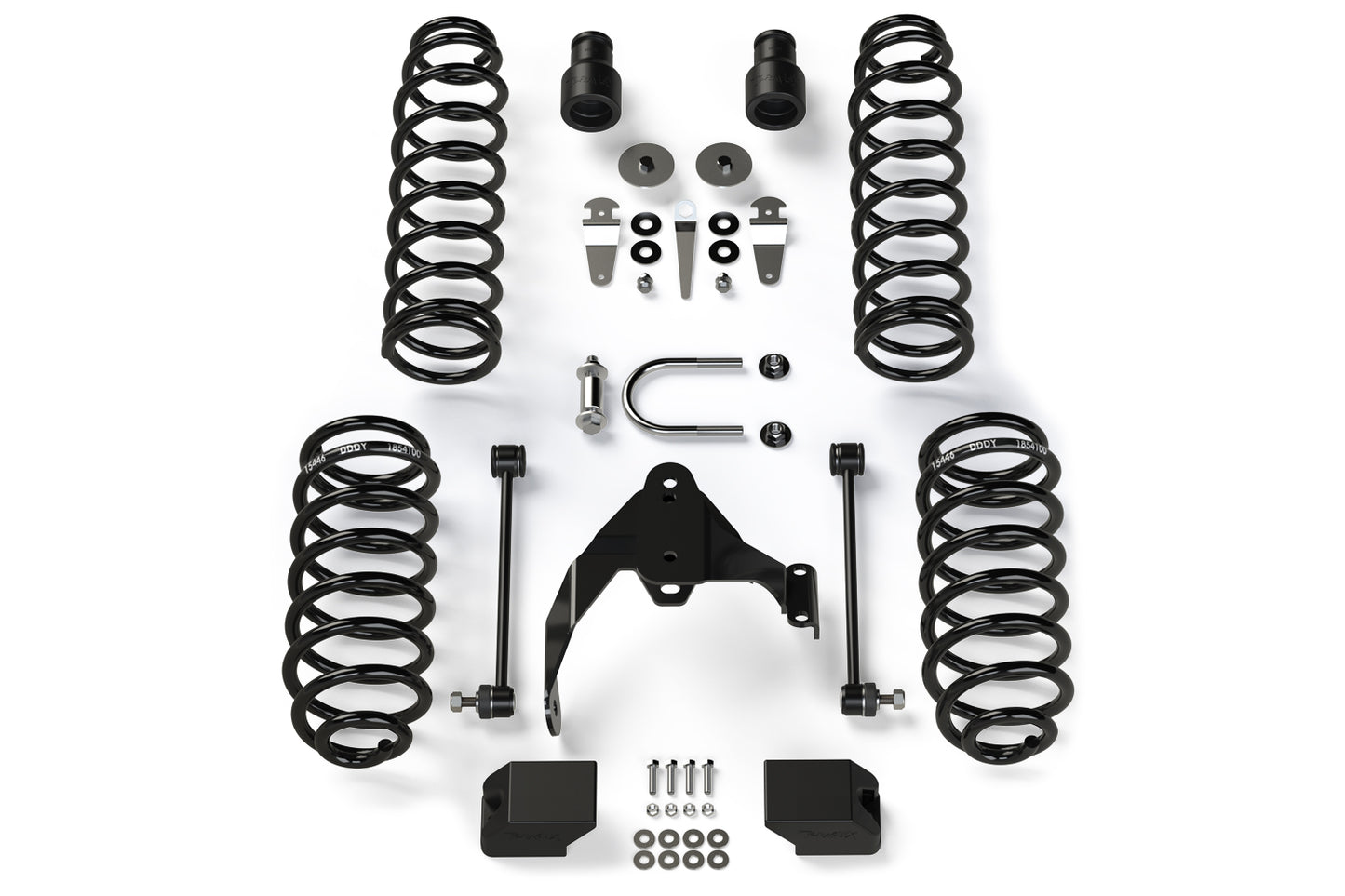

📦 What’s Included (What’s in the Box)
- 2.5" lift coil spring kit
- Front coil springs (JKU Front – #1853102)
- Rear coil springs (JKU Rear – #1854102)
- Rear track bar axle bracket kit (2.5" lift) (#1954776)
- Front upper bump stop extension kit – 2.75" (#1953800)
- Rear lower bump stop strike pad kit – 2.75" (#1954700)
- Rear sway bar link kit – 10.75" (2.5" lift) (#1744500)
- Rear lower coil spring retainers (#4954300)
- Rear brake line relocation kit (#4304400)
- All required mounting hardware
- Not Included:
- Shock absorbers
- Shock extensions
- Falcon Performance shocks
- TeraFlex 9550 VSS Twin-Tube shocks
- Wheels and tires
🛡 Warranty
- Manufacturer-backed warranty provided by TeraFlex.
⚠️ Fitment Notes
- Jeep Wrangler JK Unlimited (4-Door)
⚠️ Fitment Notes
- Does not include shocks or shock extensions. Designed specifically for JK Unlimited (4-Door) models. Professional alignment is required after installation. Tire fitment depends on wheel offset and backspacing.
