🧾 Overview

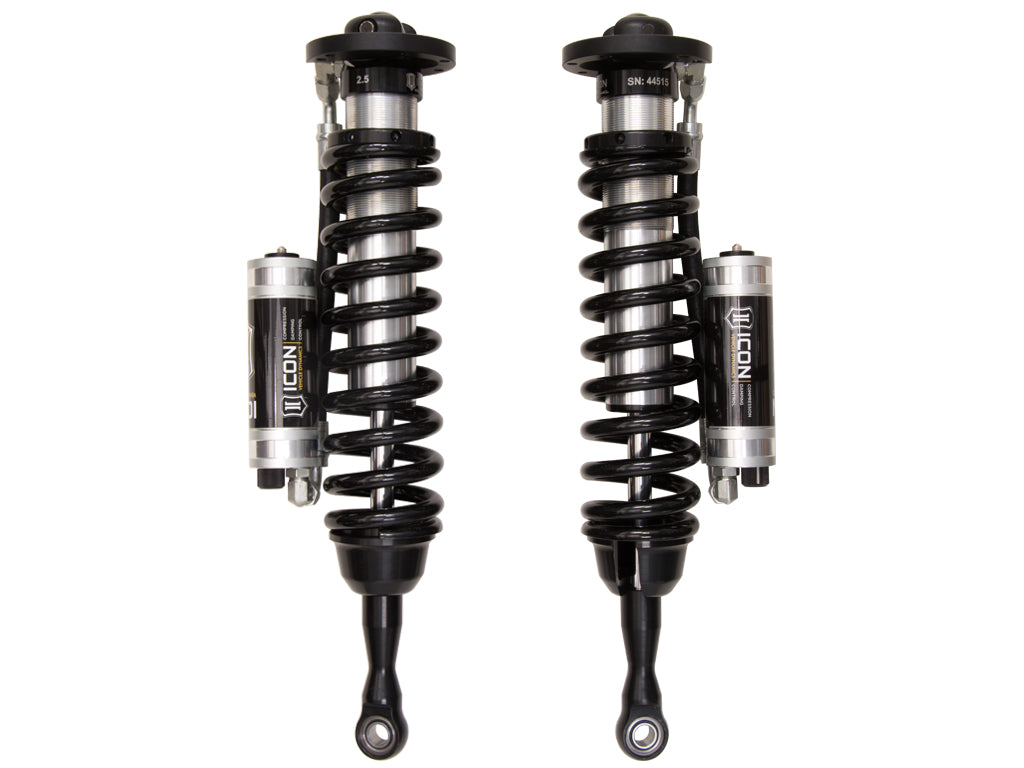

The ICON V.S. 2.5 Remote Reservoir Coilover Kit with CDCV is a premium front suspension upgrade for 2008-Up Toyota Land Cruiser 200 Series models. Designed with vehicle-specific valving, it delivers improved ride control on-road and increased confidence off-road while supporting larger wheel and tire combinations.
With 0–3” of adjustable lift, a 2.5” shock body, and remote reservoirs for improved cooling, this system provides increased damping capability and consistent performance under heavy use. The included CDC Valve allows external compression adjustment with 10 settings from soft to firm for precise ride tuning.
✔ Adjustable 0–3” front lift
✔ Remote reservoir for improved cooling performance
✔ 10-position external CDCV compression adjustment
✔ Vehicle-specific tuned valving
✔ 100% bolt-on installation
🛠 Installation
- Direct bolt-on installation using factory mounting locations.
- Ride height must be set prior to final torque.
- Alignment required after installation.
📌 Specs
- Key Features & Benefits
- 2.5” Shock Body – Increased oil capacity and improved damping precision
- Remote Reservoir Design – Maintains cooler operating temperatures under heavy use
- CDCV Equipped – 10-position external compression adjustment
- Vehicle-Specific Valving – Tuned for Land Cruiser 200 platform
- Increased Wheel Travel – Improved articulation over stock
- 6061 CNC Machined Aluminum Components – Strength and corrosion resistance
- CAD Plated Shock Body – Long-term durability
- 7/8” Induction Hardened Shaft – Strength under aggressive use
- FK Rod End Bearings – Reduced deflection and extended service life
- Fully Bolt-On Installation – No drilling or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5
- Shock Type: Remote Reservoir Coilover with CDCV
- Position: Front
- Lift Height: 0–3” Adjustable
- Shock Body Diameter: 2.5”
- Shaft Diameter: 7/8”
- Compression Adjustment: 10-Position CDC Valve
- Serviceable: Yes – Rebuildable & Revalveable
- Installation Type: Bolt-On
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components
- (2) ICON V.S. 2.5 Remote Reservoir Front Coilovers with CDCV
- Pre-installed coil springs
- Mounting Components
- Reservoir mounting brackets
- Application-specific mounting hardware
- If you provide the exact ICON part number, I will verify hardware, clamps, and included tools for 100% box accuracy.
🛡 Warranty
- Limited 5-Year Manufacturer Warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Toyota Land Cruiser 200 Series (2008–Up)
⚠️ Fitment Notes
- Designed for 200 Series Land Cruiser models only.
- Lift height settings are based on stock-equipped vehicles.
- Larger wheel and tire combinations may require trimming or additional modifications.
