🧾 Overview

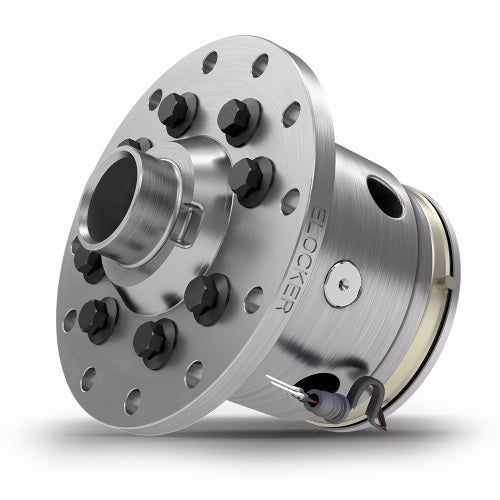

The Eaton ELocker® Electronic Locking Differential for Dana 30 front axles delivers instant, on-demand traction with the push of a button while maintaining smooth, predictable drivability when unlocked. Designed for rock crawling, trail use, towing, and work applications, the ELocker allows drivers to lock the front differential only when traction is needed—then return to open differential operation for normal driving.
When engaged, the ELocker provides a true 100% mechanical lock, forcing both axle shafts to rotate together for maximum traction in low-traction environments. When disengaged, it functions as a standard open differential, preserving steering control, tire wear, and drivetrain longevity.
Unlike air-actuated lockers, the Eaton ELocker uses a fully electronic actuation system, eliminating compressors, air lines, and solenoids. This makes it a clean, reliable solution for Dana 30-equipped vehicles running 3.73 and higher gear ratios.
✔ Push-button electronic locking
✔ No air system required
✔ Ideal for front-axle traction without sacrificing street manners
🛠 Installation
- Professional installation recommended
- Requires differential setup, bearing installation, and gear pattern adjustment
- Required bearings and components (not included):
- Bearing: LM102949
- Race: LM102911
- Outboard shims
- Wiring required for electronic locker activation switch
📌 Specs
- Key Features & Benefits
- Electronic, switch-activated locking differential
- Provides full 100% front axle lock when engaged
- Functions as an open differential when disengaged
- No compressors, airlines, or pneumatic components
- Designed for Dana 30 front axles with 3.73+ ratios
- Excellent balance of trail capability and road control
- 📐 Specifications
- Differential Type: Electronic Locking
- Axle Compatibility: Dana 30
- Axle Position: Front
- Spline Count: 27-Spline
- Axle Shaft Diameter: 1.16 in
- Ring Gear Size: 7.2 in
- Gear Ratio Compatibility: 3.73 & Up
- Product Weight: 18.5 lb
- 📦 What’s Included
- Eaton ELocker® electronic locking differential
- Internal electronic locking mechanism
- Required internal hardware
- 🛡 Warranty
- Manufacturer-backed warranty
- Warranty coverage provided by Eaton
⚠️ Fitment Notes
- Fits Dana 30 front axles only
- Requires 3.73 or numerically higher gear ratios
- Bearing and shim components required for installation (not included)
- Professional installation strongly recommended
- 🚙 Vehicle Fitment
- Ford
- 1967–1972 Ford Half-Ton Trucks, Vans & SUVs — Dana 30 Front
- Jeep
- 1971–2006 Jeep Cherokee, Grand Cherokee, Liberty, Scrambler, Wagoneer, Wrangler — Dana 30 Front
- 2007–2018 Jeep Wrangler JK — Dana 30 Front
- International Harvester
- 1967–1977 Scout I & II, Traveler, Metro Van, 4x4 Half-Ton Pickups — Dana 30 Front
