ICON Vehicle Dynamics
ICON 2022-2024 Toyota Tundra, 6" Lift, Stage 2 Suspension System, Tubular
$5,796.50
In Stock
Pre-Order
Sold out
CODE: K53272T
1-4 BUSINESS DAYS DELIVERY
SECURE CHECKOUT
EASY RETURNS
- Description
- Shipping and Refund
- Reviews
Features & Benefits
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundra's
- Adjustable front ride heights from 5-6? of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625? Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- TECH NOTE: Requires minimum of 20" diameter wheels
- TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
- TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
- TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
- TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.

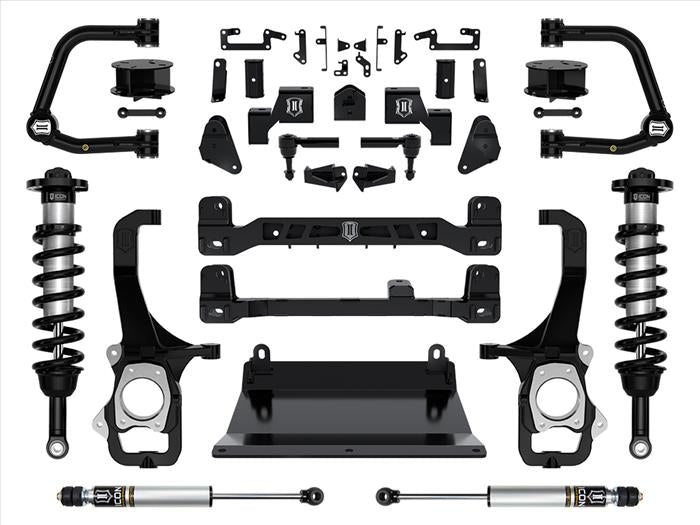

System Components:
- 51010 (QTY: 1) | 22-24 TUNDRA FRONT BOX KIT 1
- 51011 (QTY: 1) | 22-24 TUNDRA FRONT BOX KIT 2
- 51012 (QTY: 1) | 22-24 TUNDRA REAR BOX KIT
- 51014 (QTY: 1) | 22-24 TUNDRA FRONT SKID PLATE
- 58672 (QTY: 1) | 22-24 TUNDRA 2.5 VS IR 6" COILOVER KIT
- 51016 (QTY: 1) | 22-24 TUNDRA REAR COIL SPACER KIT
- 51017 (QTY: 1) | 22-24 TUNDRA FRONT SKID PLATE
- 56517 (QTY: 2) | 22-24 TUNDRA 3.5" REAR 2.0 VS IR
- 58461DJ (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA TUBULAR UCA DJ PRO KIT
